BIOS Setup - 62 -
AMI SIO Driver Version
Display the AMI SIO driver version information.
Super IO Chip Logical Device(s) Conguration
[*Active*] Serial Port 1/2
Press [Enter] for confuguration of advanced items.
[*Active*] PS2 Keyboard
Press [Enter] for confuguration of advanced items.

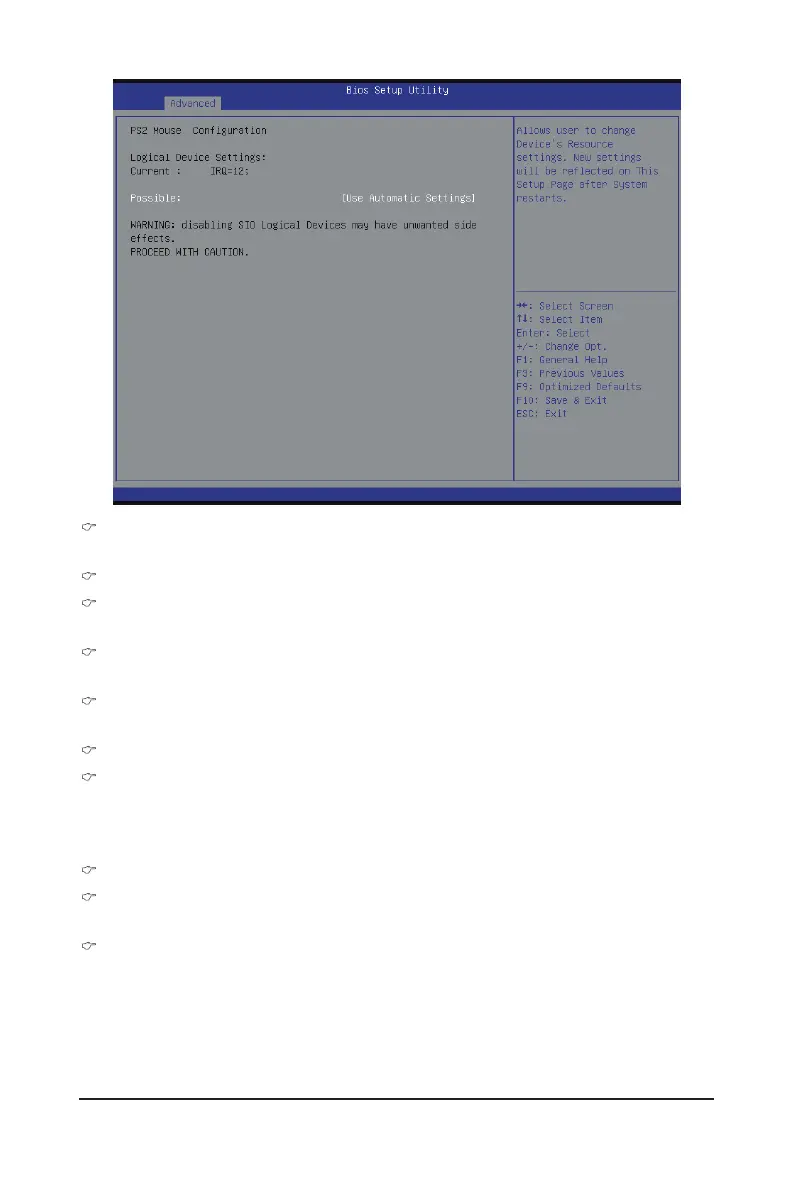

[*Active*] PS2 Mouse
Press [Enter] for confuguration of advanced items.
Serial Port 1 Conguration
Use This Device
 Whenenabledallowsyoutoconguretheserialport1settings.WhensettoDisabled,displaysno
 congurationfortheserialport.
Options available: Enabled/Disabled. Default setting is Enabled.
Logical Device Settings:
Current:
Display the Serial Port 1 base I/O addressand IRQ.
Possible:
 CongureSerialPort1baseI/OaddressandIRQ.
Option available:
Use Automatic Settings
IO=3F8h; IRQ=4; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
