9 ) PWR_LED

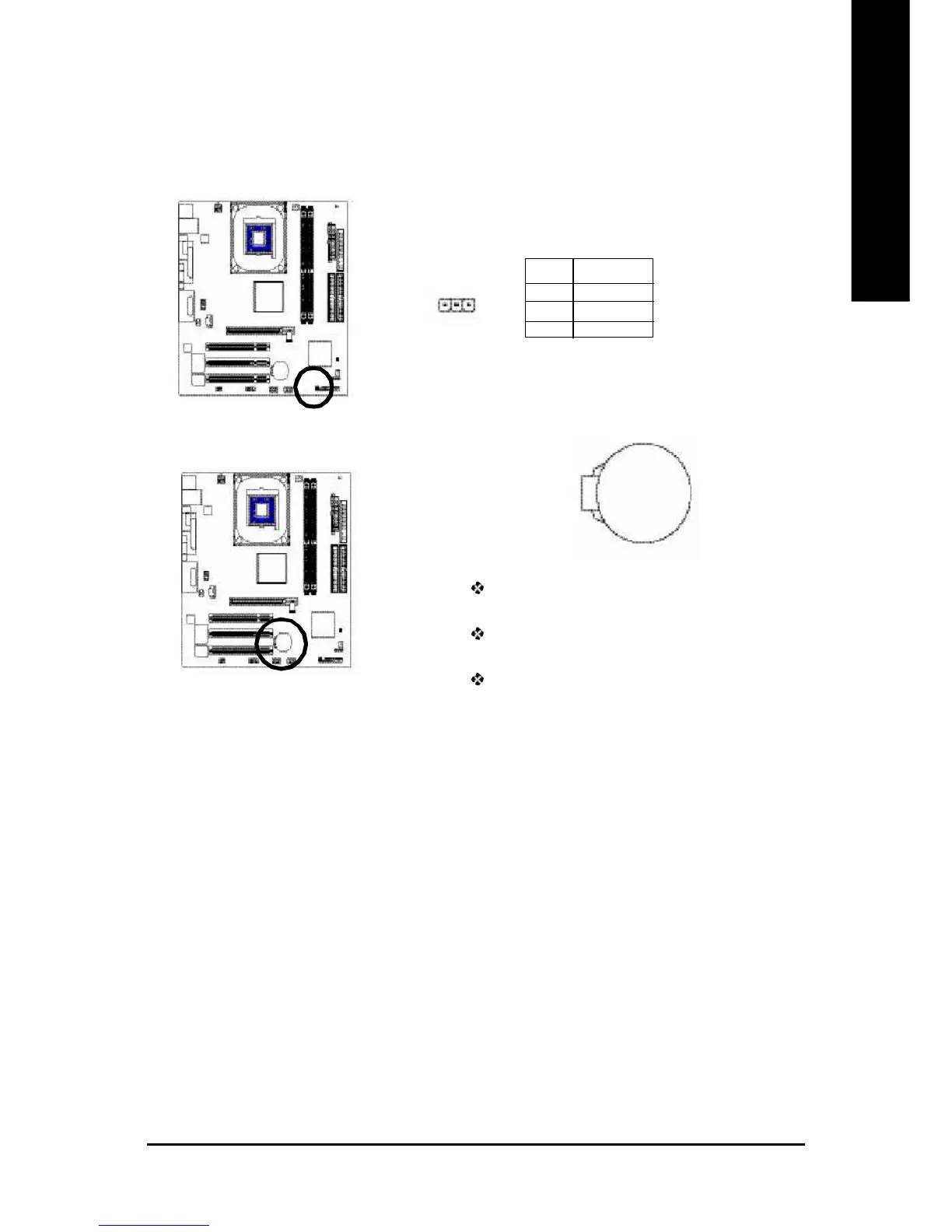

PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode. If you use dual color LED, power LED will turn to
another color.
1
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
10) BAT (Battery)
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the sam e or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer's instructions.
If you want to erase CMOS...
1. Turn OFF the computer and unplug the power cord.
2. Rem ove the battery, wait for 30 second.
3. Re-install the battery.
4. Plug the power cord and turn ON the computer.
