System Hardware Installation - 32 -
For GPU6/GPU7/GPU8/GPU9/GPU10/GPU11/GPU12

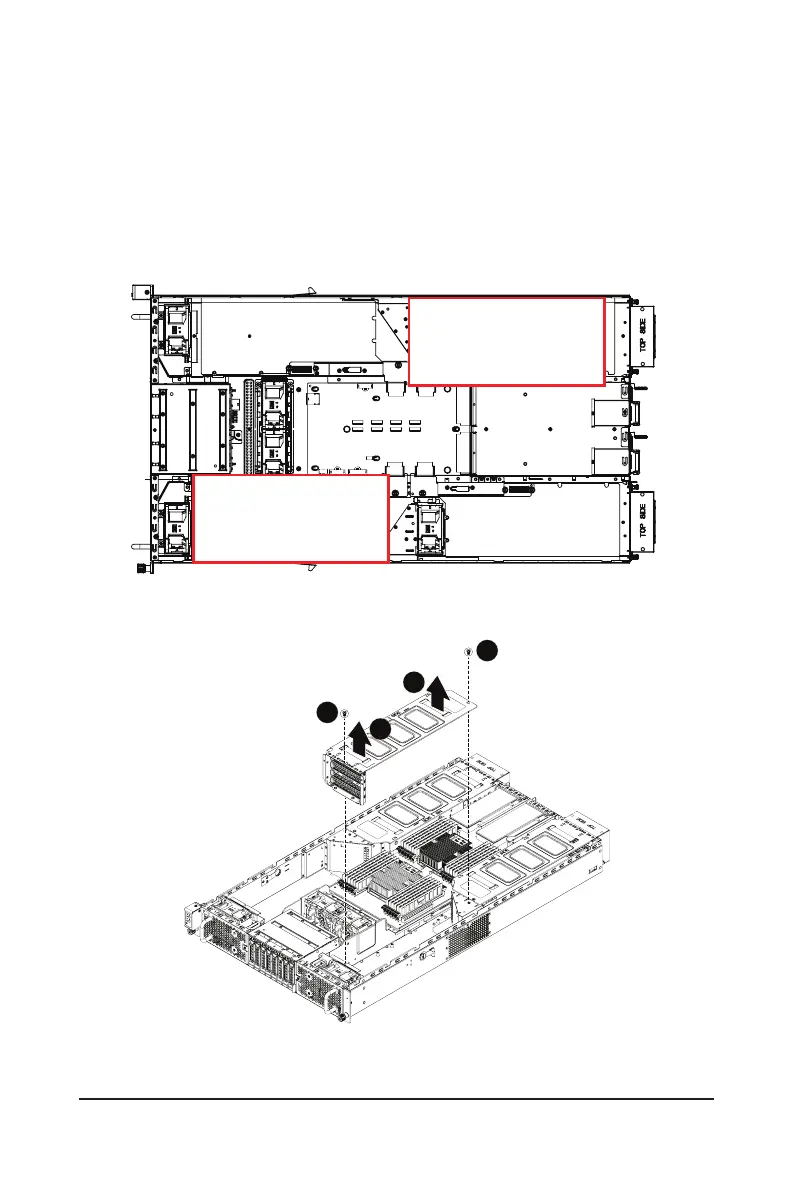

Follow these instructions to install the GPU card:
1. [For GPU9/GPU10/GPU11/GPU12] Loosen and remove the two screws securing the PCI cage at
the top of the system.
[For GPU5/GPU6/GPU7/GPU8] Loosen and remove the single screw at the top of the system and
the two screws at the rear of the system securing the PCI cage.
Pull the two plastic handles to lift up the PCI cage from the system.
2. Insert the card into the selected slot. Make sure that the card is properly seated.
3. Secure the GPU cards in place with two screws.
Front Rear
Top to Bottom:
GPU Card #6 (Slot 2)
GPU Card #8 (Slot 4)
GPU Card #7 (Slot 3)
GPU Card #5 (Slot 1)
Top to Bottom:
GPU Card #10 (Slot 2)
GPU Card #12 (Slot 4)
GPU Card #11 (Slot 3)
GPU Card #9 (Slot 1)
(For GPU9/GPU10/GPU11/GPU12)
2
1
2
To Next Page
