GA-E7AUM-DS2H Motherboard - 34 -

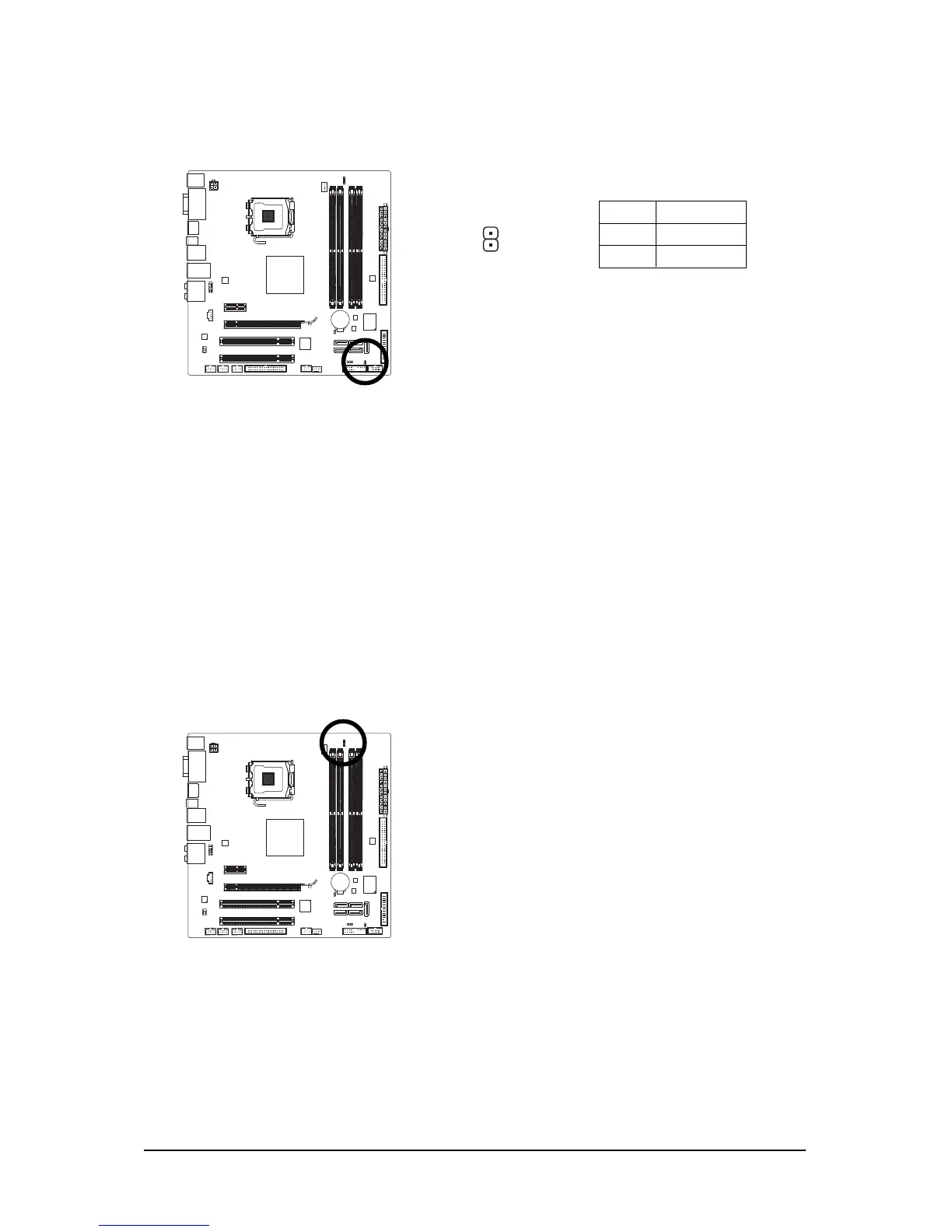

19) CI (Chassis Intrusion Header)
This motherboard provides a chassis detection feature that detects if the chassis cover has been
removed. This function requires a chassis with chassis intrusion detection design.
Pin No. Definition
1 Signal
2 GND
1
20) PHASE LED
The number of lighted LEDs indicates the CPU loading. The higher the CPU loading, the more the
number of lighted LEDs. To enable the Phase LED display function, please first enable Dynamic
Energy Saver Advanced. Refer to Chapter 4, "Dynamic Energy Saver Advanced," for more details.
