Gigabyte GA-X79-UP4 User Manual

- 18 -
Hardware Installation
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

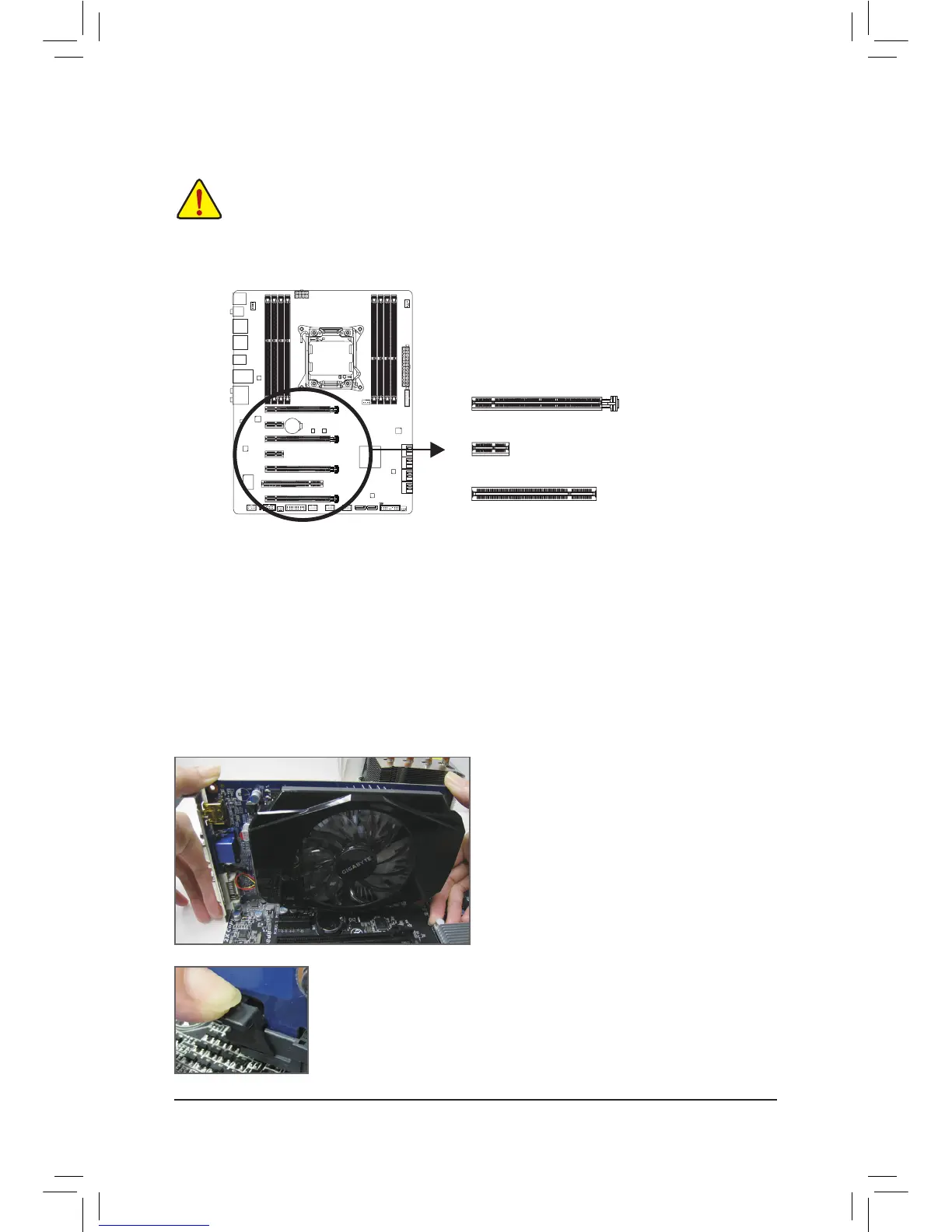

PCI Express x1 Slot
PCI Express x16 Slot
PCI Slot
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. Afterinstallingallexpansioncards,replacethechassiscover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your
expansioncard(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express Graphics Card:
• Installing a Graphics Card:
Gently push down on the top edge of the card until
it is fully inserted into the PCI Express slot. Make
sure the card is securely seated in the slot and
does not rock.
• Removing the Card:
Gently push back on the lever on the slot and then lift the card straight out from
the slot.

Gigabyte GA-X79-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA III connectors	6
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Component for	PC
Motherboard chipset	Intel X79
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA II, SATA III
On-board graphics card	No
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0

Weight and Dimensions

Depth	305 mm
Width	244 mm
