Gigabyte MZ33-AR0 User Manual

- 13 -
Hardware Installation
1-4 Installing and Removing Memory
Read the following guidelines before you begin to install the memory:
•
Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
•
Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•
Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
1-4-1 12-Channel Memory Conguration

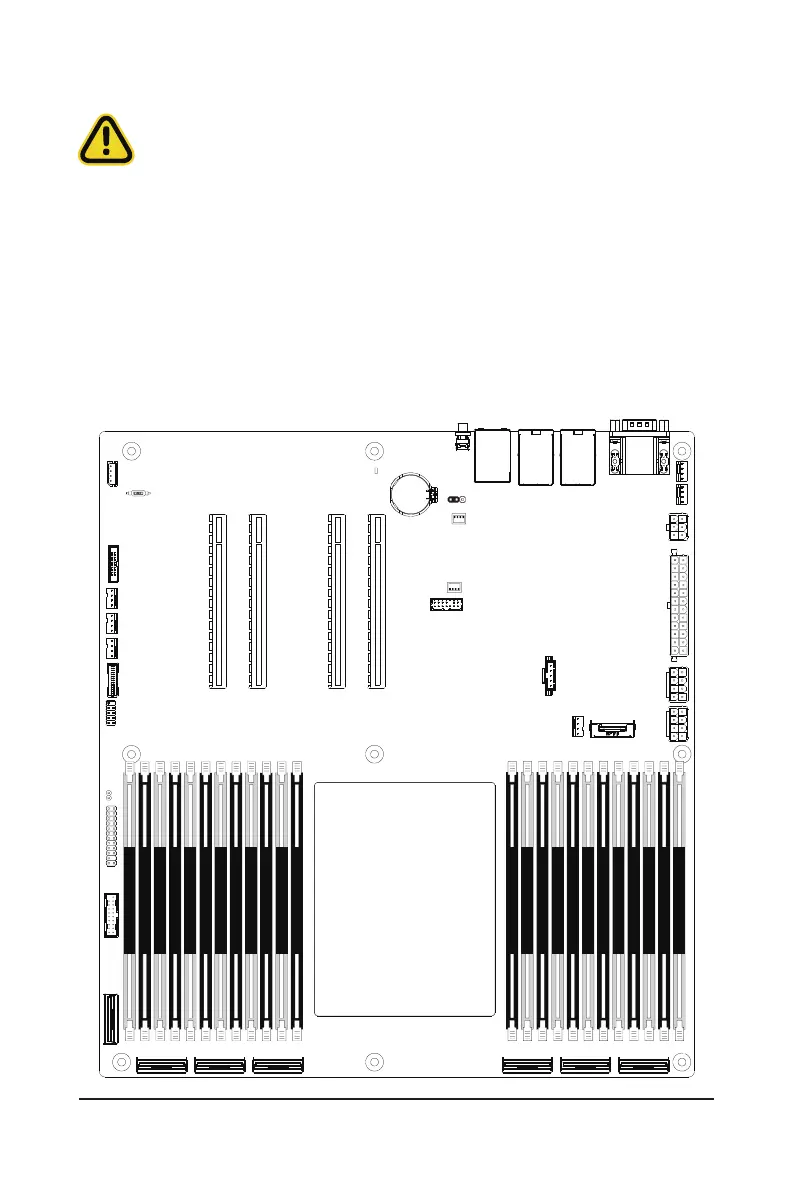

This motherboard provides 24 DDR5 memory slots and supports 12-Channel Technology. After the memory
isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.
21
CPU0
DIMM_P0_A1 DIMM_P0_D1 DIMM_P0_C0 DIMM_P0_C1 DIMM_P0_B0 DIMM_P0_B1 DIMM_P0_A0 DIMM_P0_D0 DIMM_P0_E1 DIMM_P0_E0 DIMM_P0_F1 DIMM_P0_F0 DIMM_P0_G0 DIMM_P0_G1 DIMM_P0_K0 DIMM_P0_K1 DIMM_P0_J0 DIMM_P0_J1 DIMM_P0_I0 DIMM_P0_I1 DIMM_P0_H0 DIMM_P0_H1 DIMM_P0_L0 DIMM_P0_L1
