BIOS Setup
- 44 -
2-2-7

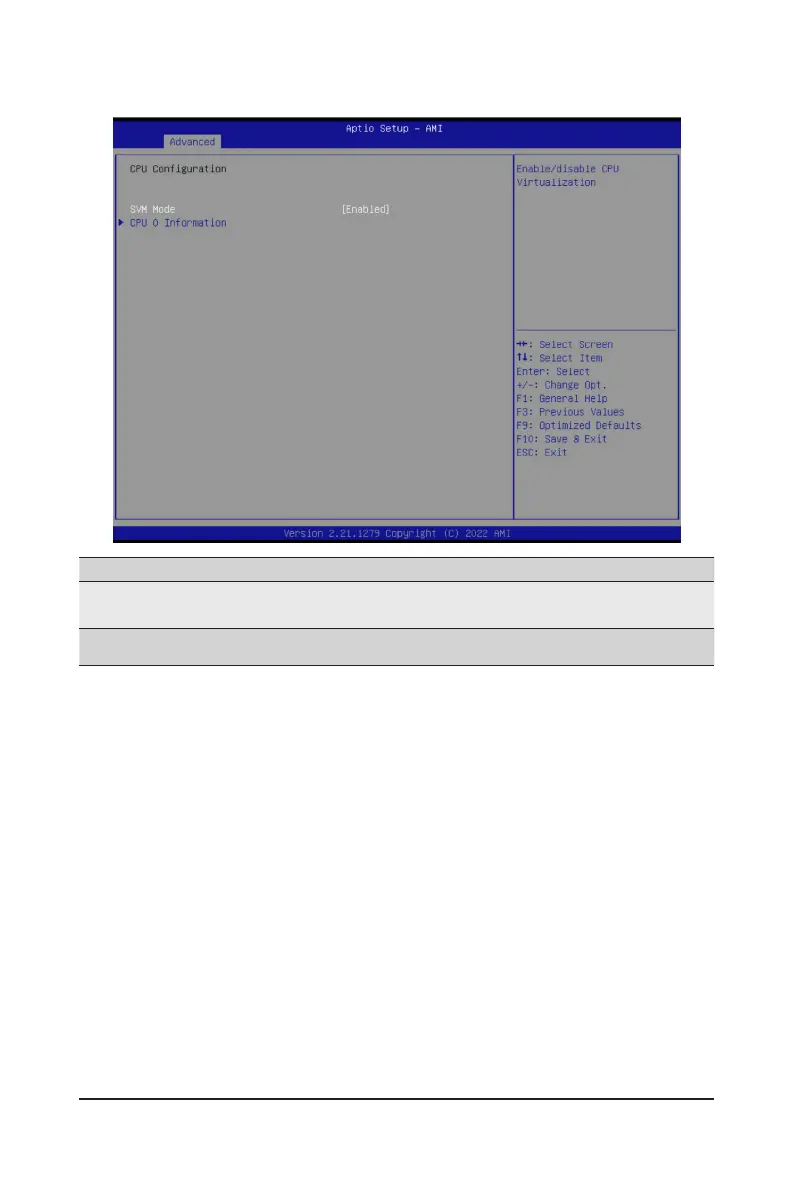

CPU Conguration
Parameter
Description
SVM Mode
Enable/Disable the CPU Virtualization.
Options available: Disabled, Enabled. Default setting is
Enabled
.
CPU 0 Information
Press [Enter] to view the memory information related to CPU 0.
43
45
