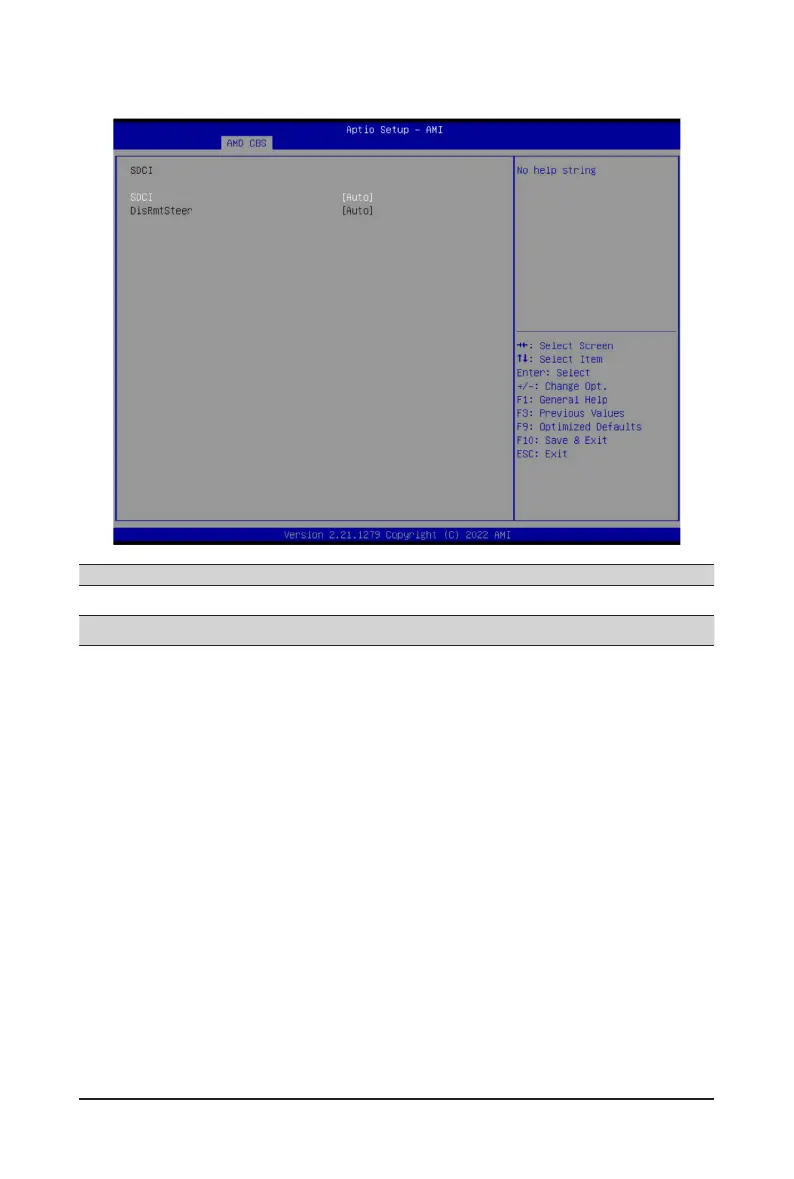

BIOS Setup
- 78 -
2-3-2-4
SDCI
Parameter
Description
SDCI
(Note)
Options available: Disabled, Enabled,
Auto. Default setting is
Auto
.
DisRmSteer
Options available: Disabled, Enabled,
Auto. Default setting is
Auto
.
(Note)
Advanceditemspromptwhenthisitemisdened.
77
79
Table of Contents
default chapter
3
Table of Contents
3
MZ33-AR0 Motherboard Layout
5
Block Diagram
7
Chapter 1 Hardware Installation
8
Installation Precautions
8
Product Specifications
9
Installing and Removing the CPU and Heat Sink
12
Installing and Removing Memory
13
12-Channel Memory Configuration
13
Installing and Removing the Memory Module
14
Processor and Memory Module Matrix Table
14
Memory Population Table
15
Installing and Removing the M.2 SSD Module
16
Back Panel Connectors
17
Internal Connectors
18
Jumper Settings
26
Chapter 2 BIOS Setup
27
The Main Menu
29
Advanced Menu
32
Trusted Computing
34
PSP Firmware Versions
35
Legacy Video Select
36
Ast2600 Super Io Configuration
37
S5 RTC Wake Settings
39
Serial Port Console Redirection
40
Cpu Configuration
44
PCI Subsystem Settings
45
Usb Configuration
47
Network Stack Configuration
49
Nvme Configuration
50
Sata Configuration
51
Graphic Output Configuration
52
Amd Mem Configuration Status
53
Tls Auth Configuration
54
Ram Disk Configuration
55
Iscsi Configuration
56
Broadcom BCM57416 10GBASE-T Network Connection
57
Vlan Configuration
63
Mac Ipv4 Network Configuration
64
Mac Ipv6 Network Configuration
65
AMD CBS Menu
66
CPU Common Options
68
DF Common Options
73
UMC Common Options
79
NBIO Common Options
99
FCH Common Options
109
NTB Common Options
118
SOC Miscellaneous Control
119
Workload Tuning
121
CXL Common Options
122
AMD PBS Menu
123
Ras
124
Chipset Setup Menu
126
North Bridge
127
Fabric Resource
129
Server Management Menu
130
System Event Log
132
View FRU Information
133
Bmc Network Configuration
134
Ipv6 Bmc Network Configuration
135
Security Menu
136
Secure Boot
137
Boot Menu
139
Save & Exit Menu
141
BIOS Recovery
142
BIOS POST Beep Code (AMI Standard)
143
PEI Beep Codes
143
DXE Beep Codes
143
4
