Gigabyte R181-2A0 User Manual

Hardware Installation -16-

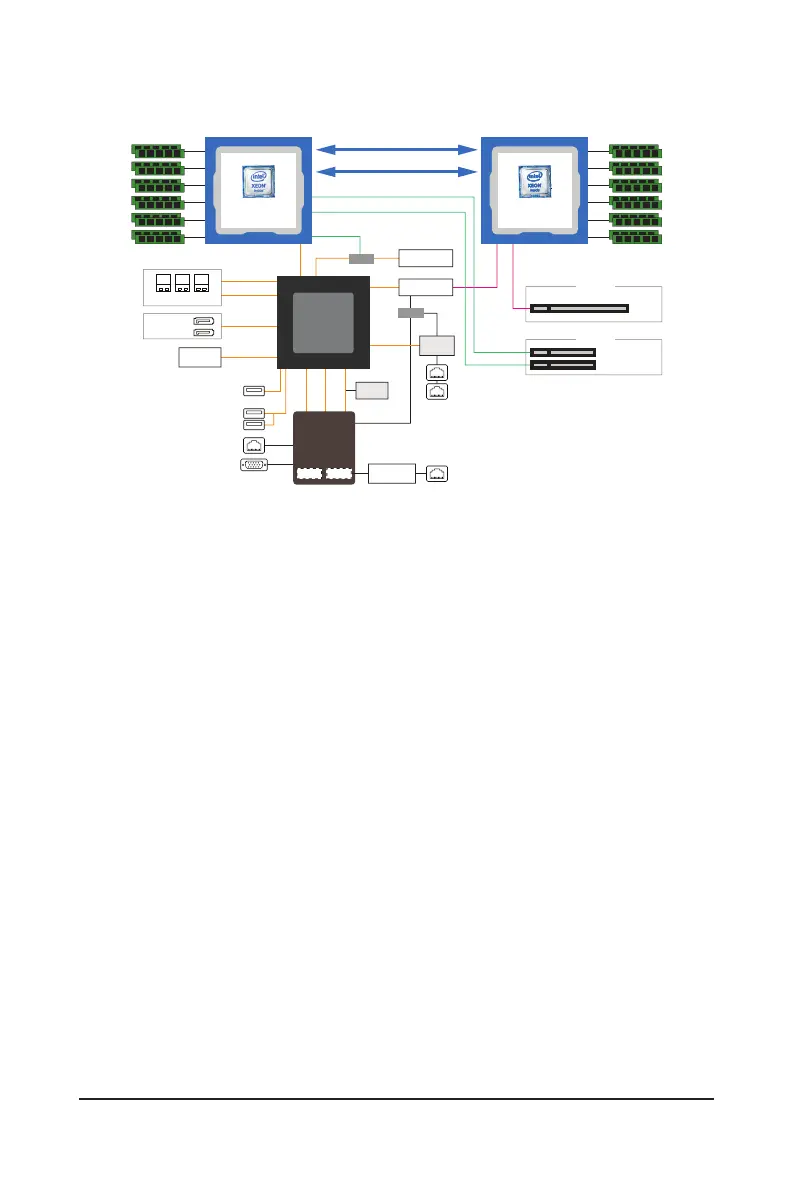

1-3 System Block Diagram
Uplink x16
KR x4
PCIe3.0 x1
LPC
6 Channels
DDR4
6 Channels
DDR4
2666/2400/2133 MHz
DMI3 x 4
UPI 10.4GT/s
2666/2400/2133 MHz
UPI 10.4GT/s
2A~2D
PCIe3.0 x 1
PCIe3.0
x 8
PCIe3.0
x 8
PCIe3.0
x 16
PCIe3.0
x
16
PCIe3.0
x
16
1 x COM (Rear)
Front 1x USB 3.0
Rear 2 x USB 3.0
1 x VGA
1 x LAN
(for Management)
NCSI
2 x USB 2.0
OCP1 mezz.
TPM
i350
PCH
Intel C621
Lewisburg
SW_RAID
For VROC
2 x SSATAIII
(SSATA DOM)
ASPEED
AST2500
10/100/1G
PHY(1ch)
MACBMC
PCIe x8
PCIe x8
CRS1021
PCIe x16
CRS1015
OCP2 mezz.
Skylake-SP
LGA 3647
Socket P0
CPU0
Skylake-SP
LGA 3647
Socket P0
CPU1
Switch
Switch
2 x 1Gb/s LAN
8 x SATAIII
3 x SlimLine SAS
2 x SSATAIII
4 x SSATAIII

Gigabyte R181-2A0 Specifications

General

Brand	Gigabyte
Model	R181-2A0
Category	Server
Language	English
