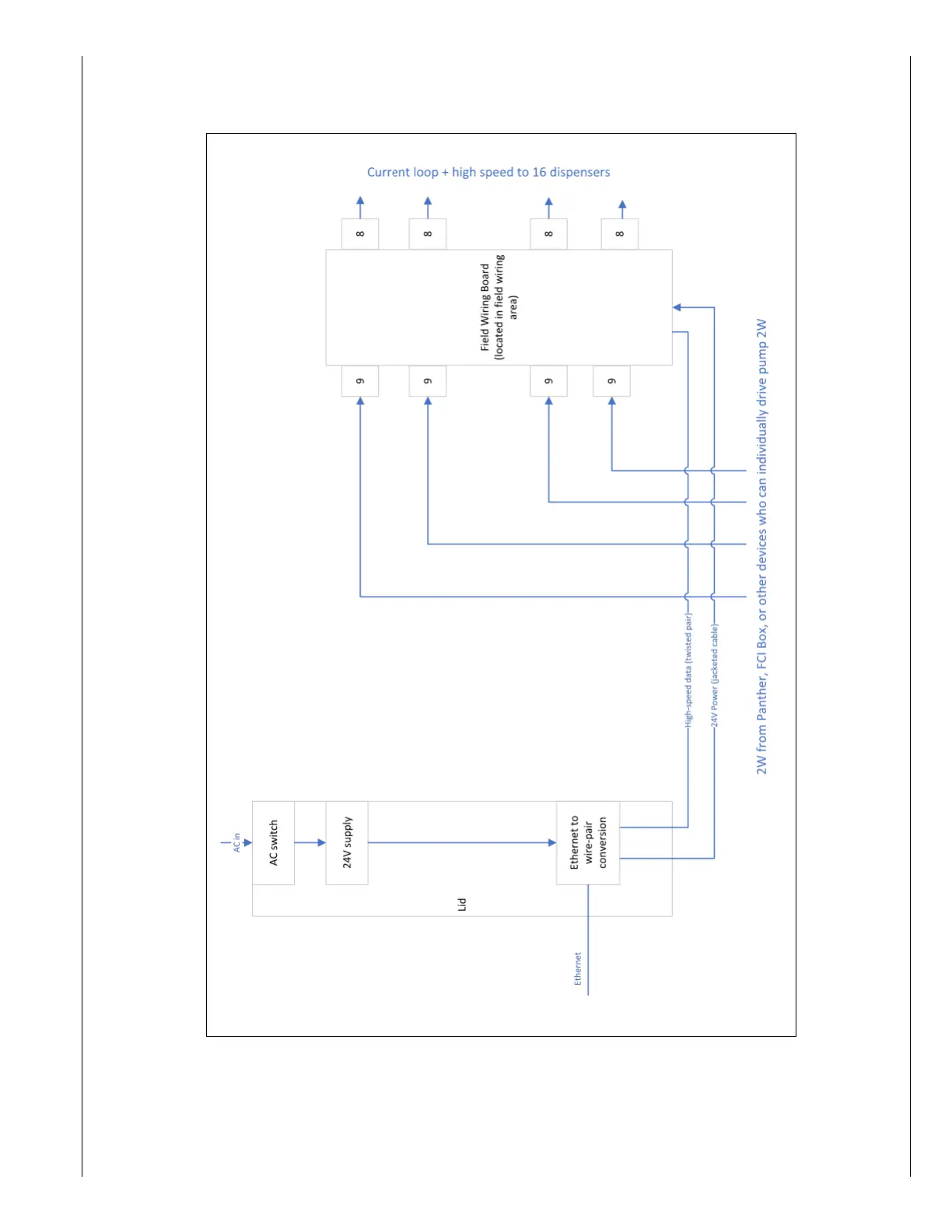

Appendix A: BRCM2.x Communication Diagram
MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 37
The pass-through configuration is used if an external current loop source is used. This configuration is suitable for some non-Passport sites.
Figure 37: Pass-through Example (PA0422 series)
