Gilera Nexus 250 i.e. - Brake Light and License Plate Light

03_36

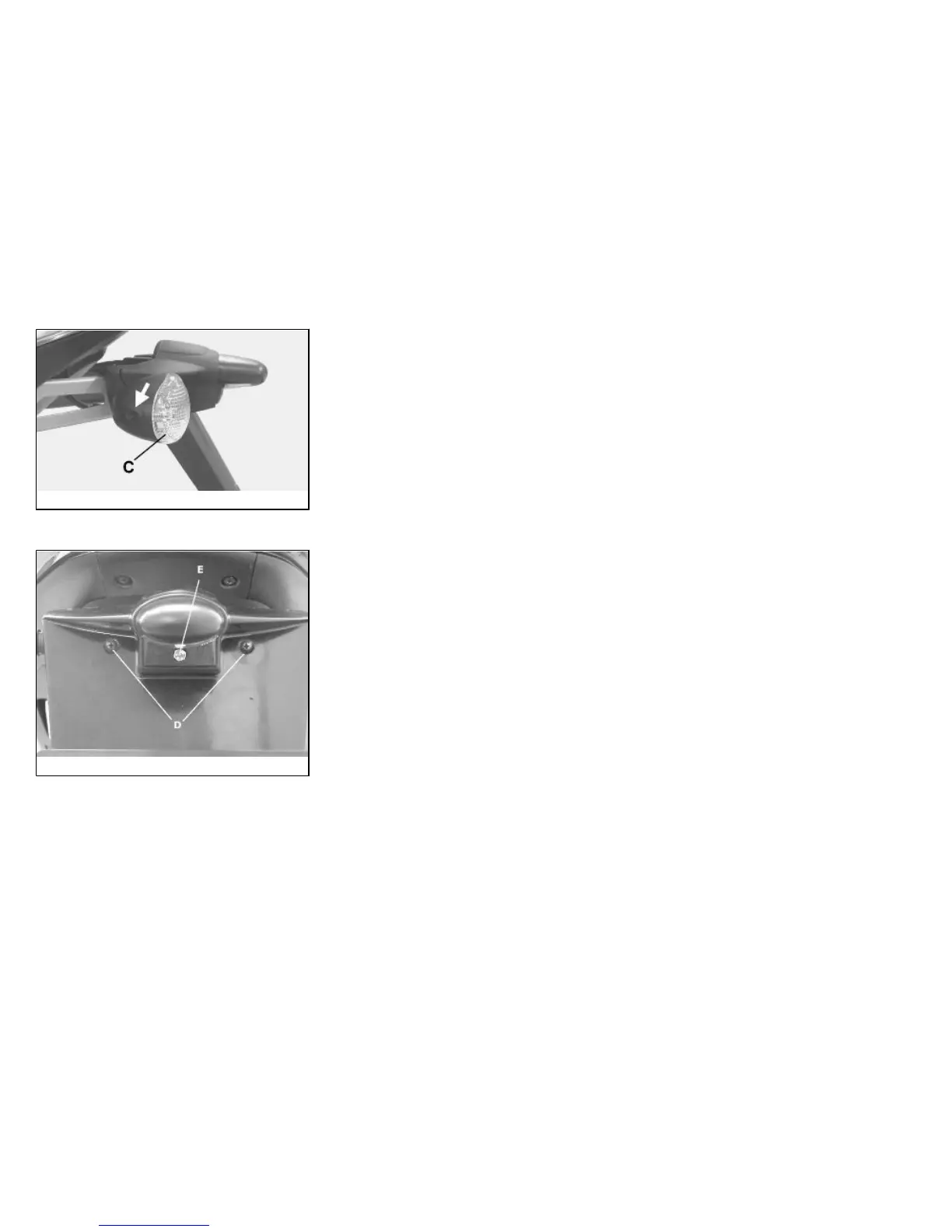

Rearturnindicators (03_36)
Operate the screw indicated in the figure and remove glass C.
03_37
Numberplatelight (03_37)
Loosen the two screws «D», remove the plastic cover behind the mudguard. Remove
screw «E» from behind the mudguard. Remove the bulb socket.
71
3 Maintenance
