03_26
03_27
03_28

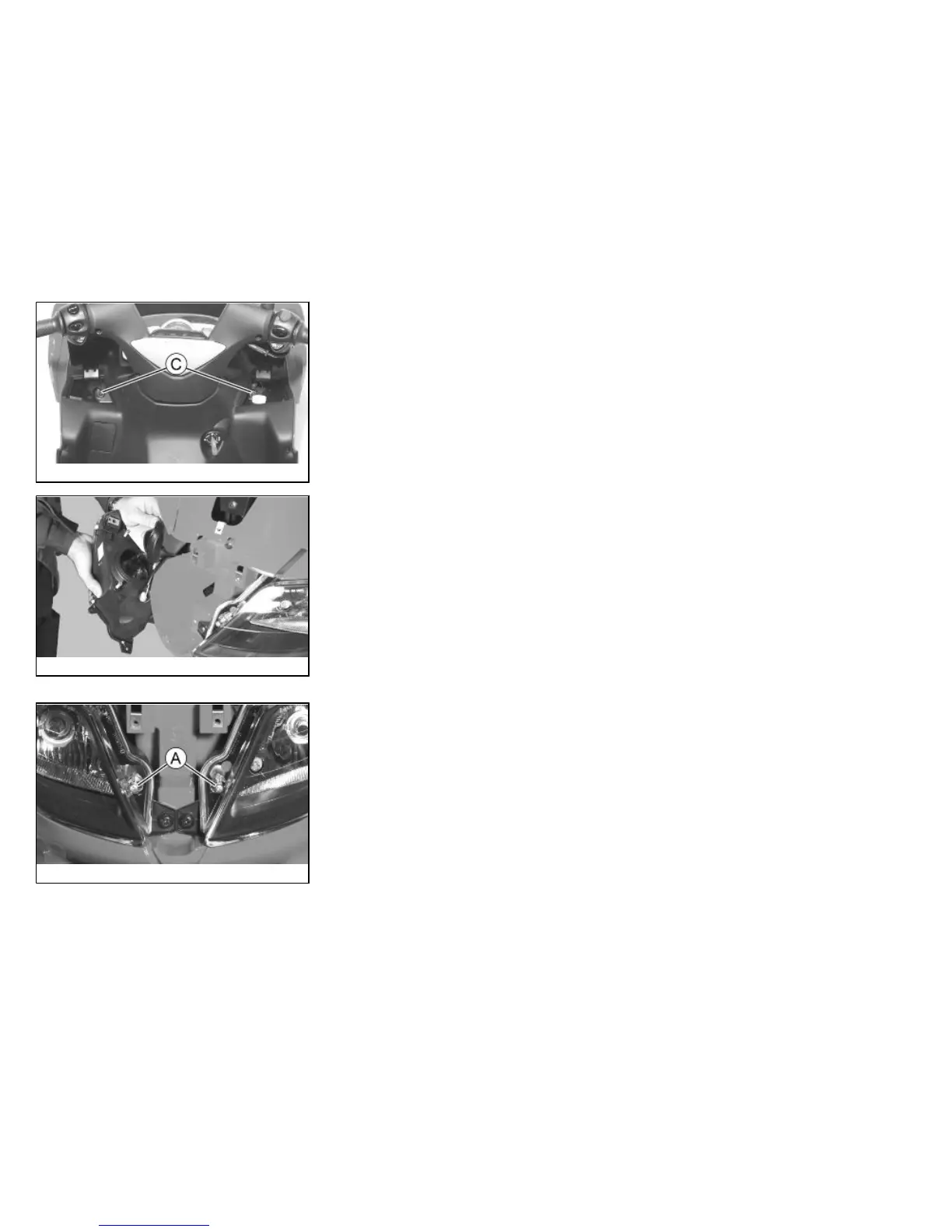

Headlight adjustment (03_28, 03_29)
Proceed as follows:
1. Place the vehicle in riding condition and with the tyres correctly inflated on a flat
piece of ground at a distance of 10 m from a white screen situated in a shaded area,
making sure that the scooter is perpendicular to the screen;
2. Turn on the headlight and check that the edge of the beam projected on the screen
is not higher than 9/10 or lower than 7/10 of the height of the centre of the headlight
from the ground;
3. Otherwise, adjust the right headlight by turning the screw «A» that can be reached
after removing the front shield union.
63
