03_35
03_36
03_37

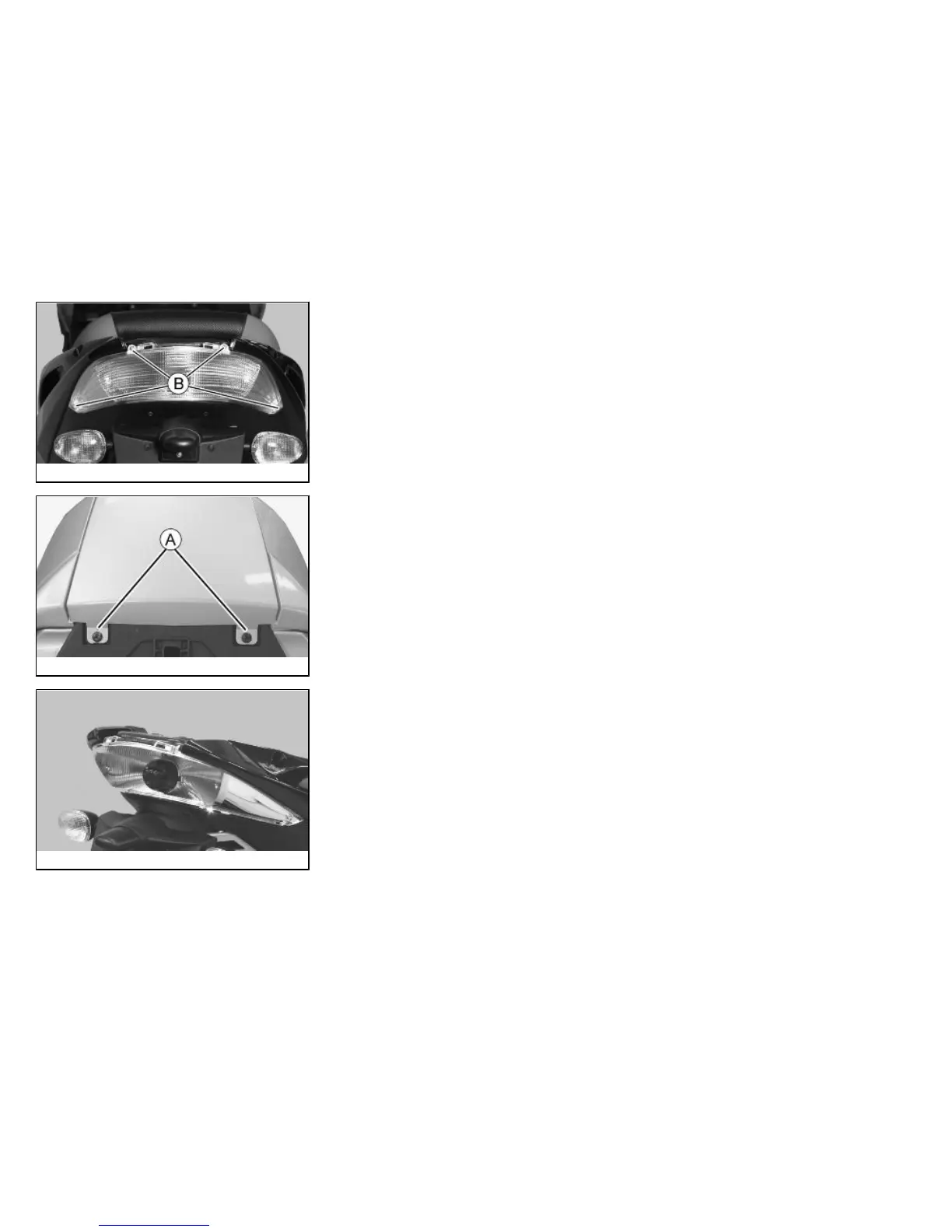

Brake light (03_35, 03_36, 03_37)
To remove the Stop Light and Tail Light bulb, proceed as follows:
1. Open the saddle and remove the rear cover by unscrewing the two screws «A»
2. Remove the stop light glass cover unscrewing the four screws «B».
3. To remove the red bulb cover, push it at its sides, and take out the bulb by pulling
it slightly and turning it anticlockwise.
67
