Extend the awning a few feet to gain access to the motor. Locate the motor
(standard installation is on the right hand side of the awning). The limit
adjustment pots are located on the head of the motor. Using the symbols printed
next to the adjustment pots, turn the black key (or 4mm Allen wrench) to make
the necessary adjustments. Typically, the motors are labeled with a + or a -.

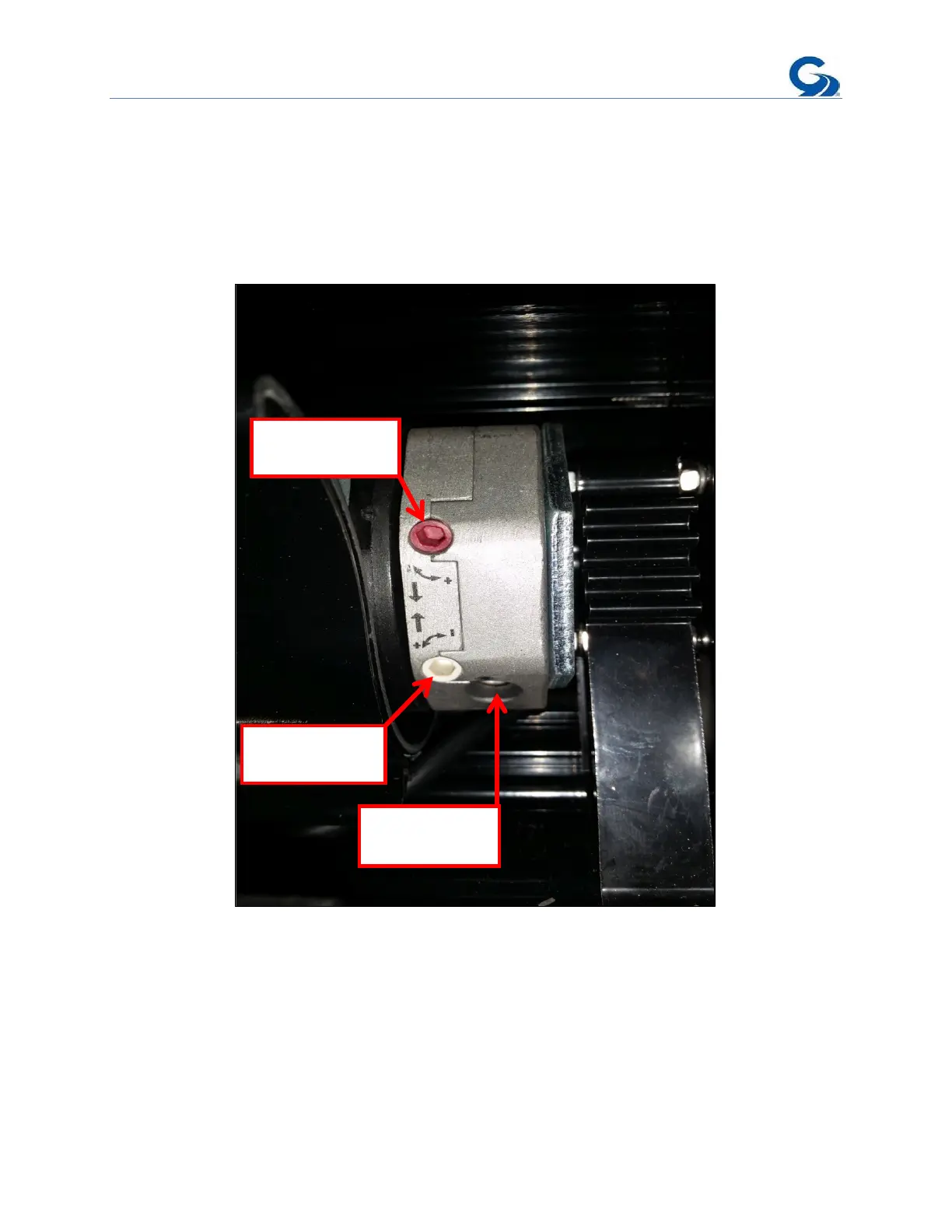

(Figure 5)
(Figure 5)
5.
Approximately ¼ turn of the adjustment pot represents about 1” of awning
movement. NEVER set outward limits so that the fabric is slack with full arm
extension. For proper adjustment set limit switch to stop the motor just before
the arms lock. This will expose about a 1/4” gap at the elbow.
