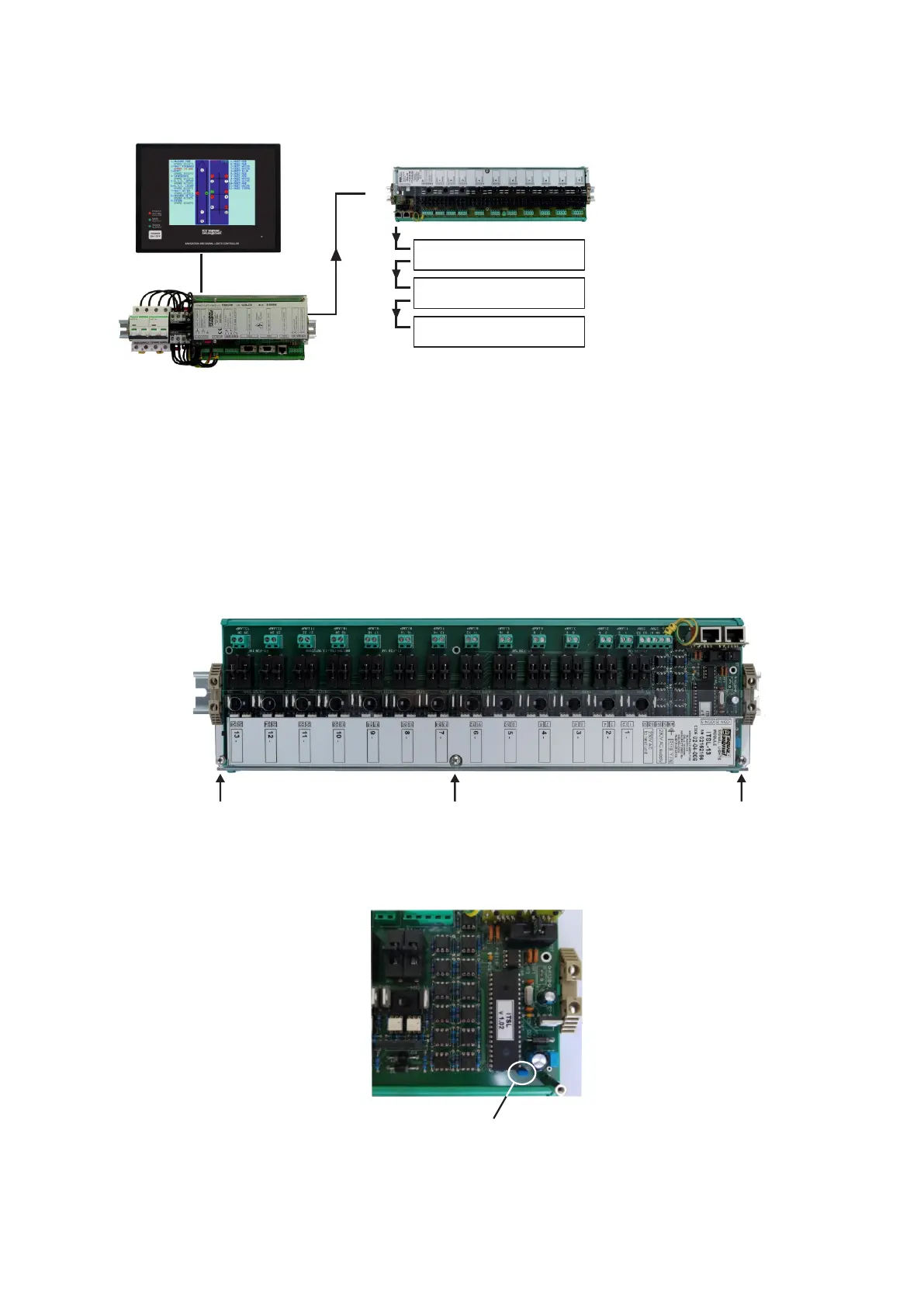

Input module ITSL address selection
ITNL-10 and ITNL-3 modules have fixed addresses while ITSL addresses need to be set via link M1. The
first ITSL module must have link M1 inserted while the second ITSL module must have link M1 removed.
Please consult connection diagram. This applies to 230V AC, 115V AC as well as 24V DC ITSL modules.
Instructions
1. Remove front cover of ITSL module
2. Insert link M1 for first module
Remove link M1 for second module
Link M1 on ITSL module
Arrangement
Following arrangement of input modules needs to be followed. If module is not exsisting just skip it.
ITNL-10
ITNL-3
1st ITSL (ITSL-13 or ITSL-7)
2nd ITSL (ITSL-13 or ITSL-7)
12
3. Return cover
