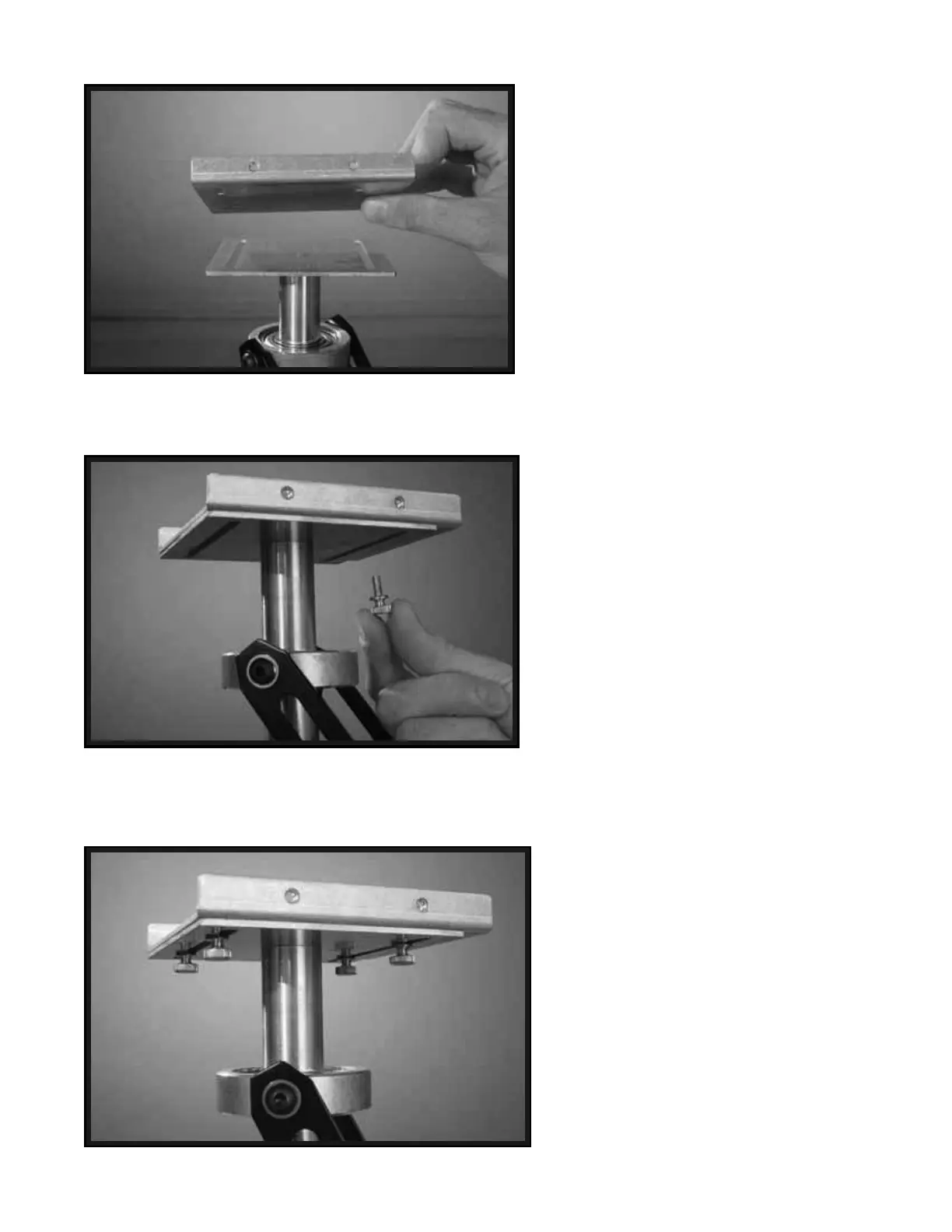

Now place the MID PLATE on top of
the BOTTOM PLATE.
Insert the BRASS THUMB SCREWS
through the slots in the BOTTOM
PLATE and into the threaded inserts in
the bottom of the MID PLATE.
At this point you should have four
BRASS THUMB SCREWS securing
the MID PLATE to the BOTTOM
PLATE.
In the next section you’ll be attaching
your Camera to the HEAD PLATE and
then attaching the HEAD PLATE and
Camera to the MID PLATE.
