11
5.2. Fastening the hydraulic lift’s base to the floor
Once the position of the hydraulic power lift within the garage has been
determined, perform the following operations before fastening it to the floor:
1. Centre the lift with respect to its established location;
2. Trace a yellow, rectangular perimeter line on the surrounding floor,
with a width of no less than 10 cm, parallel to the external edges of
the platform. The distance between the external edge of the yellow
line and the external edge of the pit must not be less than 20 cm on
every side of the pit;
3. Identify a rectilinear path for conducting the hydraulic power lift’s
tubing to the electro-hydraulic control unit.
After having performed the above operations, follow the procedure below to
fasten the hydraulic power lift to the floor:
1. Raise the platform to its
maximum height.
2. Use a percussion drill to
create φ 20 holes
(A41884+KR20 anchor
lodgings) with a depth of
6 cm, using the holes
found on the base as a
reference template (see
the following image).
3. Clean the drilled holes
carefully.
4. Place the anchors in the
holes.
5. Use a heavy hammer to
drive the anchor into the
hole without damaging
the threading.
6. Tighten the nuts of the
anchors well to fasten the hydraulic power lift to the ground. See the
installation sequence diagram.
7.

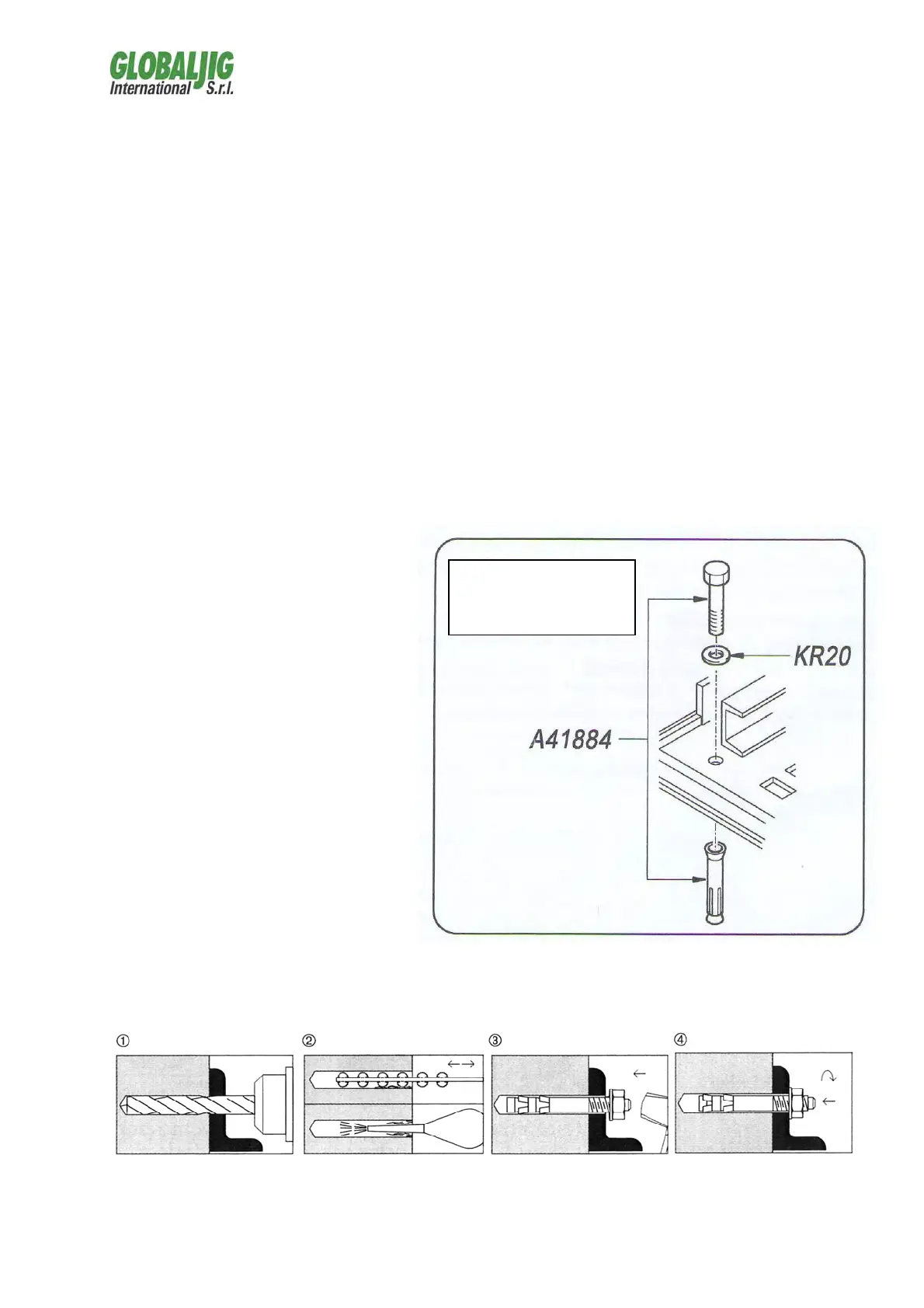

INSTALLATION SEQUENCE DIAGRAM
Detail “A”
6 positions
