Use only Globe Food Labels. Damage to thermal head can occur. To order labels, contact
a local Globe Representative or Globe Food Equipment.
IMPORTANT: Before installing a new roll of labels, remove 5 to 6 blank labels
so only backing paper is fed through the printer.
Loading Roll of Labels
1. Open the side cover.
2. Release the printer head by pushing the release lever down. See Figure 7-1.
3. Make sure the stopper lever of the roll holder is pulled down.
4. Load the label roll onto the roll holder.
5. Insert the label paper (with the label side up) under the guide.
6. Continue to pull the label paper through and make sure it is fed over the
metal bar shown in Figure 7-2 and under the bar*. See Figure 7-1.
7. Turn the winding bobbin counter clockwise so the slot is on the top. See
Figure 7-3.
8. Insert the paper under the slot on the winding bobbin. See Figure 7-3.
9. Pull up on the stopper lever, then slide it inwards to secure the label roll.
10. Make sure the label paper is against the edge**. See Figure 7-1.
11. Push down on the lock lever until the print head locks into position.
12. With the scale plugged in and turned on, press the Feed key on the keypad
once or twice in order to securely turn the paper around the winding bobbin.
Continue to press the Feed button until the labels are ejected
from the printer.
NOTE: If you receive an error message (1011), it indicates that the label is not in the proper position.
Press the CLR key then press the Feed key again to feed the labels through the printer. You
may need to do this step a couple of times.
13. Close the side cover.
Loading/Unloading Labels
Winding Bobbin
Lock Lever
Release Lever
Stopper Lever
Roll Holder
Figure 7-2
Figure 7-3
**Label paper
must be against
this edge.

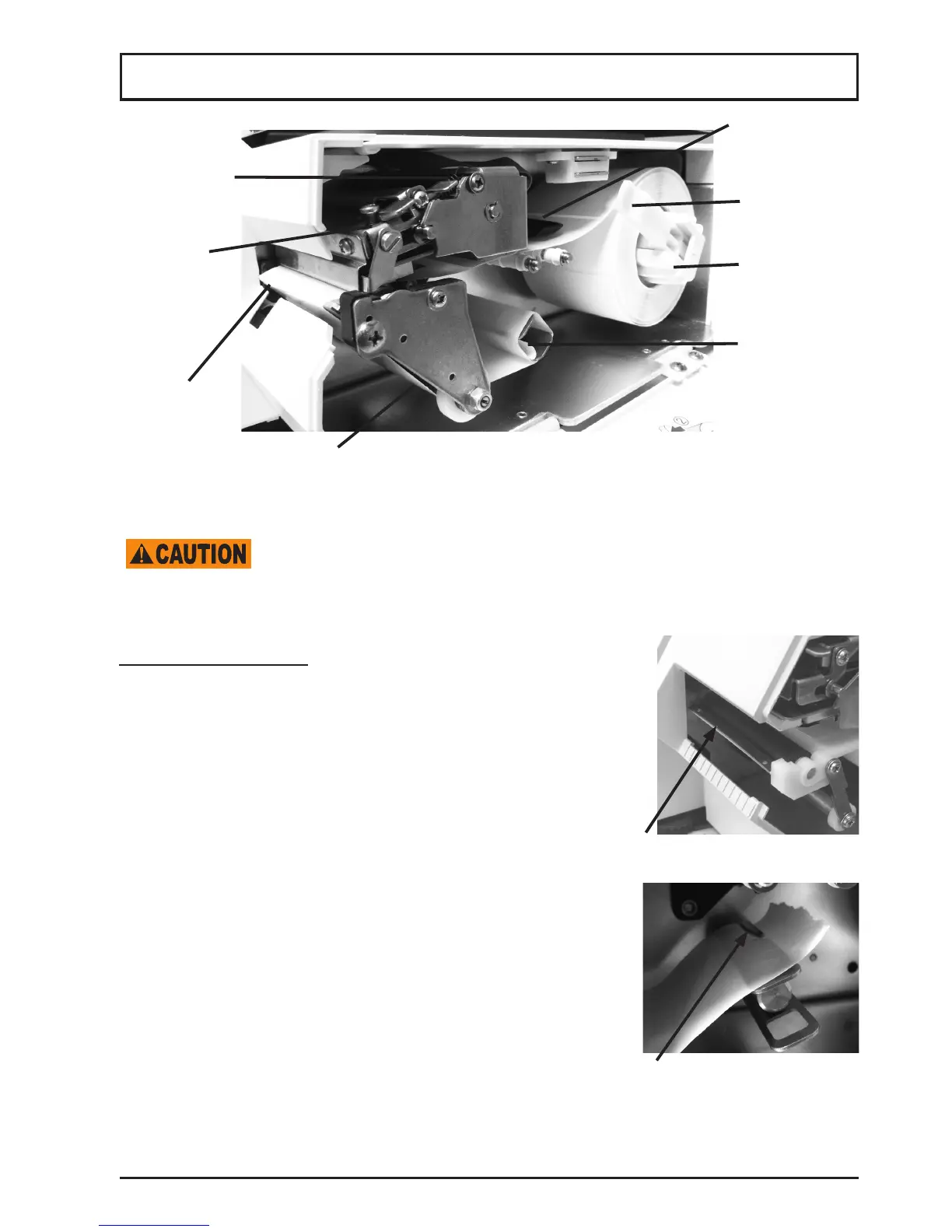

Figure 7-1
*Label paper
must go under
this bar.
Guide
