Glow-worm Energy7 Series User Manual

3 Product description
8 Operating instructions Energy
7
0020300878_00

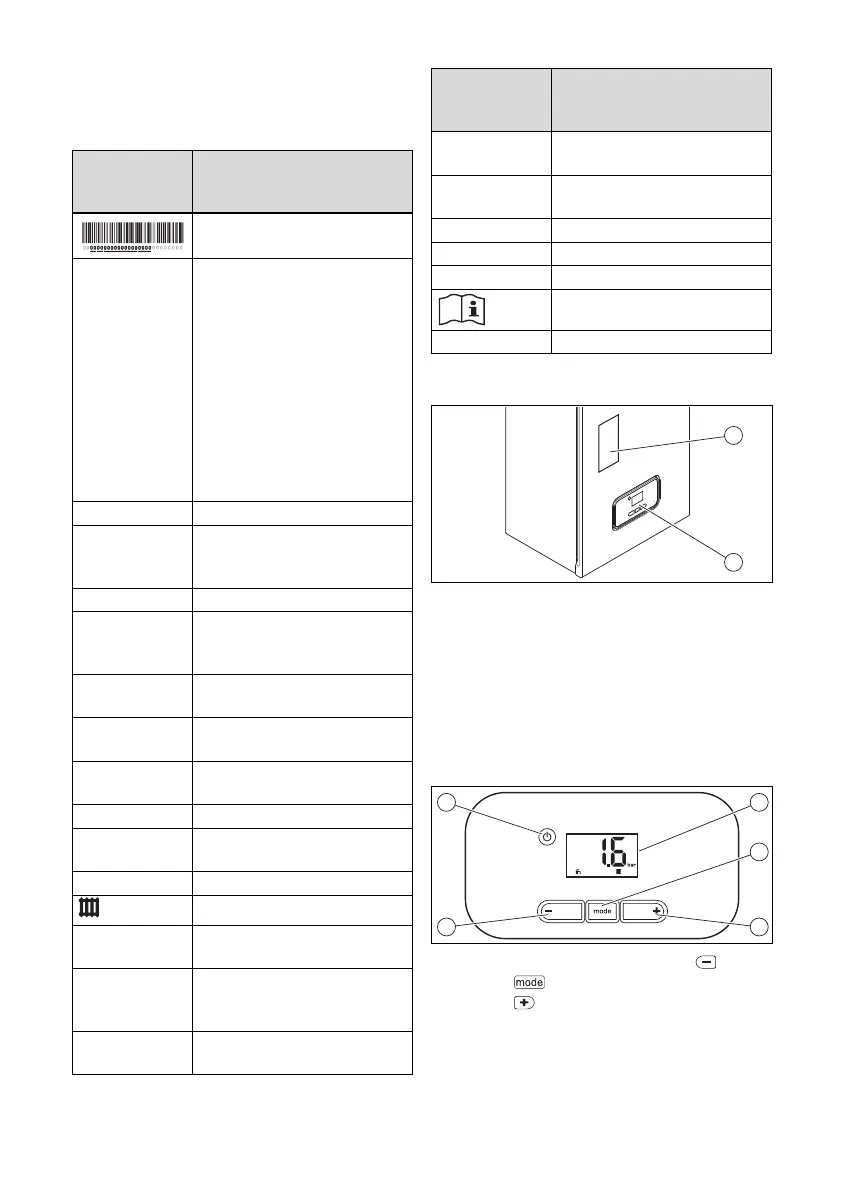

3.3 Information on the data plate
The data plate is mounted on the under-
side of the product at the factory.
Information
on the data
plate
Meaning
Barcode with serial number
Serial number For quality control purposes;
3rd and 4th digits = year of
production
For quality control purposes;
5th and 6th digits = week of
production
For identification purposes;
7th to 16th digits = product
article number
For quality control purposes;
17th to 20th digits = place of
manufacture
Energy
7
..c Product designation
2H, G20
– 2.0 kPa
(20 mbar)
Factory setting for gas type
and gas connection pressure
Cat. Unit category
Condensing
technology
Efficiency class of the boiler
in accordance with EC Dir-
ective 92/42/EEC
Type: Xx3(x) Permissible flue gas connec-
tions
PMS Maximum water pressure in
heating mode
PMW Maximum water pressure in
domestic hot water mode
V / Hz Electrical connection
W Max. electrical power con-
sumption
IP IP rating
Heating mode
Pn Nominal heat output range
in heating mode
Pnc Nominal heat output range
in heating mode (condensing
technology)
P Nominal heat output range
in domestic hot water mode
Information
on the data
plate
Meaning
Qn Nominal heat input range in
heating mode
Qnw Nominal heat input range in
domestic hot water mode
T
max.
Max. flow temperature
NOx NOx class for the product
Code (DSN) Specific product code
Read the instructions.
GC no. Gas council number
3.4 Design of the product
2
1
1 Magnetic brief
operating in-
structions with
type designation
and serial num-
ber
2 Control elements
3.5 Overview of the operator
control elements
1
2
34
5
1 Display
2 Button
3 Button
4 Button
5 Fault clearance
key

Glow-worm Energy7 Series Specifications

General

Brand	Glow-worm
Model	Energy7 Series
Category	Boiler
Fuel Type	Natural Gas
Efficiency Rating	A
Mounting	Wall Mounted
Warranty	7 years
Heat Exchanger	Aluminium
Type	Combi
Flue Options	Horizontal or Vertical
