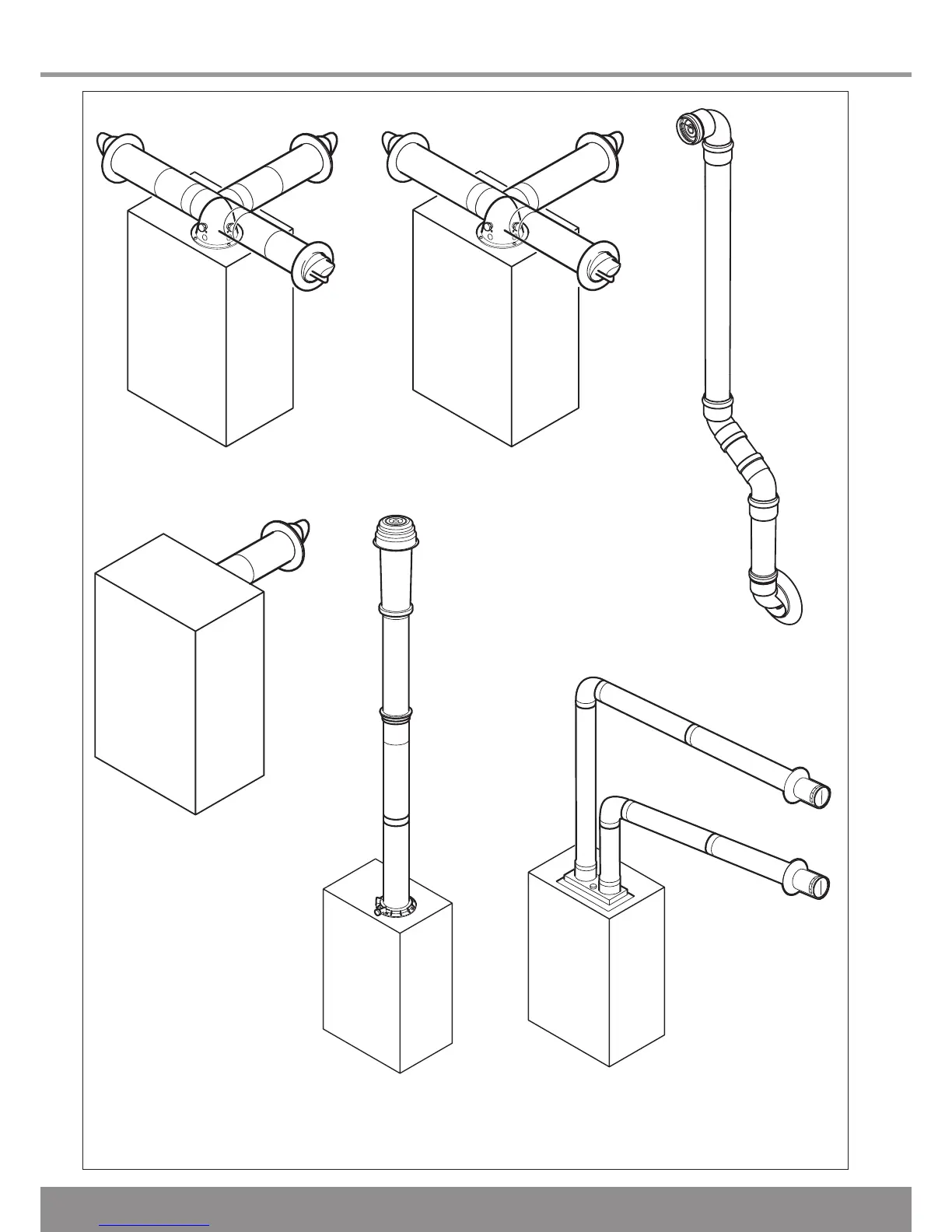

4 Flue Options and Terminal Clearances
Top horizontal telescopic ue (Ø60/100)
Part No. A2043600 - Section 10, page 20
Top horizontal standard ue (Ø60/100)
Part No. A2043400 - Section 10, page 24
Twin Flue
Twin Flue Adapter, concentric ue (Ø80)
Part No. A2011000 - Section 10, page 32
Diagram 4.1
Plume Management Kit
basic set, white, concentric ue
(Ø60/100) - Part No. A2044100 for
use with Part No. A2043400 and Part
No. A2043600 - Section 10, page 35
Vertical Flue
Vertical Flue Adapter, concentric ue (Ø60/100)
Part. No. A2024600 - Section 10, page 29
Vertical ue terminal kit, concentric ue (Ø60/100)
Part. No. 2000460480 - Section 10, page 29
Direct rear telescopic ue (Ø60/100)
Part No. A2043500 - Section 10, page 28
