4 Flue Options and Terminal Clearances

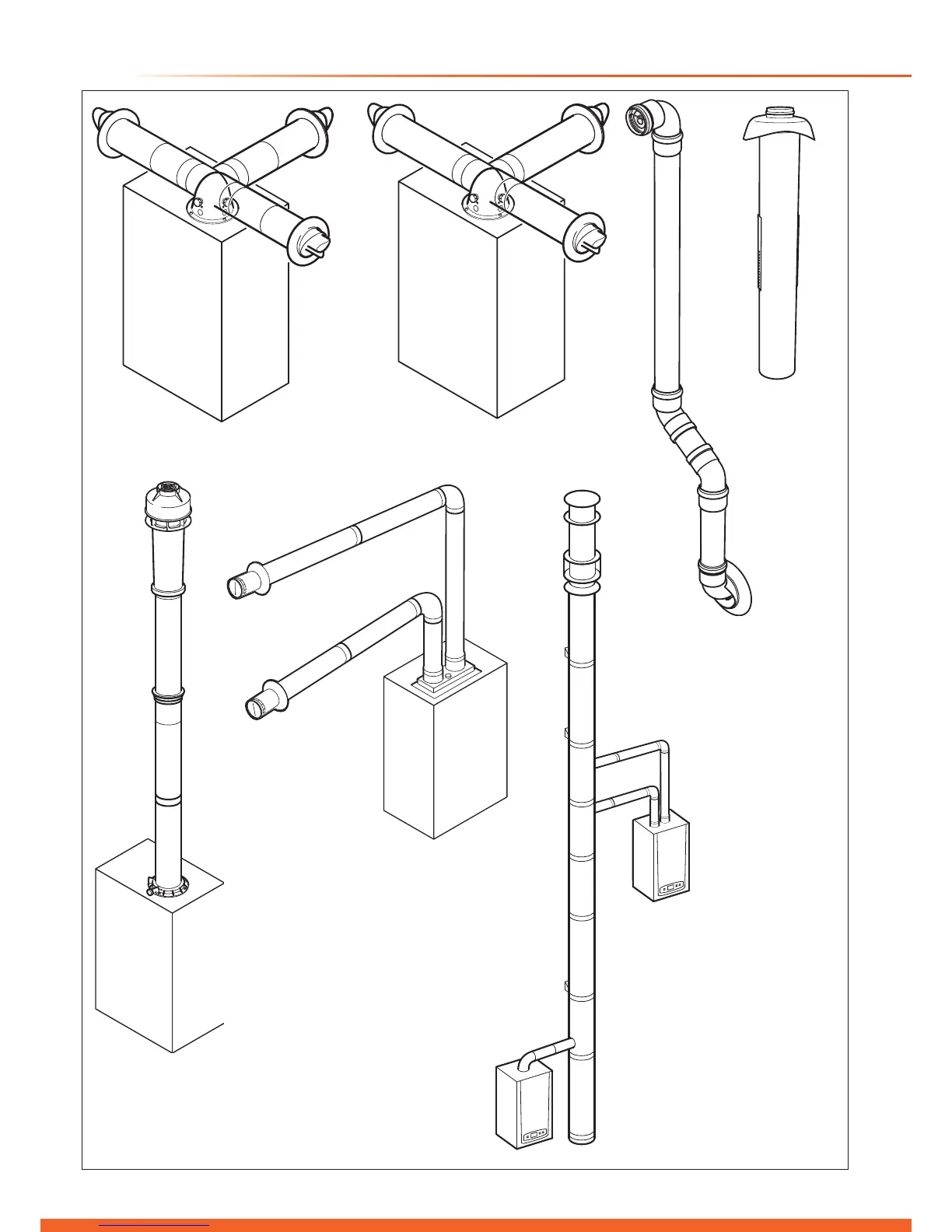

Diagram 4.1
Top horizontal telescopic ue (Ø60/100)
Part No. A2043600 - Section 10, page 20
Top horizontal standard ue (Ø60/100)
Part No. A2043400 - Section 10, page 24
Twin Flue
Twin Flue Adapter, concentric ue (Ø80)
Part No. A2011000 - Section 10, page 32
Plume Management Kit
basic set, white, concentric ue
(Ø60/100) - Part No. A2044100 for
use with Part No. A2043400 and
Part No. A2043600 - Section 10,
page 35
Vertical Flue
Vertical Flue Adapter, concentric ue (Ø60/100)
Part. No. A2024600 - Section 10, page 28
Vertical ue terminal kit, concentric ue (Ø60/100)
Part. No. 2000460480 - Section 10, page 28
Multiple Boiler Chimney
Flue
Vertical concentric stack
ue suitable for use with top
horizontal telescopic ue
and top standard horizontal
ue as specied by the
manufacturer
Deector Flue Terminal Kit
(Ø60/100)
Part No. 0020060582 (black)
Part No. 0020060583 (white)
- Section 10, page 34
Ridge Tile Terminal
Part No. A2043800 -
Section 10, page 30
Multiple Boiler Chimney Flue
Vertical concentric stack ue
suitable for use with:-
Top horizontal telescopic ue,
Top standard horizontal ue,
Twin Flue, as specied by the
manufacturer.
