Glow-worm Ultracom 24cxi Installation And Servicing

14
6 Installation Preparation

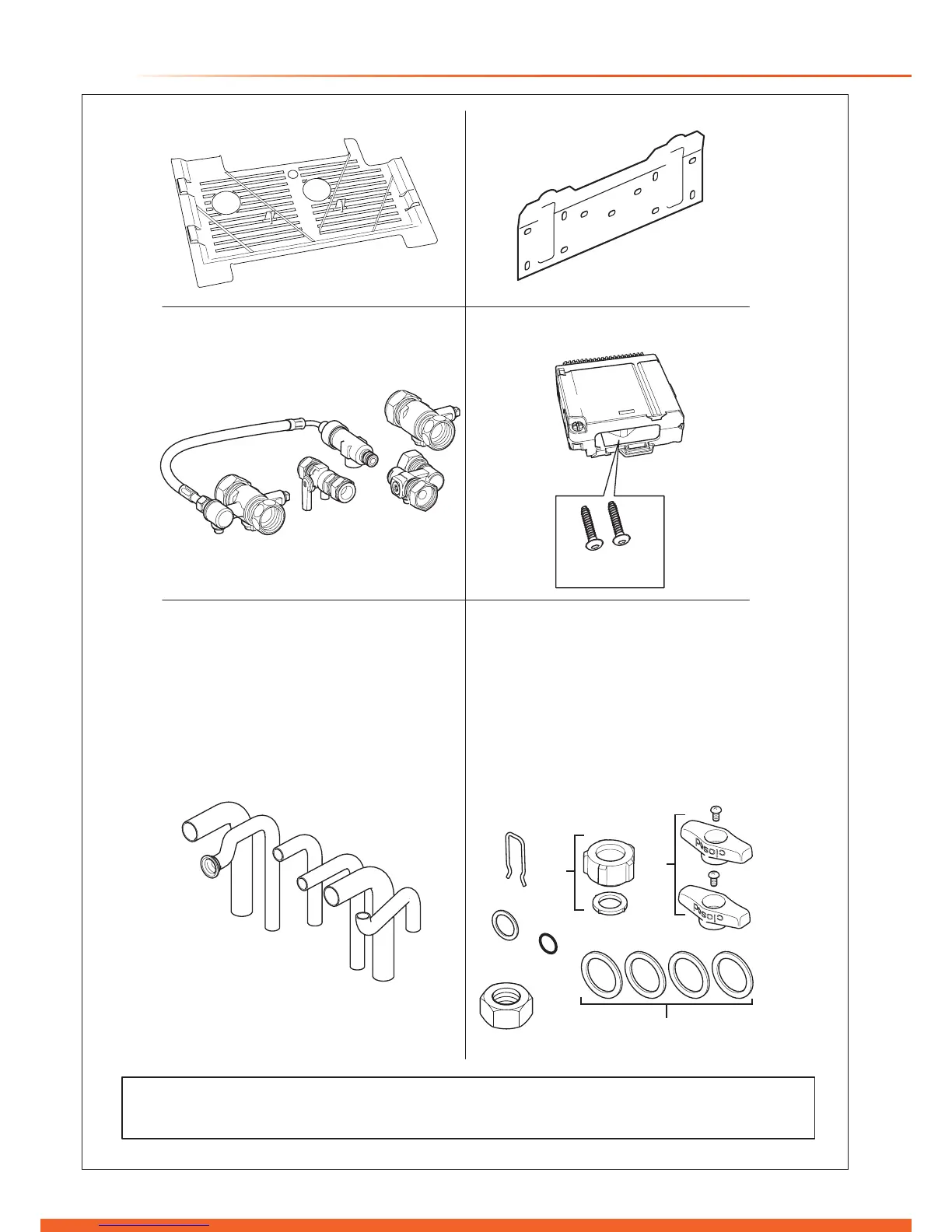

Diagram 6.1
13646
Base Coverplate
A - Wire Retaining Clip
B - Union Nut and Sealing Washer
A - Central Heating x 2
C - Ta p and Securing Screw
E - Gas Sealing Washer
F - O Ring
G - Union Nut
B - Domestic Hot Water Outlet
D - Sealing Washers
C - Gas
D - Domestic Cold Water Inlet
E - Saftey Discharge
Hanging Bracket
Electrical CartridgeGas and Water
Isolating Valves
0020036801
Pipe Pack 0020029671 Loose Items Pack
E
D
D
A
A
A
E
F
G
C
C
B
B
Retaining Screws
stored in cartridge
Documentation Pack (not illustrated)
Wall Template, User Instructions, Installation and Servicing Instructions.

Glow-worm Ultracom 24cxi Specifications

General

Manufacturer	Glow-worm
Model	Ultracom 24cxi
Category	Boiler
Type	Condensing
Output	24 kW
Efficiency	89.3%
Fuel Type	Natural Gas
Efficiency Rating	A
ERP Rating	A
Mounting	Wall Mounted
Max. Working Pressure	3 bar
Warranty	2 Years
Fuel	Natural Gas
Flow Temperature Range	30°C - 80°C
Dimensions	740mm x 418mm x 300mm
