GM Energy V2H Bundle User Manual
WARNING
NEED-TO-KNOW ACTION ITEMS

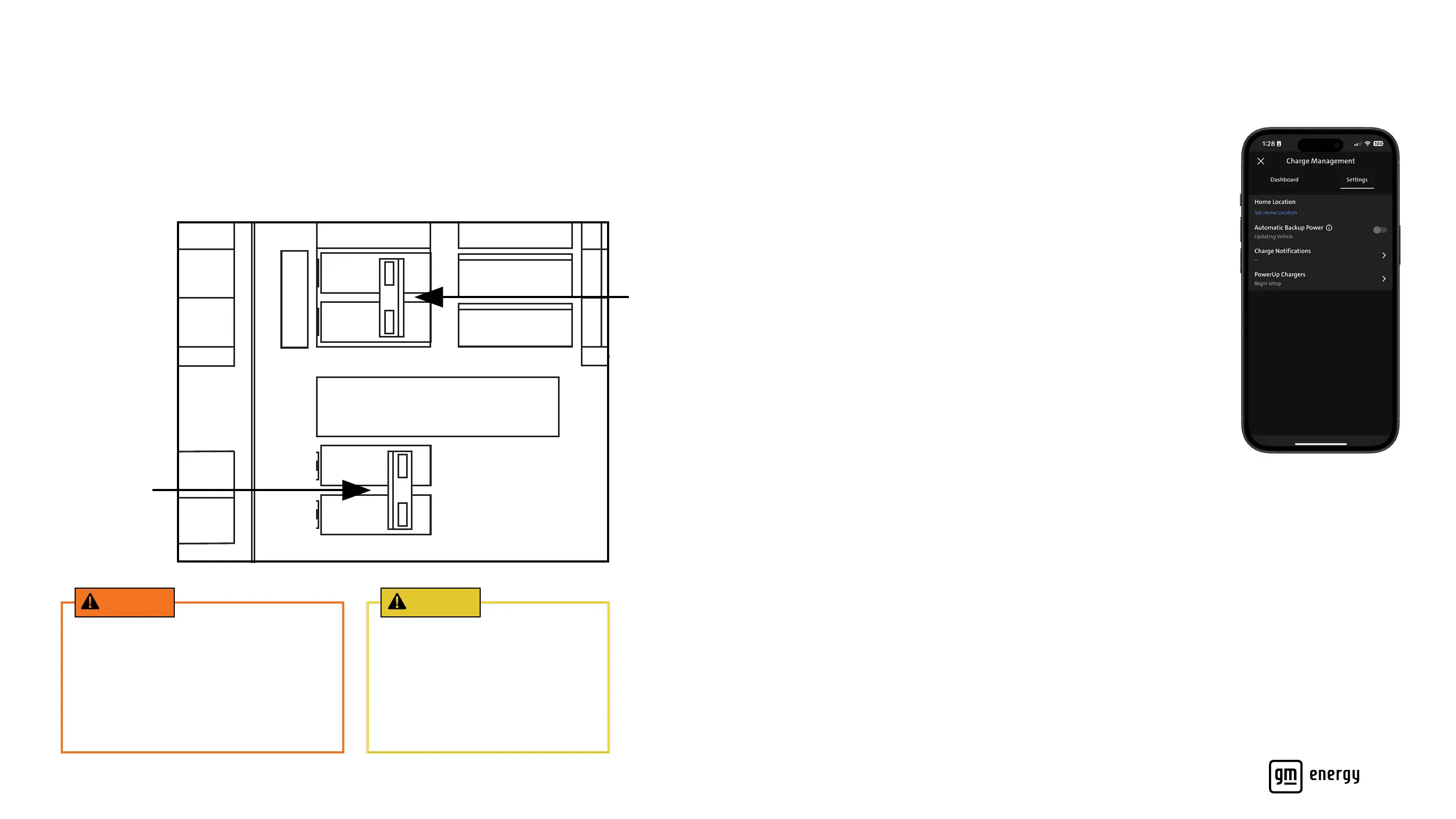

My power came back on, but only some of the circuits or appliances in my home have power.
If you still have issues, it’s possible that a regular home circuit breaker was tripped (when the home was not in
backup mode).
• Check your home’s circuit board to reset any tripped circuit breakers
• Turn off any appliances that may be causing an excessive power draw
My power is out, but my Compatible GM EV is not starting a backup
power session.
• If the GM Energy PowerShift Charger LED light remains solid blue
for more than a minute and no session begins, it is likely the vehicle
enablement conditions are not met
• Vehicle enablement conditions are: valid state of charge (SOC above
20%), Automatic Backup Power enabled in app, home location set and
vehicle is at home location
If you have met all vehicle enablement conditions and the backup power
session still hasn’t started, it is possible your Compatible GM EV is not
registering its home location properly. Ensure your mobile app shows Home
in the charge management section.
BACKUP LOAD PAN: THESE CIRCUITS WILL BE
POWERED BY BDI WHEN IN BACKUP MODE.
THIS BREAKER PAN BUS BAR IS RATED FOR 166 A CONTINUOUS @ 240
VAC.BREAKER PAN TO MID BUS BAR TORQUE: 72 in-lb. USE ONLY EATON BR
or BQC BREAKERS IN THIS PAN. TORQUE TERMINALS TO THE VALUES
SPECIFIED ON THE BREAKER.
2
4
6
8
10
12
Backed-up circuits
BDI L1
BDI L2
1
3
5
7
9
11
Backed-up circuits
EVSE PAN: THIS PAN IS ONLY SUITABLE FOR
CONNECTING EVSE CIRCUITS!
THIS BREAKER PAN BUS BAR IS RATED FOR 125A @ 240 VAC. USE ONLY
EATON TYPE 24INT125B. BREAKER PAN TO MID CASE TORQUE: 25 in-lb.
THIS EVSE MAX. CURRENT IS 80A. USE EATON TYPE BR BREAKERS UP TO 100A
RATING. TORQUE TERMINALS TO THE VALUES SPECIFIED ON THE BREAKER.
EVSE L1
EVSE L2
1
2
The maximum operating current of this system
may be controlled electronically. Refer to the
quick installation guide for more information.
Alternate power sources for this system are
controlled by a power control system (PCS).
The setting of PCS shall be considered the
power source output circuit current.
PCS controlled current setting:
80 A 100 A 120 A
140 A
160 A
Other:____ A
System NOT configured for PCS
WARNING! ATTENTION! Parallel Energy Source Disconnect.
Power source output connection. Do not relocate this overcurrent device.
On
Off
On
Off
On
Off
On
Off
100100
100100
Breaker Off
Breaker On
Intentionally ipping circuit breakers
installed in the GM Energy Home Hub to
their “on” position with home appliances or
loads connected to the breaker could cause
a re, which may result in serious personal
injury, loss of life or property damage. Turn
off any appliances or devices that are causing
excessive draw to return to normal operation.
If you have any questions regarding
your home’s electrical system, contact
a professional electrician. If there are
any problems with the performance
of the GM Energy V2H System, call the
GM Energy Customer Support Center
for help at 1-833-64POWER.
CAUTION
