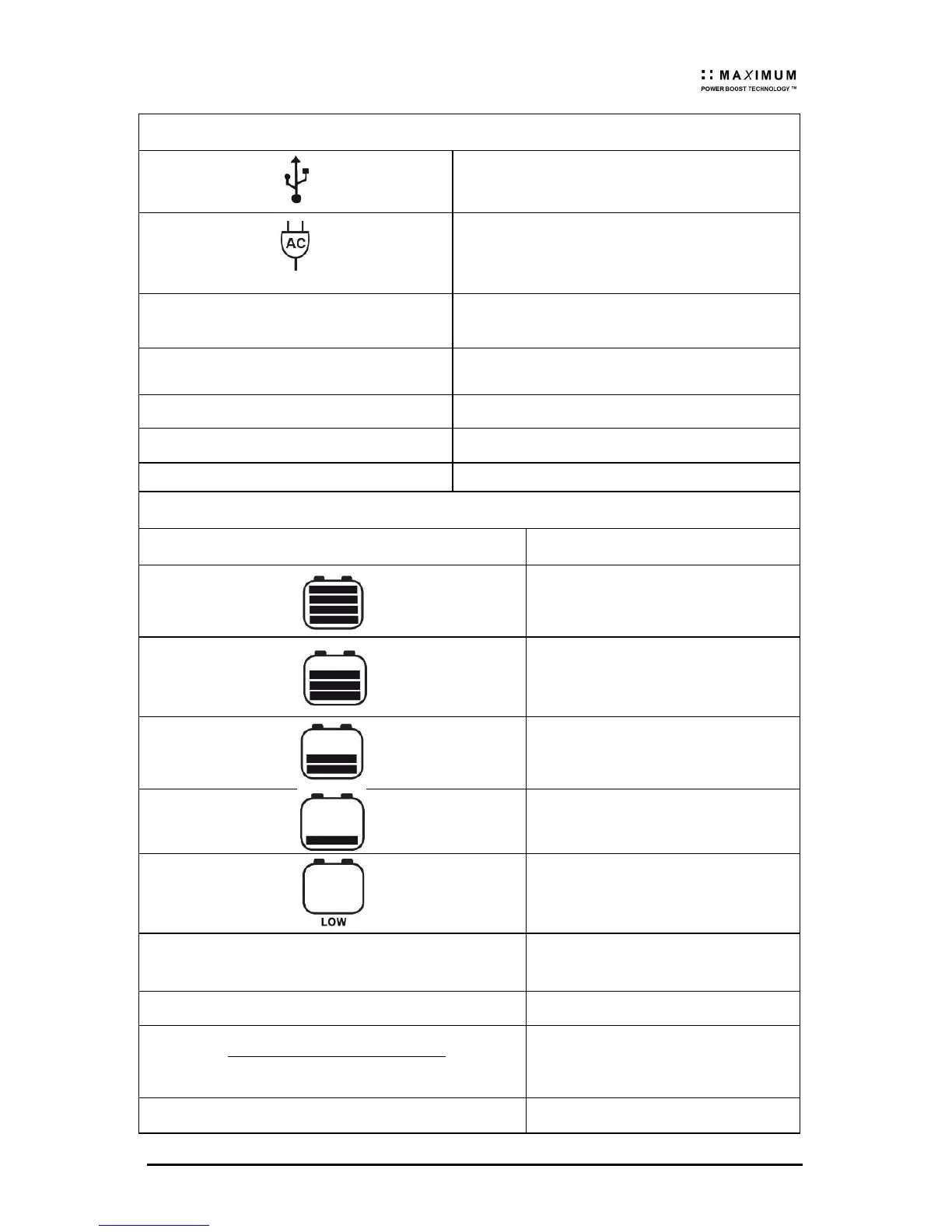

Other Symbols
USB charger on
(When USB charger is off, no symbol will show)
Inverter on
(Can only be used when and inverter is hardwired.
See Section 9.0. When inverter is off, no symbol
shows)
BOOST
Max Power Boost activated, Boost
charge incomplete
LOW
Battery 1 / 2 voltage is lower than
11.0 VDC
Whole display will start to blink
Battery 1 voltage > 15.5 VDC
No Symbol
Battery 2 voltage >15.5 VDC
POL
Battery 1 reverse polarity
Battery State of Charge
Symbol
Battery Voltage
Shows only after full Boost
or Equalization Cycle
>= 12.6 VDC
>= 11.8 -12.6 VDC
> 11.0 -11.8 VDC
<= 11.0 VDC
100%
Shows only after full Boost
or Equalization Cycle
90%
>= 12.8 VDC
%90
8.1
0.11



V
Vtagebatteryvol
SOC
< 12.8 VDC
and > 11.0 VDC
0%
<= 11.0 VDC
