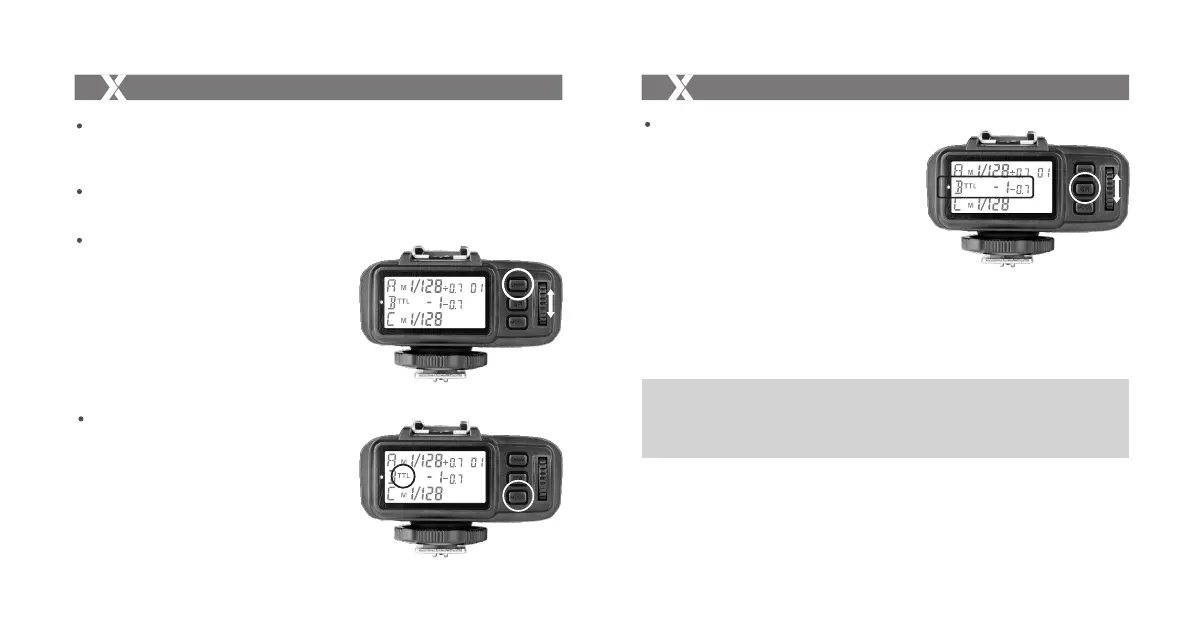

Setting the Transmitter
Slide the Power Switch to ON, and the device is on and Status Indicator Lamp will not blink.
Note: In order to avoid power consumption, turn off the transmitter when not in use.
Power Switch
Slide the power switch to ON, and the AF lighting is allowed to output.
Power Switch of AF Assist Beam
Channel Setting
1. Short press the <CH/OK> Button until the
channel amount blinks.
2. Turn the Select Dial to choose the appropriate
channel. Press the <CH/OK> Button again to
confirm the setting.
3. This flash trigger contains 32 channels which can
be changed from 1 to 32. Set the transmitter and
the receiver to the same channel before usage.
Setting the Transmitter
Mode Setting
1. Short press the <MODE> Button, and the mode
of the current group will change.
2. The current group's mode will be changed by the
order of TTL/M/-- modes (-- means OFF, and the
current group will not fire a flash in this mode).
Current Group Settings
1. Short press the <GR> Button to set the current
group.
2. The current group settings will blink and turn
the Select Dial to change the settings.
3. When the current group is in the M mode, the
power output value is changeable from 1/1 full
[Note 1]
power to Min. power in 0.3 stop increments.
When the current group is in
the TTL mode, the FEC amount is changeable
from -3 to 3 in 0.3 stop increments. When the
current group is in the -- mode (flash off), the
amounts will not change.
4. Short press the <GR> Button again to confirm
the setting.
[Note 1] :
Min. refers to the minimum power output value that can be set in M/Multi mode. X1N's minimum
power output value is 1/128 for most of camera flashes. However, the value can change to 1/256
when using in combination with Godox strong power flashes e.g. AD600, etc.
- 34 -- 33 -
