Compass™ Service Manual
GP600-SM 5 RevA02062006
I. SERVICING THE POWER CHAIR
WARNING: WE STRONGLY RECOMMEND THAT, BEFORE PERFORMING ANY
SERVICE ON THE POWER CHAIR, YOU FOLLOW THESE STEPS:
1. DISCONNECT THE JUMPER HARNESS FROM THE JOYSTICK CABLE.
2. REMOVE THE ARMREST ASSEMBLIES AND SEAT.
3. LOCK (ENGAGE) THE MOTORS.
4. REMOVE THE SEAT RECEIVERS. REFER TO INSTRUCTION SET A.
5. DISCONNECT THE BATTERY HARNESSES AND REMOVE THE BATTERIES.
A. Removing and Installing the H-bar Seat Receivers
Remove the four ball detent pins from the seat posts, and remove the H-bar seat receivers. Reverse these
instructions to reinstall, setting the correct height and pitch.
B. Removing and Installing a
Front Caster Arm Cover and Rear
Fender
1. Place the power chair on its side, being
careful to protect its surface.
NOTE: Use a flashlight when per-
forming the next steps.
2. Remove the screw (B1) from the front
caster arm cover (B2), using a P1 Phillips-
head screwdriver. See figure 1.
3. Remove the two screws (B3) from under the
rear fender (B4). Reverse these instructions
to reinstall the cover and fender.

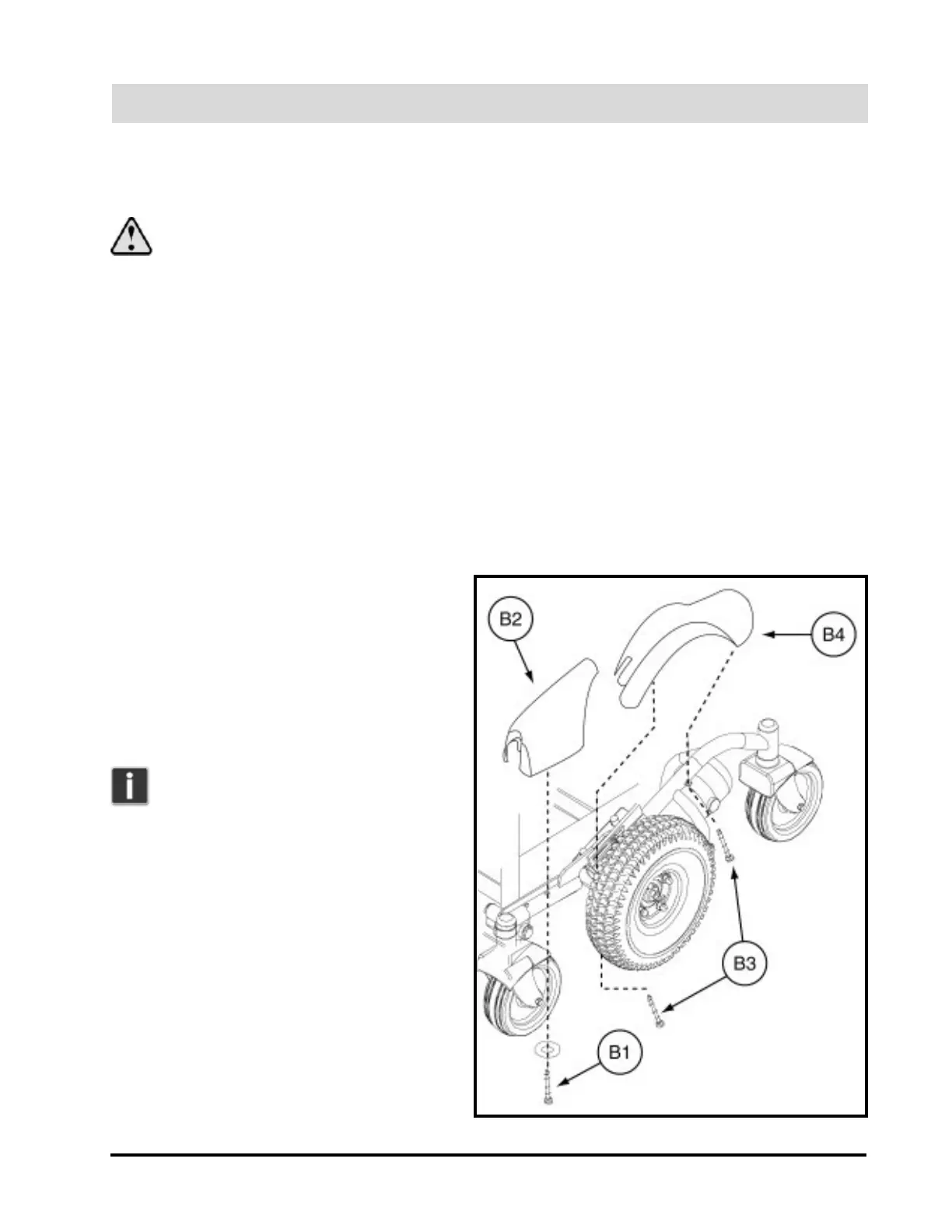

Figure 1. Left Front Caster Arm Cover and Rear Fender
