Compass™ Service Manual
GP600-SM 7 RevA02062006
E. Removing and Installing a Fender-
Fork Assembly
1. Remove the weather cap (E1), on top of the fork
assembly, by popping it off. See figure 4.
2. Remove the 3-mm Allen-head screw (E2) from the
top of the fork assembly.
3. Lift up on the frame and remove the fender-fork
assembly.
4. Remove the nut (E4) and bolt (E5) from the fork,
and remove the caster wheel.
5. Remove the two Phillips-head screws (E6) that
hold the fender to the fork. Reverse these instruc-
tions to reinstall the fender-fork assembly.
NOTE: All four fenders are the same size.
When replacing the assembly, face the
duckbill to the rear (with the flow of the
fork).
CAUTION: Be sure to test for free-
wheeling.
F. Adjusting the Pitch on the Front
Casters
1. Place the power chair on a level surface.
2. Hold the jam nut (F1) with a 17-mm box wrench, and turn the bolt
(F2) clockwise, using a 5-mm Allen wrench, to raise (increase) the
pitch. To lower (decrease) the pitch, turn the screw counter
clockwise. See figure 5.
NOTE: The ideal setting is achieved when the front
casters are set 1/8 in. from the surface with no weight
in the chair (with batteries and seat removed).

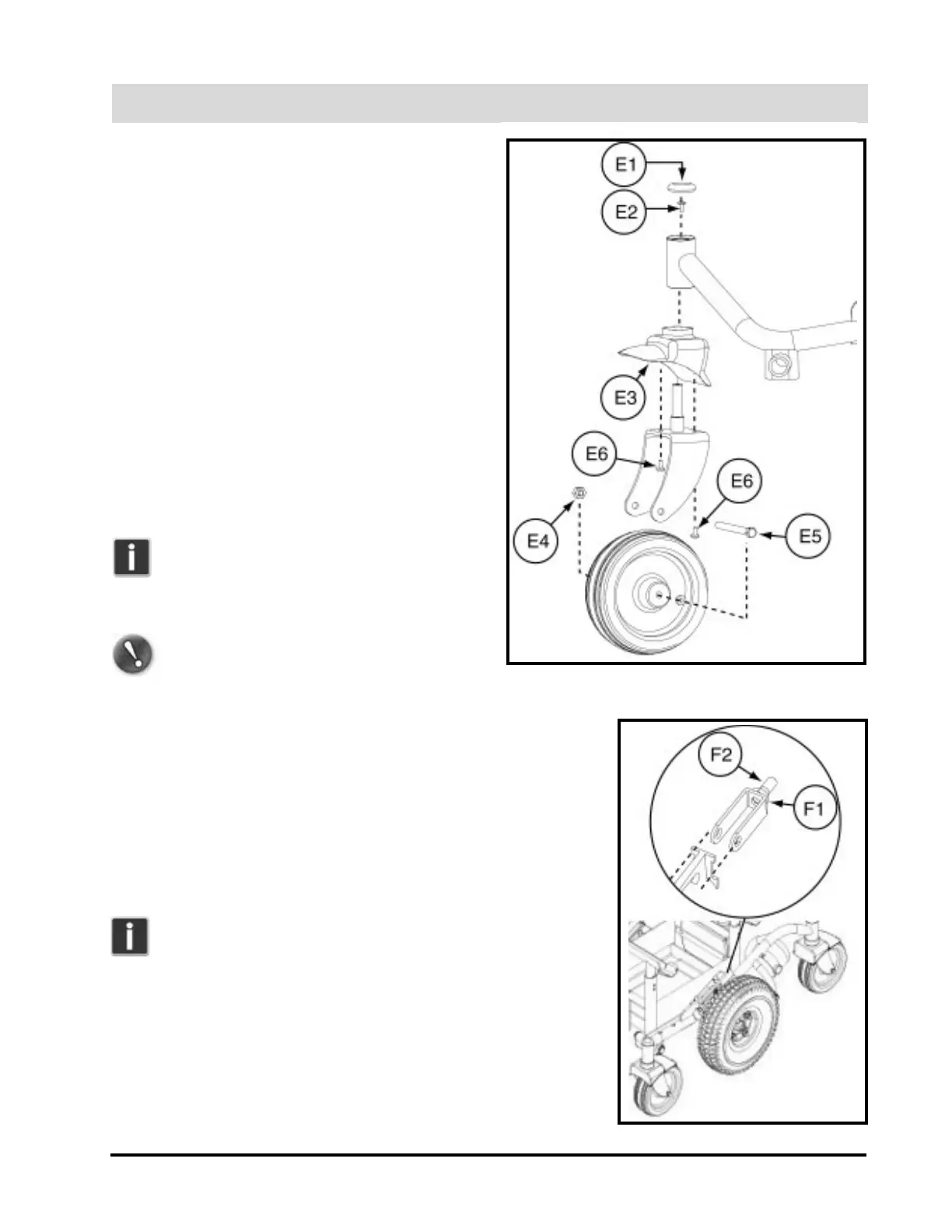

Figure 4. Fender-Fork Assembly
Figure 5. Caster Wheel Adjustment
