COMMUNICATION SCREEN
ART 7 /G2+ MONITORH

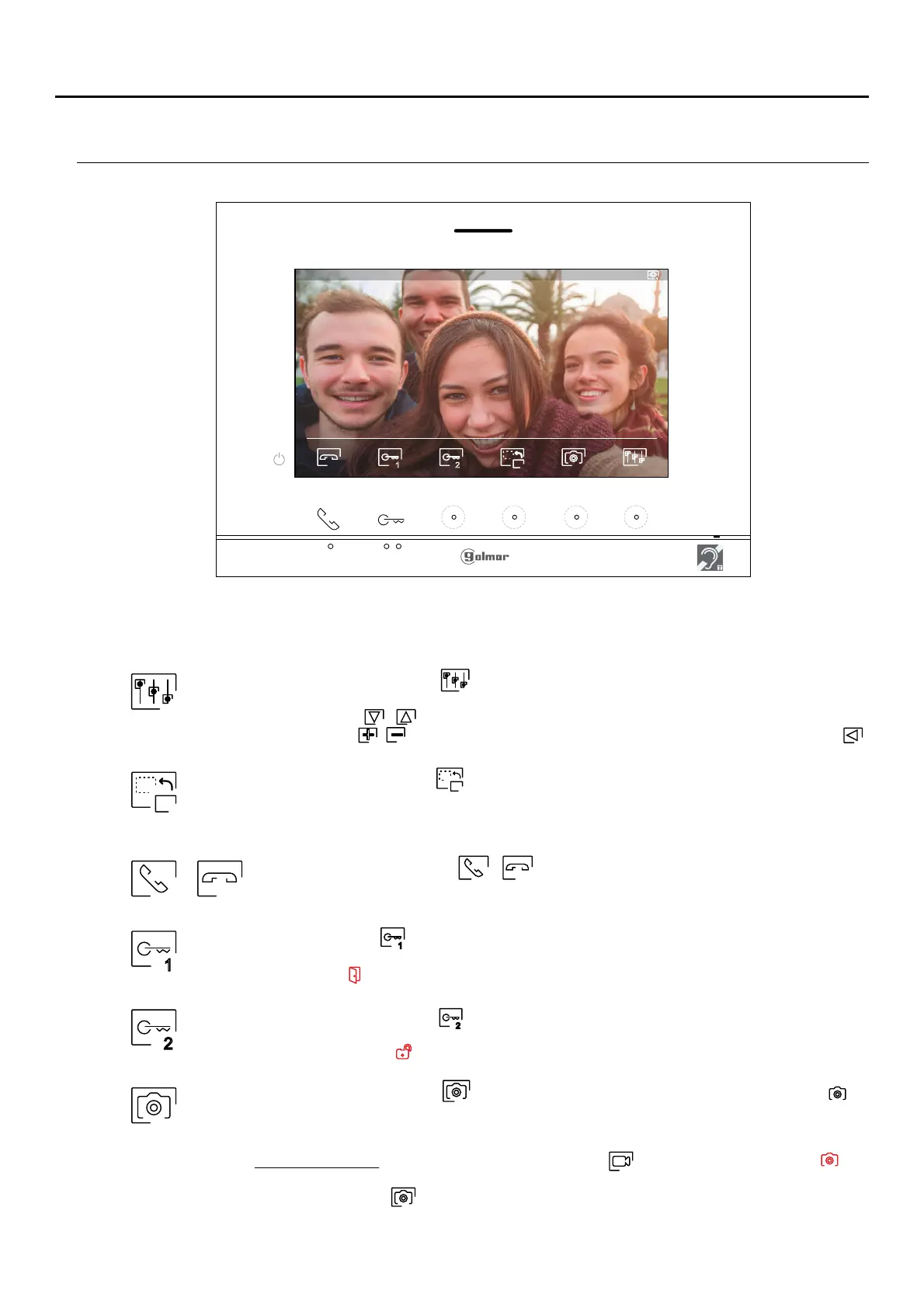

This screen is displayed during a communication process. In the top centre of the screen, the date and time are
shown and, on the right, the source of the image is displayed (door panel 1 door panel , camera 1 camera )to 4 to 4 .
Press the button below icon / to start or end audio communication with the door
panel displayed respectively. Communication has a maximum duration of 90 seconds.
Once communication has ended, the screen will turn off.
Press the hidden button below icon to change the source of the image as long as the system has
more than one door panel or has an external camera connected and display has been activated
(see pp. ). This enables the door panel camera to be changed, the audio of the21-24
corresponding door panel to be activated and the door to be opened.
Press the hidden button below icon to take a picture. In the top left of the screen, icon is
displayed.
Note: If a Micro SD card is inserted, a 15-second video automatically starts recording a few seconds
after . In the top left of the screen, icon is displayed and indicator willreceiving the call
illuminate (see p. to configure video recording mode). Then a short 1-second press on the9
hidden button below icon will take a photograph or a long -second press will record a video.3
Press the hidden button below icon to access the image and monitor in communication volume
settings menu. Go to the option to be modified by pressing the hidden button belowbutton/
corresponding icons / , change to the desired level by pressing the hidden buttons below
corresponding icons / and validate the changes made by pressing the button below icon ,
(see p. 14).
1
2
1 2
0 -0 -21 7 019 11:17:10
1
Press the button below icon to activate the lock release (or device connected to the CV output of the
door panel) for 3 seconds(factory setting, programmable by the installer; see pp. . During21-24)
activation, indicator will illuminate.
Press the hidden button below icon to activate the lock release (or device connected to the relay
output of the door panel) for 3 seconds (factory setting, programmable by the installer; see pp. .21-24)
During activation, indicator will illuminate.
1
2
