MS400
Translation of the original operating instruction and spare parts list
- 9-
5007045-00
BA-E
®
2. Description
2.1 Main parts

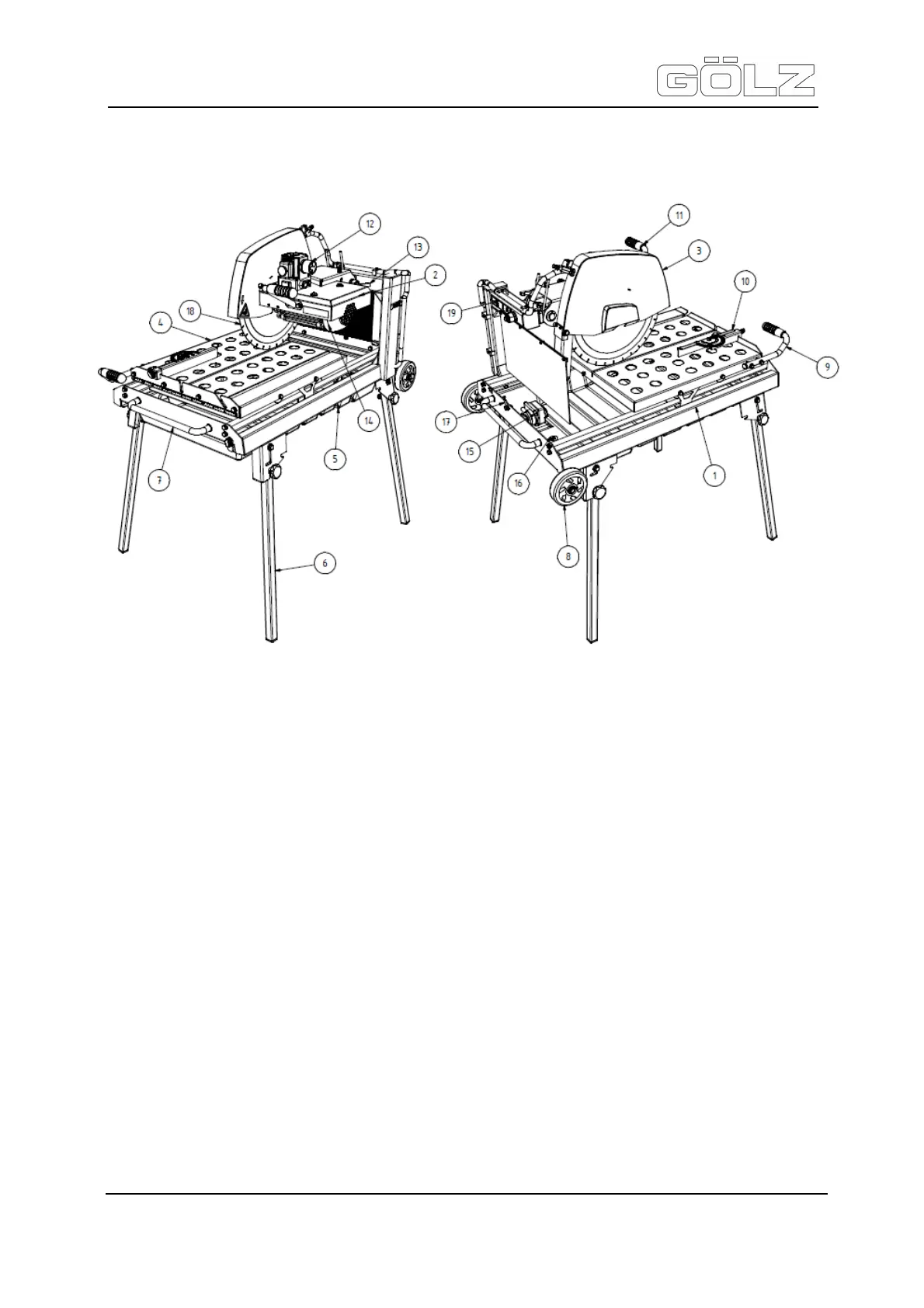

1) Main frame 8) Transport wheel 15) Water pump
2) Cutting head 9) Table handle 16) Drain plug
3) Blade guard 10) Back square 17) Table locker
4) Cutting table 11) Cutting head handle 18) Blade
5) Water supply tank 12) Switch 19) Machine plate
6) Main pillar 13) Adjusting handle
7) Transport handle 14) Engine
