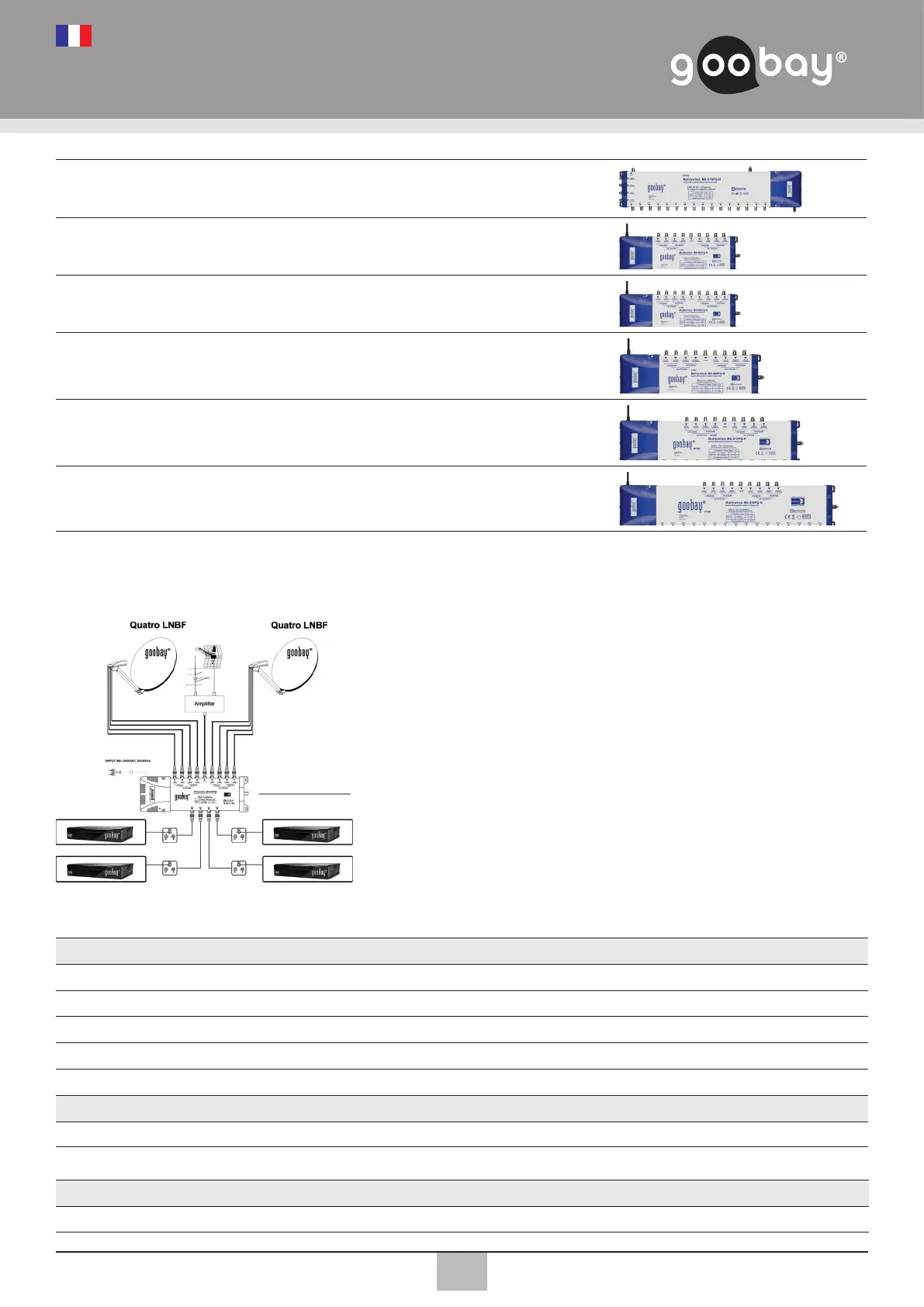

MODE D‘EMPLOI POUR SAT MULTISWITCHES
MS-506PQ-N/508PQ-N/512PQ-N/516PQ-N ET
MS-904PQ-N/906PQ-N/908PQ-N/912PQ-N/916PQ-N
67263 SAT Multiswitch 5/16 MS-516PQ-N
67264 SAT Multiswitch 9/04 MS-904PQ-N
67265 SAT Multiswitch 9/06 MS-906PQ-N
67266 SAT Multiswitch 9/08 MS-908PQ-N
67267 SAT Multiswitch 9/12 MS-912PQ-N
67268 SAT Multiswitch 9/16 MS-916PQ-N
4 Connexion et Fonctionnement
4.1 Connexion
Antenne parabolique - LNB -
Entrées
Échouage
Récepteur - Sorties
1. Relier l‘appareil à la terre.
2. Connecter les périphériques
d‘entrée (LNB).
3. Connecter les périphériques de
sortie (Récepteurs).
4. Relier l‘appareil au secteur.
Scmas de branchement
4.2 Cartographie des descriptions des branchements possibles
Entes Description Bande
LNB-D = Haute/H (18/22 kHz) Horizontale bande haute
LNB-C = Haute/V (13/22 kHz) Verticale bande haute
LNB-B = Basse/H (18 V / 0 Hz) Horizontales bande basse
LNB-A = Basse/V (13 V / 0 Hz) Verticale bande basse
TERR. = antenne terrestre
Entes Description
REC 1–X = Sorties vers les récepteurs
4.3 Scma de branchement
Polari Bande Raccourci Tension
Polarité horizontale bande haute H / H 18V + 22kHz
