Goobay MS-506PQ-N User Manual

7

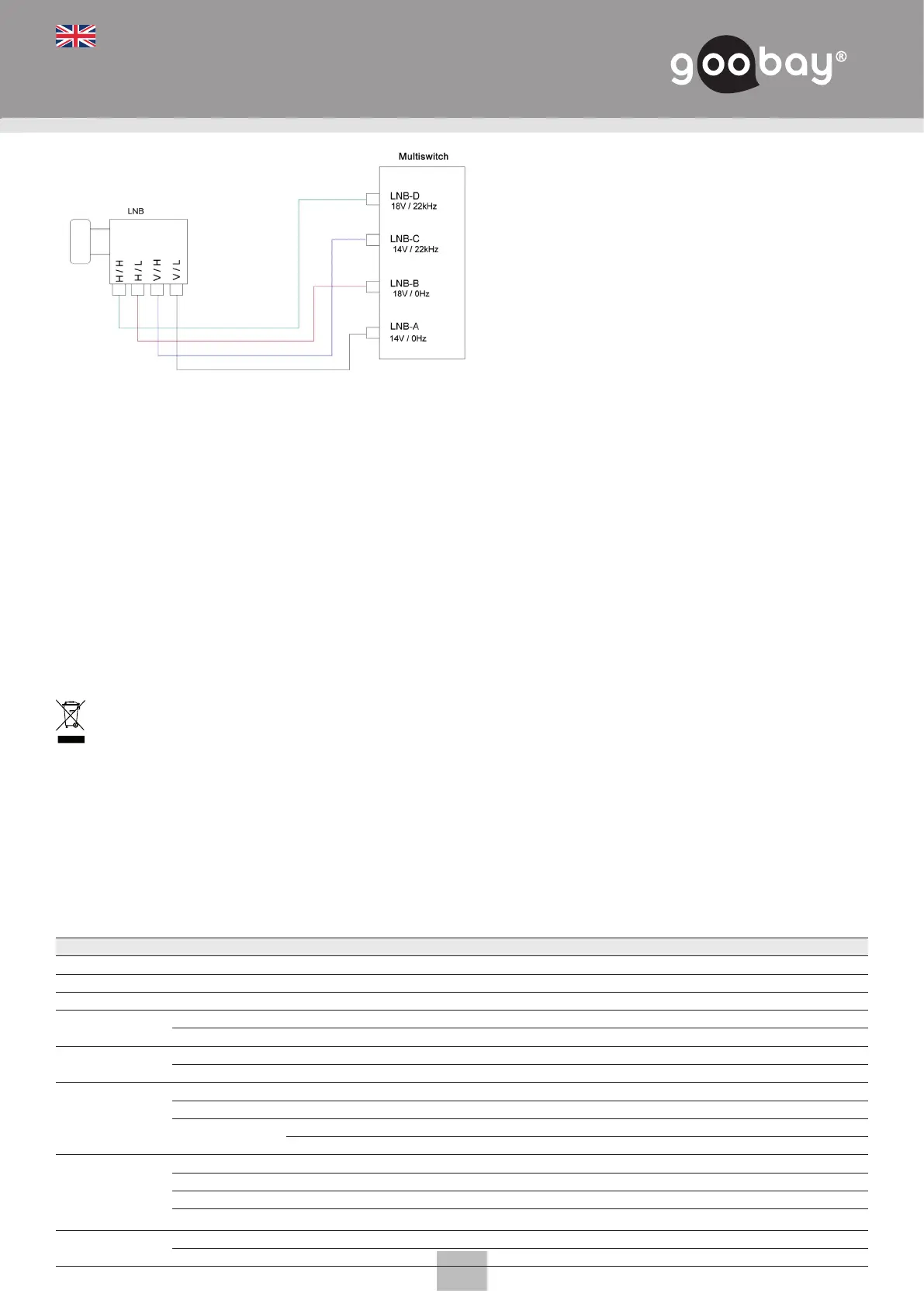

Labeling Comparison:
13-14V/0Hz vertical / low (V/L)
equates low / vertical (L/V)
17-18V/0Hz horizontal / low (H/L)
equates low / horizontal (L/H)
13-14V/22kHz vertical / high (V/H)
equates high / vertical (H/V)
17-18V/22kHz horizontal / high (H/H)
equates high / horizontal (H/H)
5 Operating Instructions
• Adjust your dish exactly! This is important for interference-free receiving.
• Connect terminators to inputs and outputs which are not in use according to EN 50083-2.
• Mind the maximum output levels (Specications).
• Mind the rules and regulations regarding grounding and potential bonding (EN 50083-1, EN 60728-11).
6 Warranty and Responsibility
• As the manufacturer has no inuence on installation, warranty only applies to the product itself.
• The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance.
• Do not alter or modify the product or its accessories.
• Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss of guarantee, and
non-liability.
• We reserve our right for misprints and changes of the device, packing, or user`s manual.
7 Disposal Instructions
EU members only:
According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers
waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous
substances can pollute our environment.
You as a consumer are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public
collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in
the user`s manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal
of used devices you achieve an important share to environmental protection.
WEEE Directive: 2012/19/EU
WEEE No: 82898622
8Specications
Article 67260 67261 67262 67263
Frequency 47-2150 MHz
Inputs 4 SAT + 1 TERR
Outputs 6 8 12 16
Insertion loss
Terr 47-862MHz -1 dB 0 dB -1 dB
Sat 47-2150MHz -5 dB 6 dB -5 dB
Linearity
Terr 47-862MHz ±2 dB
Sat 47-2150MHz ±2 dB
Isolation
Terr / Sat 30 dB
Sat / Terr 30 dB
Cross polarity H/V (Sat)
Out - Out
Terr 47-62MHz 28 dB
Sat 47-150MHz 30 dB
Return loss
Terr Input 47-862MHz 12 dB
Terr Output 47-862MHz 10 dB 9 dB 10 dB 10 dB
Sat input 950-2150MHz 11 dB 10 dB
Sat Output 950-2150MHz 10 dB 9 dB 10 dB 10 dB
Output level
Sat EN 50083-3 101 dBμV 100 dBμV
Terr EN 50083-5 85 dBμV 83 dBμV
EN
USER‘S MANUAL FOR SAT MULTISWITCHES
MS-506PQ-N/508PQ-N/512PQ-N/516PQ-N AND
MS-904PQ-N/906PQ-N/908PQ-N/912PQ-N/916PQ-N
