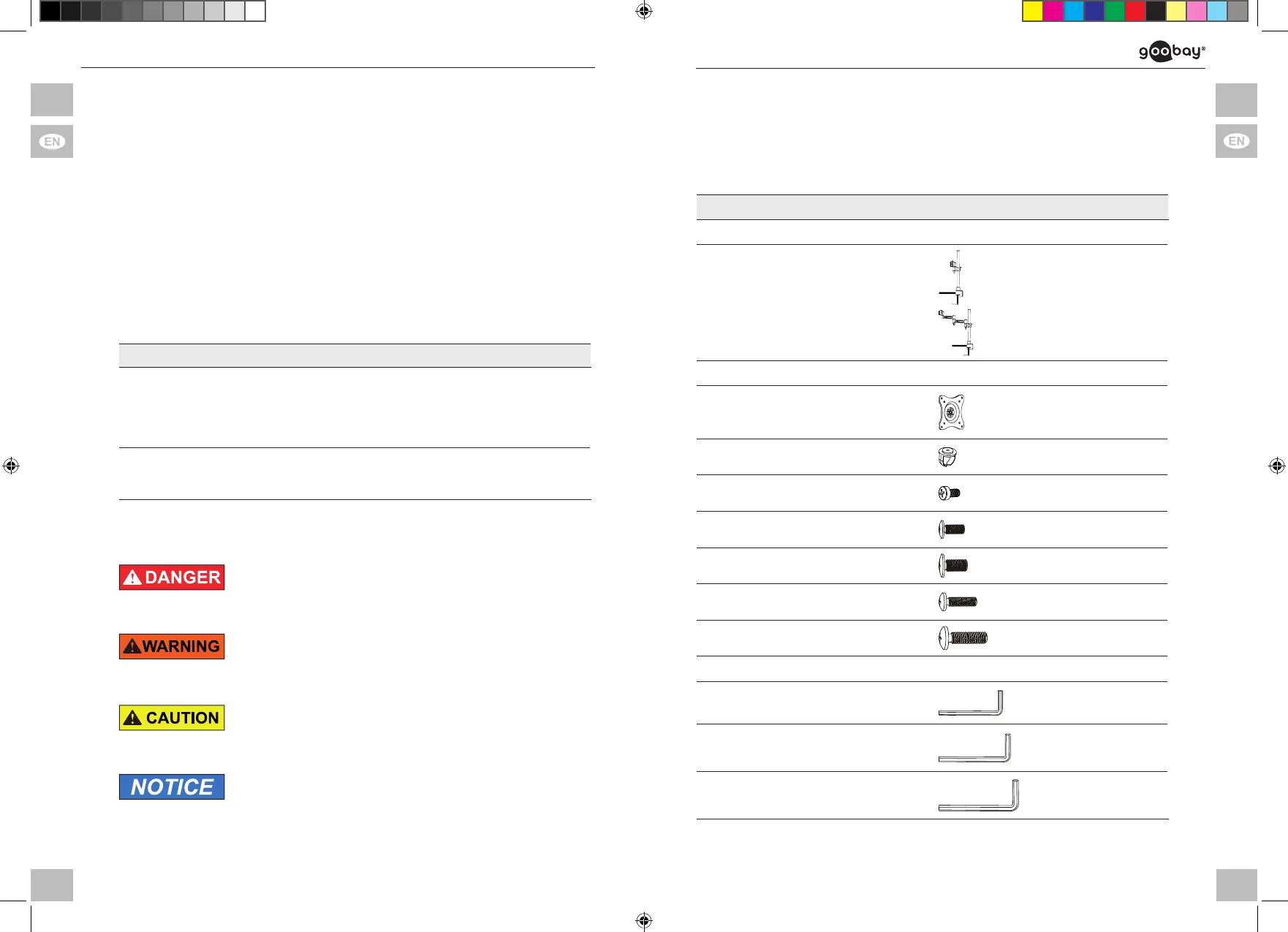

Goobay ScreenFlex User Manual

User‘s Manual
18 19
 >> Donotmodifyoraltereithertheproductortheaccessories!
Risk of material damage by inappropriate ambient conditions
Incorrect ambient conditions can damage things.
>> Avoid extreme conditions, such as extreme heat, coldness, humidity or
direct exposure to the sun, as well as vibrations and mechanical pressure.
>> Keep enough space around product and to the whole system to ensure
proper ventilation and mobility.
 >> Mountonlytosufcientlystableandthicksurfaces.
>> Take protective measures against pressure points..
>> Regularly check the stability of the system.
1.2 User Groups
Caused to different risk levels and hazard potentials some working steps only
may be done by trained specialists.
Working step User Group
Installing,
Uninstalling,
Aligning, Care,
Storage, Trans-
port, Disposal
Consumers and users with basical mechanical knowledge
can do this work.
>> Protect children and people with mental and motoral
impairmentsfromusingtheproduct!
Maintenance,
Repairing
Trained specialists only
>> special safety measures, knowledge and tools are nec-
essary!
Ta b . 13 : User Groups
1.3 Warning Levels
Warnings against hazards that will result directly in serious injuries or death
in case of non-observance.
Warnings against hazards that may result in serious injuries or death in case
of nonobservance.
Warnings against hazards that may result in injuries in case of non-obser-
vance.
Warnings against hazards that may result in material damage in case of
non-observance.
2 Description and Function
YourTVdeskmountismadeformountingyouratscreentostableand
horizontal work surfaces. It is tiltable and swivelable.
Model 63497 has a greater variability in the depth setting.
2.1 Scope of Delivery
Part Figure Symbol Amount
Desk mounting
Pole assembly
63496
or
63497
A 1
Flat screen mounting
VESA Plate B 1
Cable guide
C 1
M4x10
M 1
M4x10
M-A 4
M5x10
M-B 4
M4x14
M-C 4
M5x14
M-D 4
Tools
Allen key 3mm D 1
Allen key 4mm
E 1
Allen key 5mm
F 1
Ta b . 14 : Scope of Delivery
