Viper Owner's Manual 49
wraps around the spreader and pulls it up. If the arms are out of alignment this can case the
arm to collapse and the mast to break.
Lock rings, springs, clips and all similar fittings should be taped to prevent them catching and
causing damage or injury.
5 Systems (Diagrams)
Some of the systems on your boat are extremely complex and others are quite simple. Here we have
included diagrams of all the systems so that should you need to dismantle it, rebuilding it will be
easy.

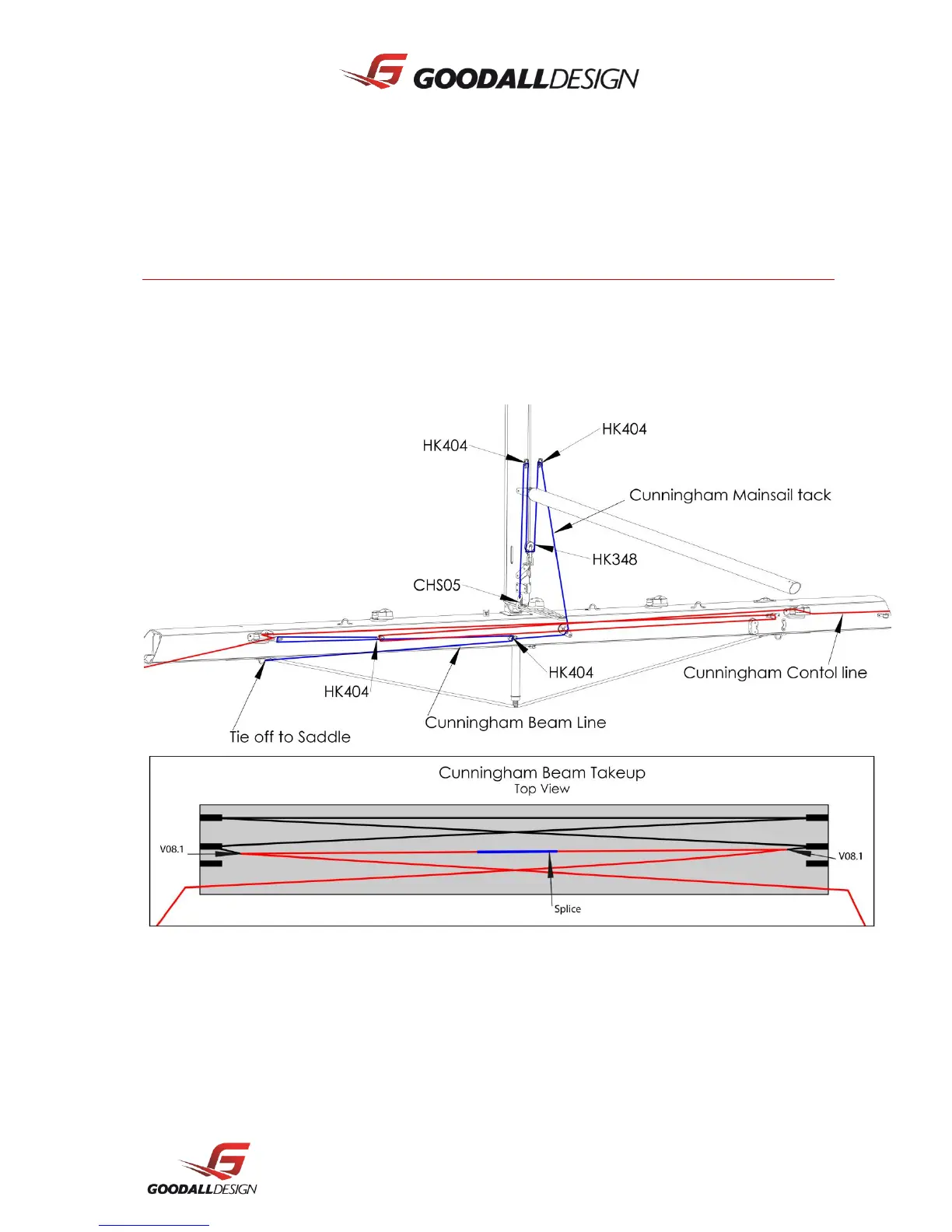

5.1 Cunningham
5.2 Jib line Retrieval into Front Beam
This is a standard system and will come already threaded up. There may come a time when you have
to replace the shock cord or re-thread it. Note that the turning pulleys are permanently attached to
the beam reinforcing block. See parts list for shock cord length.
