Power Supply
Copyright © 2020 Shenzhen Goodix Technology Co., Ltd. 6
5 Power Supply
The GR5515 SK Board provides three power supply modes: power supply via USB connection, power supply from
external sources and from lithium battery.
Power supply via USB
connection
Power supply from
external sources

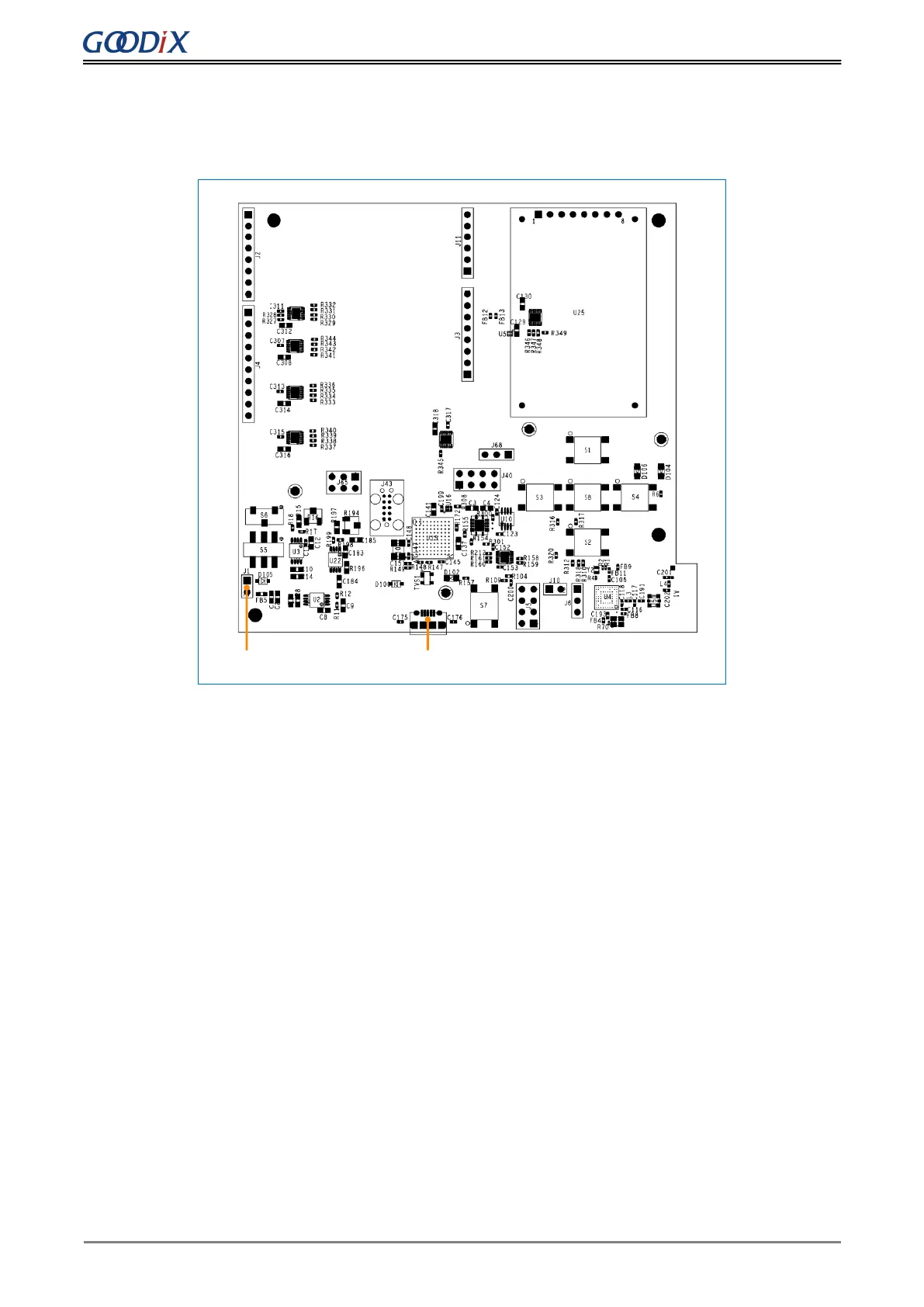

Figure 5-1 Power supply (top view)
