6 Arduino Uno Shield Connectors
The GR5515 SK Board provides standard Arduino Uno Shield Connectors, and the connector locations on the SK
printed circuit board (PCB) comply with Arduino standards. You can connect peripherals, such as G-sensor and
heart rate sensor, through Arduino Uno Shield Connectors.

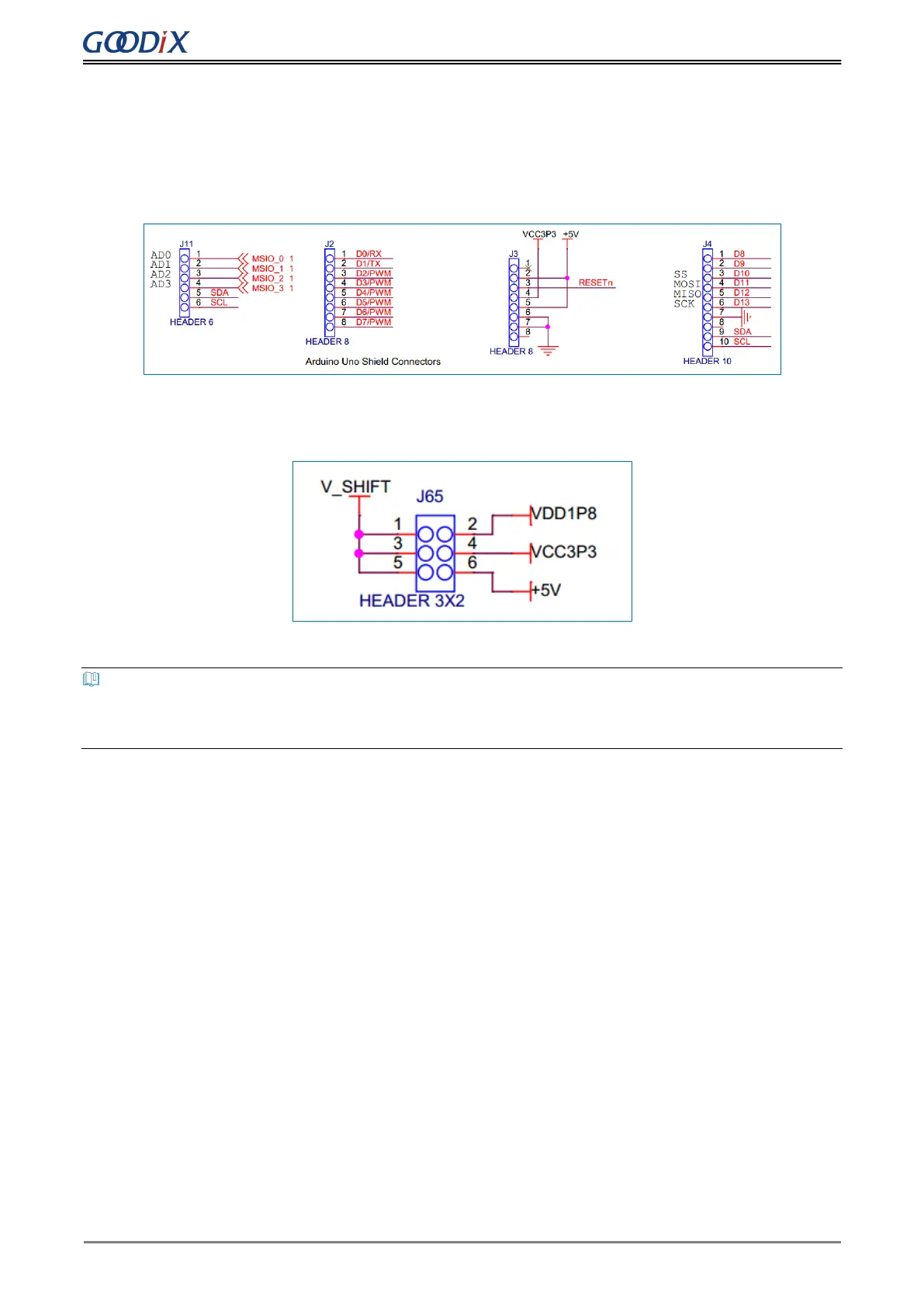

Figure 6-1 Arduino Uno Shield Connectors on GR5515 SK Board
The I/O voltage of Arduino Uno Shield Connectors can be set to 1.8 V, 3.3 V, or 5 V by using a jumper cap on J65.
Figure 6-2 Voltage options of Arduino Uno Shield Connectors
Note:
GPIO6 and GPIO7 are shared by D0/RX, D1/TX, and LCD display interface in Time-Division Multiplexing (TDM). For
more information about GR5515 SK Board circuit, see the schematic diagram GR5515-SK-BASIC-RevC.
