Goodwe GW10KAU-DT Quick Installation Guide

14
2
2
3
4
1
5
6
7
3
M2
0.3~0.4N·m
4
3
1
COM
2
4
5
6.5mm
25mm
1
RS485/Meter (COM2)
1: RS485 B
2: RS485 B
3: RS485 A
4: RS485 A
5: Meter +
6: Meter -
DRED (COM3)
1: DRM1/5
2: DRM2/6
3: DRM3/7
4: DRM4/8
5: REFGen
6: Com/DRM0
Warning
Donotremovethepre-installedterminalwhen
theDREDfunctionisnotapplied.Installthe
terminalbacktotheinverterwhentheDRED
functionisnottobeusedforthemoment.The
invertercannotbegrid-tiediftheDREDterminal
isremoved.
RS485/
Meter
DRED

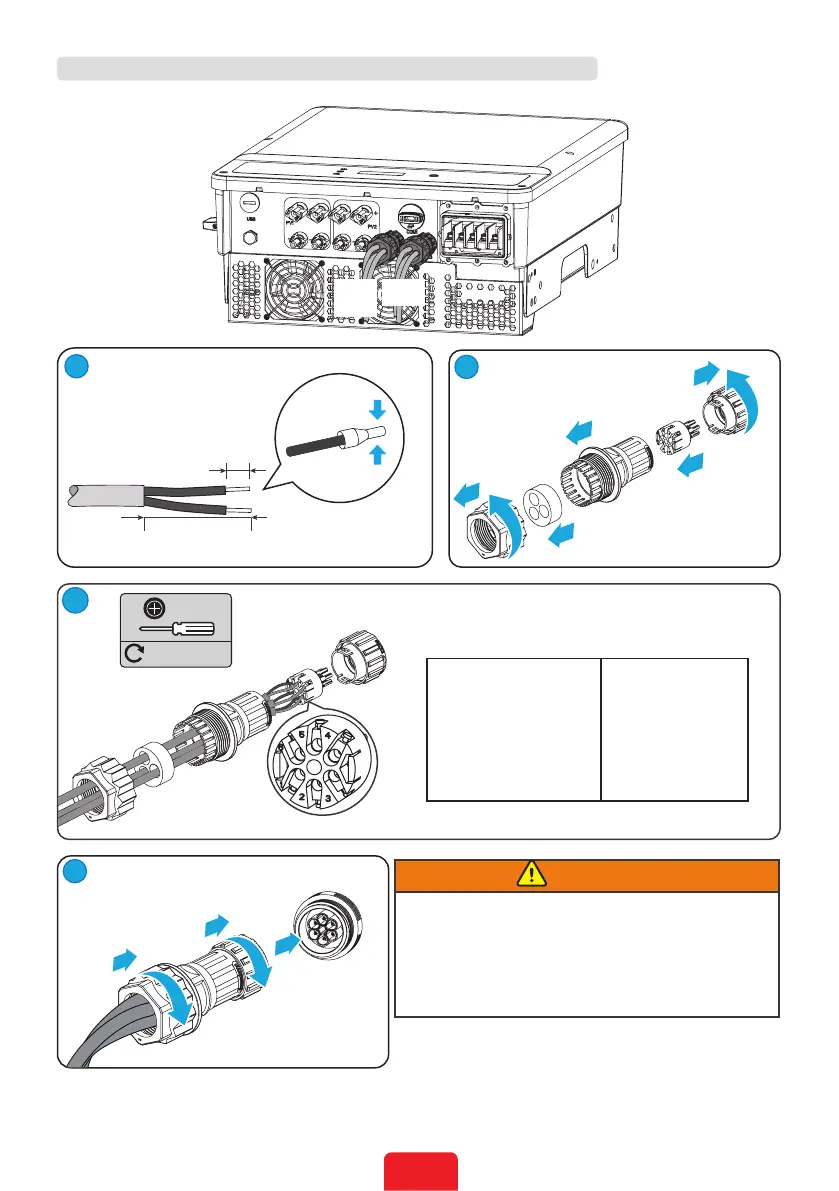

Connecting the Communication Cable (RS485, Meter, and DRED)

Goodwe GW10KAU-DT Specifications

General

Brand	Goodwe
Model	GW10KAU-DT
Category	Inverter
Language	English
