Goodwe GW10KN-ET User Manual

10
03 Product Introduction User Manual V1.1-2022-12-20
Smart
meter
Smart
meter

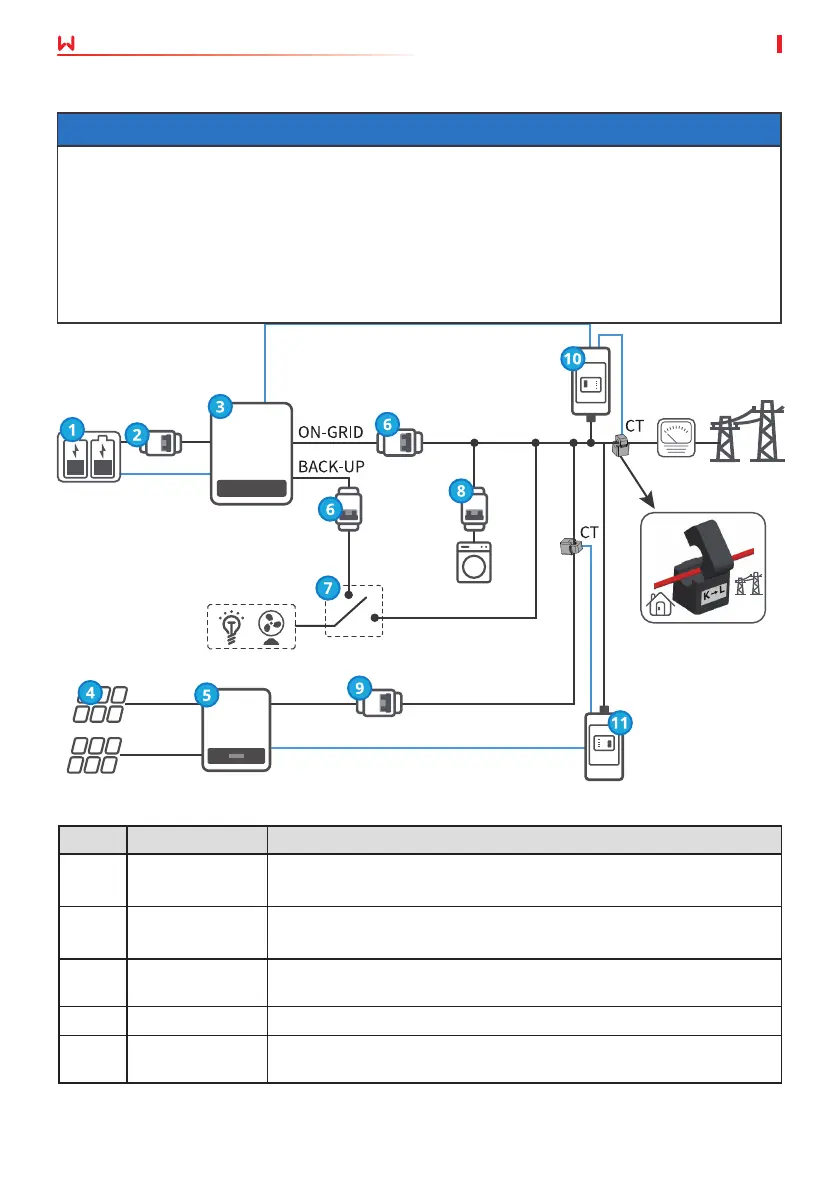

Self Consumption System (AC-Coupled Scenario)
Utility
meter
Utility grid
PV string
Battery
Battery
breaker
AC circuit
breaker
AC circuit
breaker
AC circuit breaker
SPDT (Single Pole,
Double Throw) switch
AC-
Coupled
inverter
Household
loads
BACK-UP loads
Grid-
Tied PV
inverter
NOTICE
• Before enabling the power limit function, ensure that the AC-Coupled inverter or hybrid
inverter supports power limit.
• Enable the power limit function if GoodWe AC-Coupled inverter or grid-tied PV inverter is
applied in the PV system. Complete the power limit settings as required if a grid-tied PV
inverter from other manufacturers is applied.
• When power limit function is enabled, the PV system will purchase 100W power from the
utility grid.
No. Parts Description
1 Battery Select the battery model according to the inverter model and the
approved battery list.
2 Battery breaker Recommended specications: nominal current≥40A, nominal
voltage≥600V.
3 AC-Coupled
Inverter
Supports BT series inverters.
4 PV String PV string is composed of series connected PV panels.
5 Grid-Tied PV
Inverter
Supports grid-tied PV inverters from a third-party.

Goodwe GW10KN-ET Specifications

General

Brand	Goodwe
Model	GW10KN-ET
Category	Inverter
Language	English
