Goodwe MS Series Quick Installation Guide

11

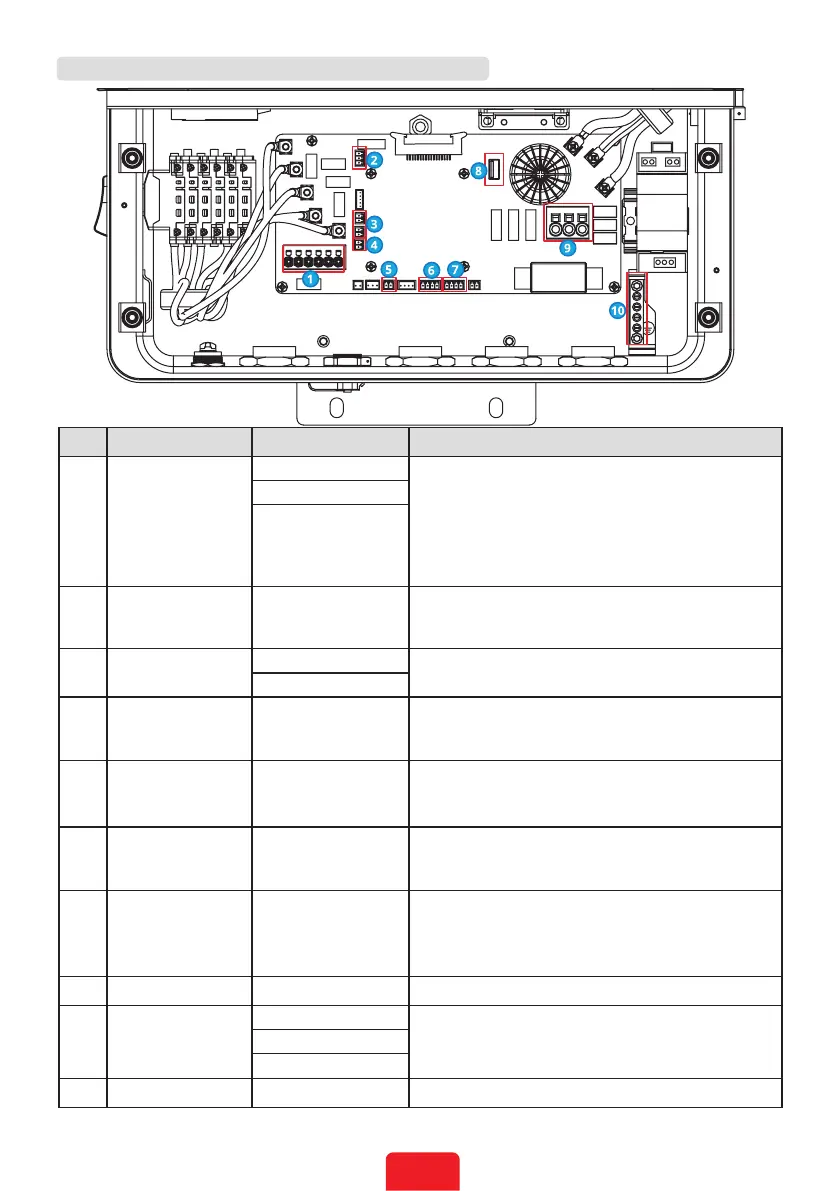

Cable Specications | Especicaciones de los cables
No. Terminal/Port Silkscreen Recommended Cable Speci󽗉cations
1 PV input terminal
PV1+ PV1-
90℃(194°F) copper cables, 12AWG.
PV2+ PV2-
PV3+ PV3- (Only for
GW7700-MS-US30,
GW9600-MS-US30,
GW11K4-MS-US30)
2
Dry contact
communication
terminal
DRY-OUT -
3
CT communication
terminal
CT2
-
CT1
4
Remote Shutdown
communication
terminal
DRM0
Outdoors communication cables that meet
UL2919, CM/CMG(NEC type), or CMH(CSA type)
requirements, 24-16AWG.
5
Power supply
terminal for RSD
module
RSD-12V
Outdoors communication cables that meet
UL2919, CM/CMG(NEC type), or CMH(CSA type)
requirements, 24-16AWG.
6
Meter
communication
terminal
METER
Outdoors communication cables that meet
UL2919, CM/CMG(NEC type), or CMH(CSA type)
requirements, 24-16AWG.
7
Communication
terminal for multi
inverter parallel
connection
485-1
485-2
Outdoors communication cables that meet
UL2919, CM/CMG(NEC type), or CMH(CSA type)
requirements, 24-16AWG.
8 USB port USB -
9 AC cable terminal
GRID-L1
90℃(194°F) copper cables, 6AWG.
GRLD-N
GRID-L2
10 Grouding busbar - 90℃(194°F) copper cables, 10-6AWG.

Goodwe MS Series Specifications

General

Power Range	3-10 kW
MPPT	2
AC Voltage Range	180-280 V
Protection Level	IP65
Cooling Method	Natural convection
Model	MS Series
Rated Output Current	34.8 A
Operating Temperature Range	-25°C to 60°C
Communication	Wi-Fi / Ethernet
