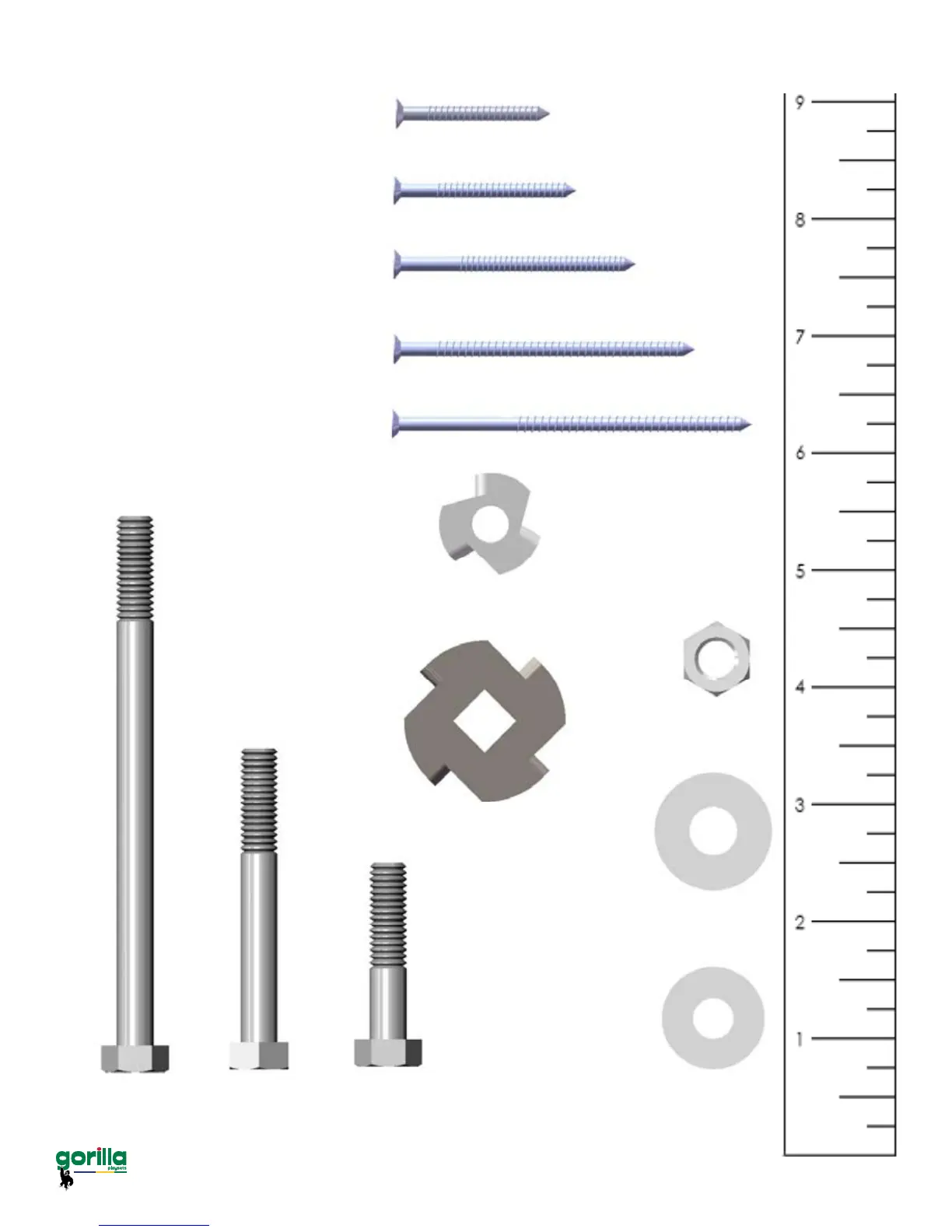

Use the ruler to the right to measure your bolts and screws. Picture views shown
below are 1:1 scale and can be used to match bolt and screw sizes.
#8 x 1 ¼”
Wood Screw
QTY: 10
#8 x 1-½”
Wood Screw
QTY: 104
#8 x 2 ½”
Wood Screw
QTY: 34
5/16” Tee Nut
QTY: 42
3/8” Lock Nut
QTY: 19
3/8” Washer
QTY: 31
5/16” Washer
QTY: 68
Torque Washer
QTY: 17
5/16 x 4 ½”
Hex Bolt
QTY: 32
5/16 x 2 ½”
Hex Bolt
QTY: 2
5/16 x 1 ½”
Hex Bolt
QTY: 8
#8 x 2”
Wood Screw
QTY: 191
#8 x 3”
Wood Screw
QTY: 14
