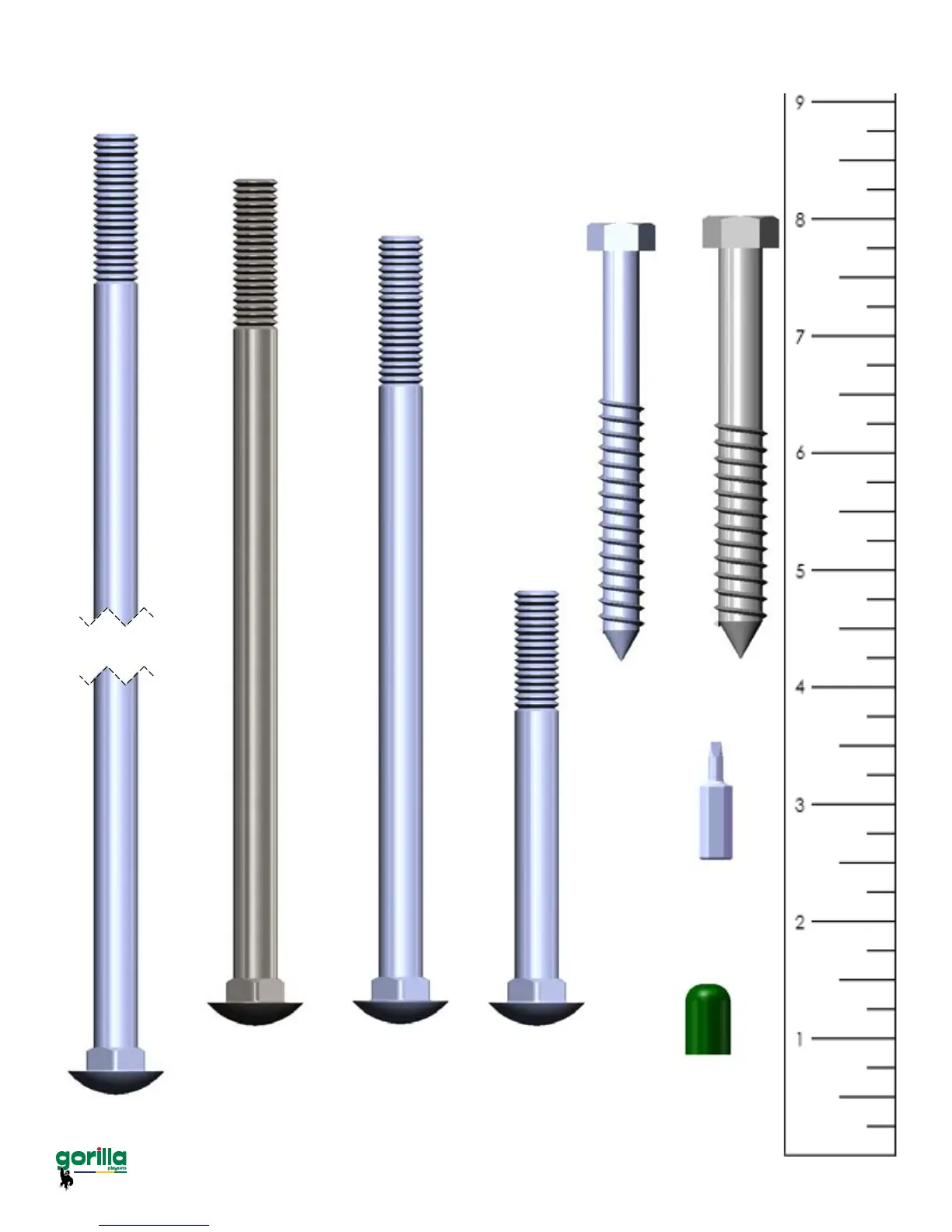

Use the ruler to the right to measure your bolts and screws. Picture views shown
below are 1:1 scale and can be used to match bolt and screw sizes.
3/8 x 3 ½”
Hex Lag
Screw
QTY: 12
5/16 x 3 ½”
Hex Lag Screw
QTY: 26
# 2 Square
Drive Tip
QTY: 1
Plastic Bolt Cap
QTY: 19
3/8 x 9”
Carriage Bolt
QTY: 1
3/8 x 6 ½”
Carriage Bolt
QTY: 4
3/8 x 3 ½”
Carriage Bolt
QTY: 2
3/8 x 7”
Carriage Bolt
QTY: 12
