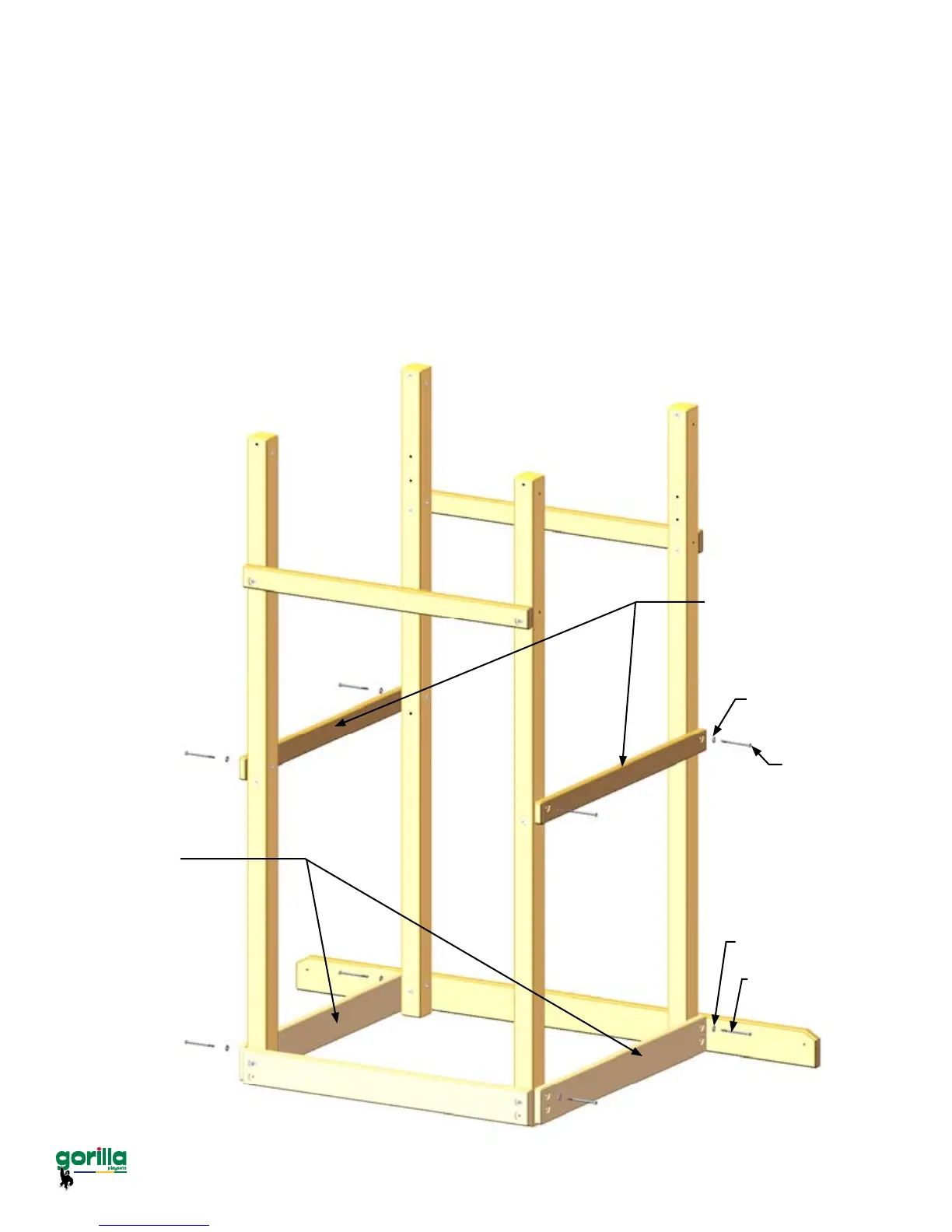

Step 5: Sandbox Boards and Panel Support
1: The 2 x 4 x 47-3/8” Panel Supports (offset holes up) attach to the sides of the front
and rear corner posts with two 5/16” x 4-1/2” hex bolts and two 5/16” washers.
2: Attach the top holes in the 2 x 6 x 47-3/8” End Sandbox Boards (offset holes up) to
the sides of the front and rear corner posts with two 5/16” x 4-1/2” hex bolts and two
5/16” washers. The structure should be able to stand on its own, without any support, at
this stage.
2 x 4 x 47-3/8”
Panel Support
(offset holes up)
2 x 6 x 47-3/8”
End Sandbox Board
(offset holes up)
5/16” x 4-1/2”
Hex Bolt
5/16” Washer
5/16” x 4-1/2”
Hex Bolt
5/16” Washer
Corner Post # 3
(Rear - Left)
Corner Post # 2
(Front - Left)
Corner Post # 1
(Front - Right)
Corner Post # 4
(Rear - Right)
Page 34
To Next Page
