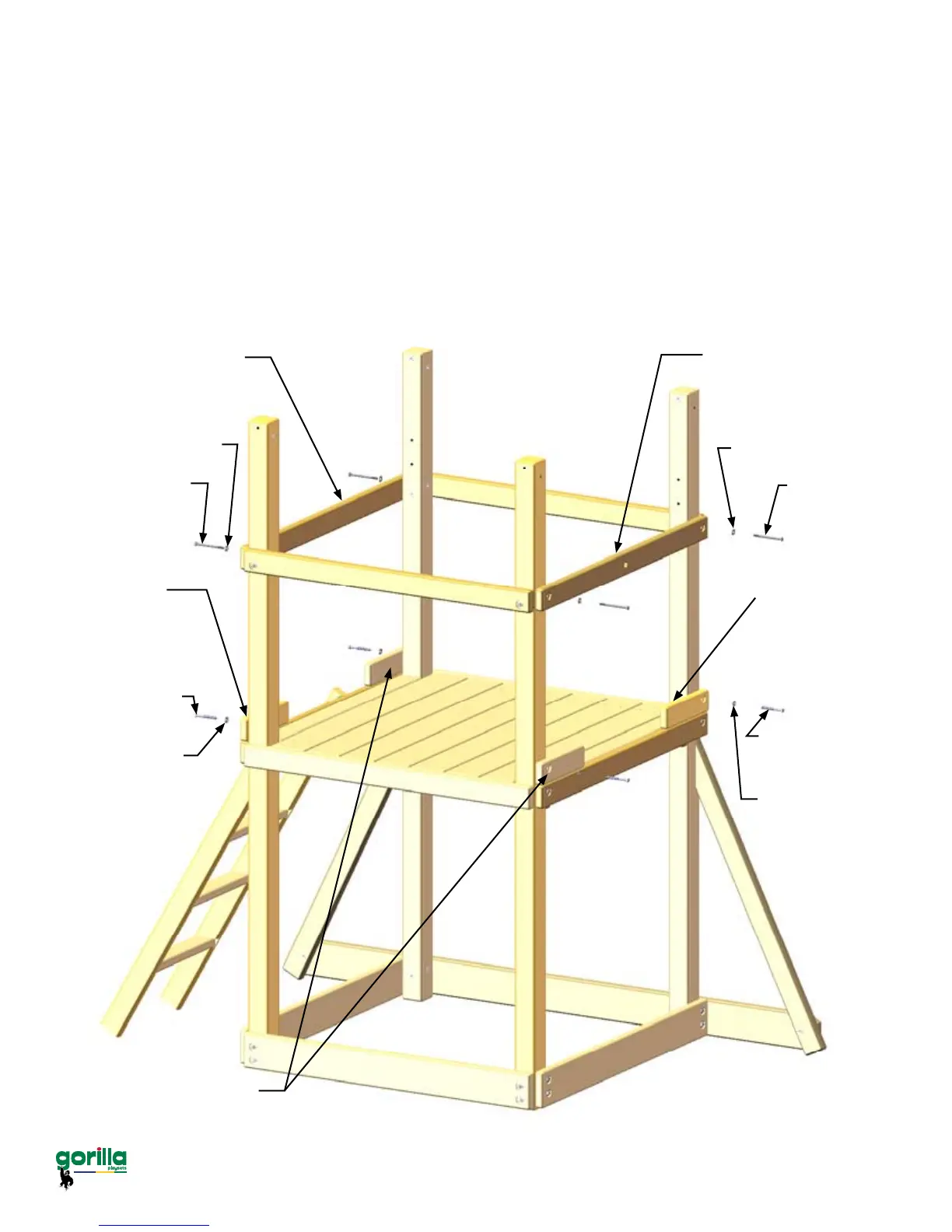

Step 15: Panel and Panel Support Boards
1: Place the 2 x 4 x 12” Bottom Panel Board - Left and 2 x 4 x 12” Bottom Panel Board
- Right on top of the 2 x 4’s as shown below with offset holes up. Attach each Bottom
Panel Board with one 5/16” x 3-1/2” lag screw and 5/16” washer.
2: Place the 2 x 4 x 47-3/8” Panel Support against the left side of the play set with offset
holes up. Attach the Panel Support with two 5/16” x 4-1/2” hex bolts and 5/16” washers.
3: Place the 2 x 4 x 47-3/8” Rock Wall Side Top Panel Board against the right side of the
play set with offset holes up. Attach the Rock Wall Side Top Panel Board with two 5/16”
x 4-1/2” hex bolts and 5/16” washers.
2 x 4 x 12”
Bottom Panel
Board - Left
(offset holes up)
2 x 4 x 12”
Bottom Panel
Board - Right
(offset holes up)
5/16” x 3-1/2”
Lag Screw
5/16” Washer
5/16” x 4-1/2”
Hex Bolt
2 x 4 x 12”
Bottom Panel
Board - Left
(offset holes up)
5/16” x 3-1/2”
Lag Screw
5/16” Washer
5/16” Washer
2 x 4 x 47-3/8”
Panel Support
(offset holes up)
2 x 4 x 47-3/8”
Rock Wall Side Top
Panel Board
*one hole in center
(offset holes up)
5/16” x 4-1/2”
Hex Bolt
5/16” Washer
