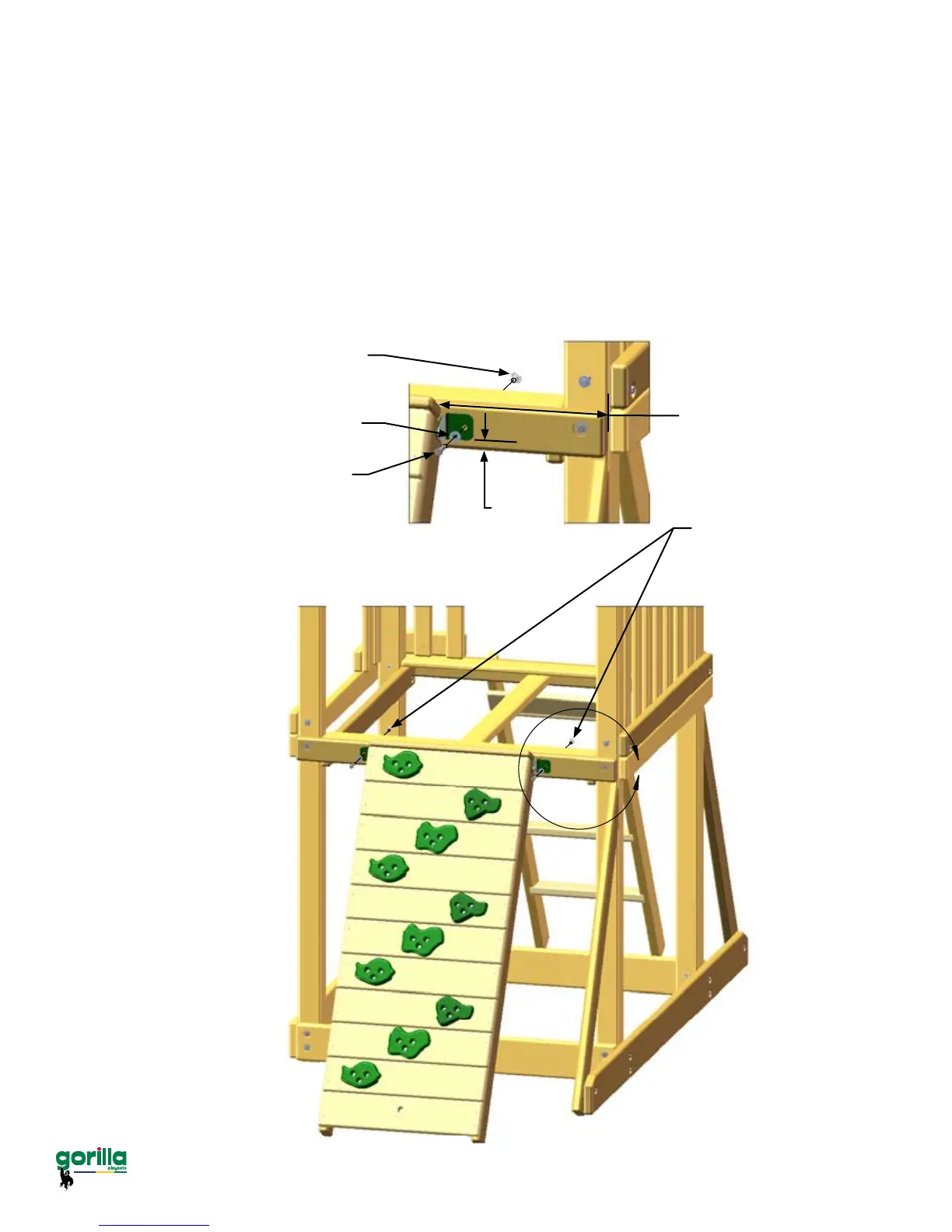

Step 23: Attaching Rock Wall
1: The Rock Wall attaches to the right side of the play set, 11-3/4” from the outside edge
of the rear corner post.
2: Make sure the Rock Wall is level. The bottom edge of the 90
o
brackets should be
3/4” up from the bottom edge of the 2 x 4. Mark the position of the bracket holes on the
2 x 4. Drill 3/8” holes where marked.
3: Insert 5/16” t-nuts in the back of the holes.
4: Attach the 90
o
brackets to the 2 x 4 with two 1-1/2” hex bolts and two 5/16” washers.
5/16” T-Nut
5/16” Washer
5/16” x 1-1/2”
Hex Bolt
11-3/4”
3/4”
Note:
Some boards
removed from
view for clarity.
5/16” T-Nuts
(Put in back side
of hole)
Page 52
To Next Page
