Step 38: Sun Rays

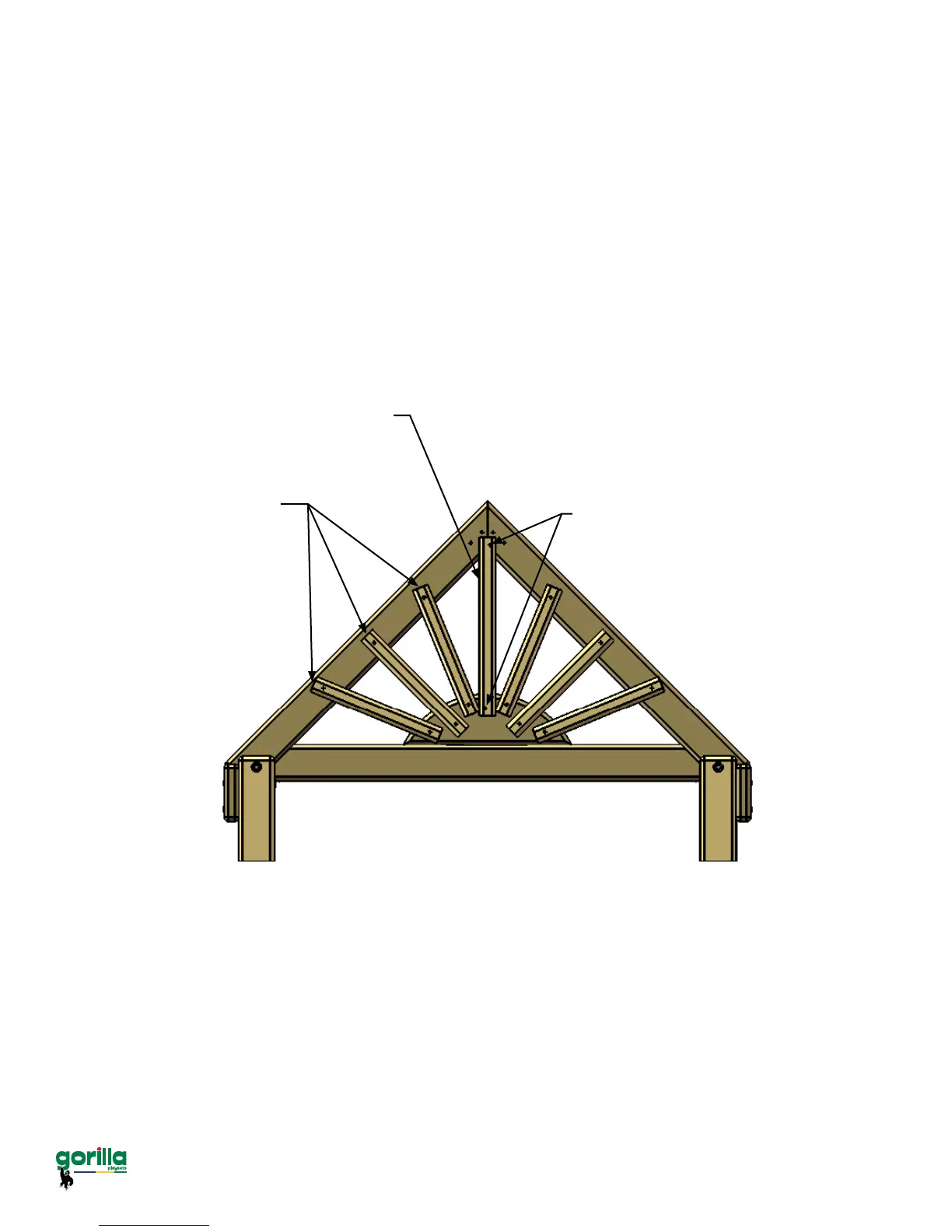

1: All the sun ray pieces get installed to the inside surface of the Roof Supports and Sun
pieces.
2: Place the 5/4 x 2 x 17” Large Ray centered under the peak of the Roof Supports.
Attach the Large Ray to the Roof Support and Sun with two 1-1/2” wood screws.
3: Arrange six 5/4 x 2 x 13” Small Rays on either side of the Large ray (three small rays
per side) as shown below. Attach each Small Ray to the Roof Support and Sun with two
1-1/2” wood screws.
4: Repeat substeps 2 and 3 for the other side of the roof.
5/4 x 2 x 13”
Small Ray
5/4 x 2 x 17”
Large Ray
1-1/2” Wood
Screws
Page 67
