Step 41: Angle Supports

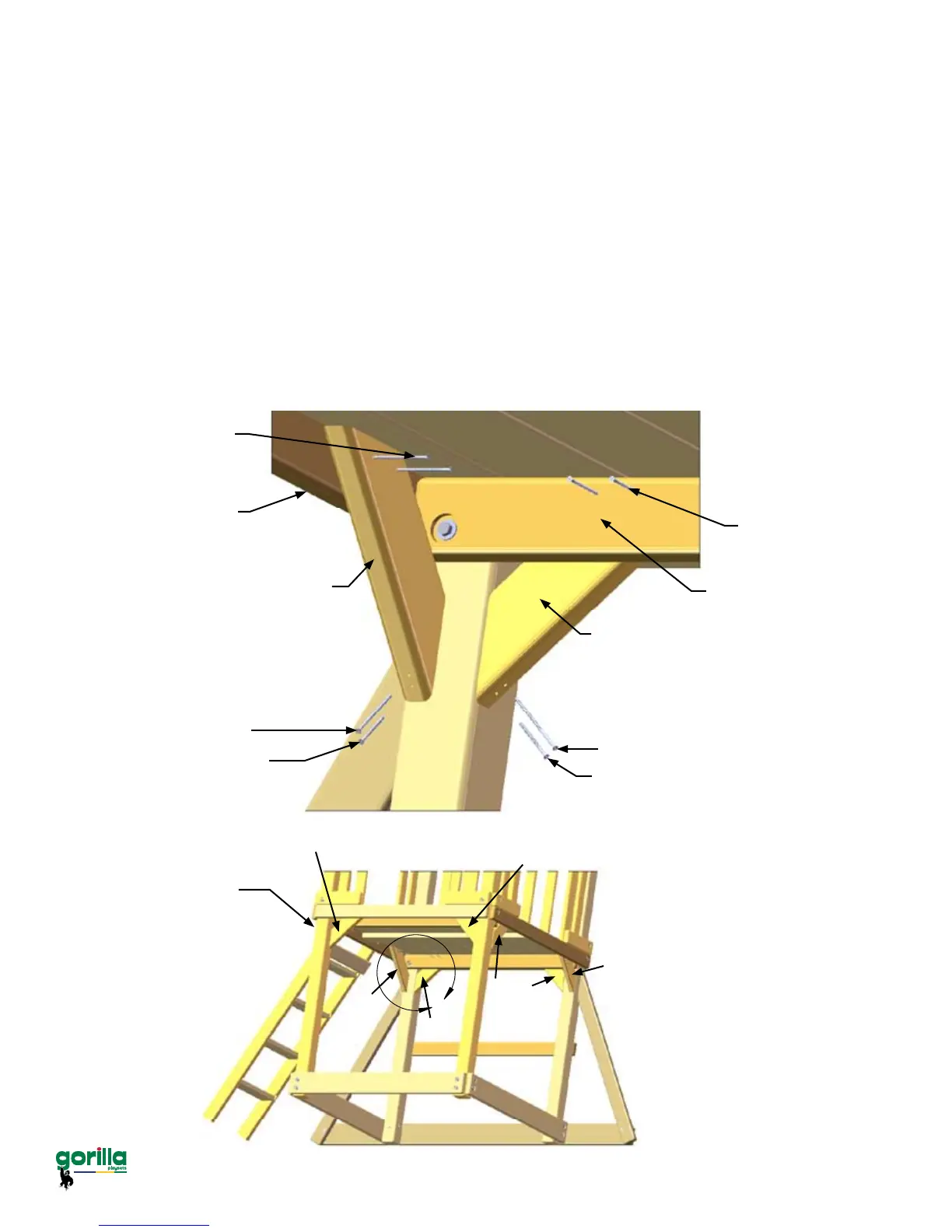

1: Four 2 x 4 x 13” Angle Supports are mounted underneath the deck on the front and back of
the fort. (These are called out by the letter “X”)
2: Attach each Angle Support (X) to the Deck Support with two 2-1/2” wood screws at the top
going through the Deck Support rst and then into the Angle Support (X). Attach the bottom of
the Angle Support (X) to the corner post with one 2” wood screw and one 3” wood screw.
3: Two 2 x 4 x 13” Angle Supports are mounted underneath the deck on each side of the fort.
(These are called out by the letter “Q”)
4: Attach each Angle Support (Q) to the Panel Support with two 2-1/2” wood screws at the top
going through the Angle Support (Q) rst and then into the Panel Support. Attach the bottom of
the Angle Support (Q) to the corner post with one 2” wood screw and one 3” wood screw.
X
X
X
X
Q
Q
Q
Q
(hidden)
X
Q
2-1/2” Wood Screw
2-1/2” Wood Screw
2” Wood Screw
2” Wood Screw
3” Wood Screw
3” Wood Screw
Deck Support
Panel Support
