Grace Q'nique 15 User Manual

10

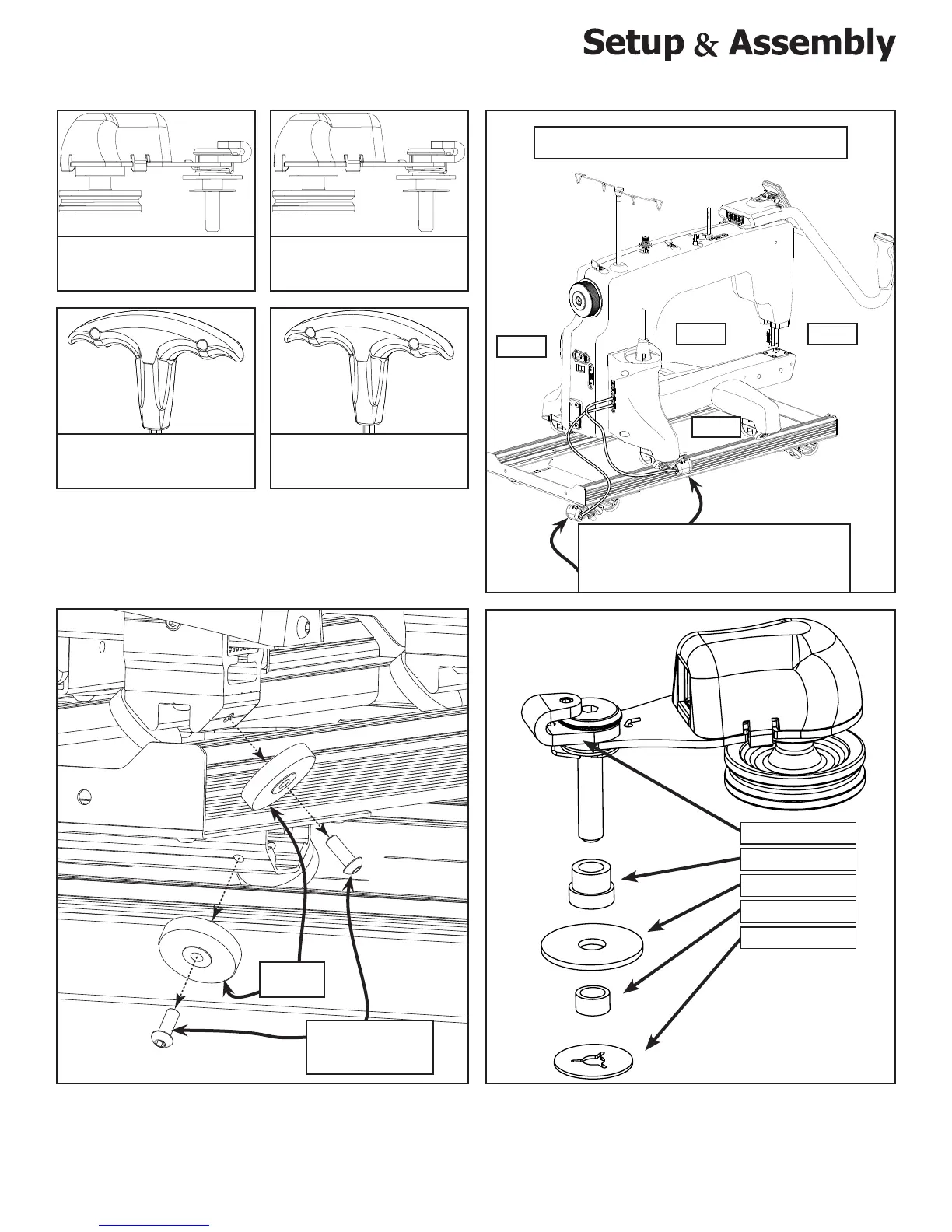

Encoder Assembly
1. Remove the Left Rear Wheel (see orientation
diagram above) from the Quilting Machine
and the bottom carriage using the 4mm Allen
Wrench. Set the Wheels aside for now.
2. Check the Encoders to ensure that they
contain all of the necessary parts and that
the Lock Collar is loose.
4mm T-Handle
Allen Wrench
Upper Encoder
(Silver Spring)
Lower Encoder
(Black Spring)
2mm T-Handle
Allen Wrench
Parts & Tools Needed:
Orientation Diagram
Shoulder Spacer
Washer
Wheel Spacer
Plastic Stop
M6 x 16mm
SBHCS
Wheel
Lock Collar
FrontRight
Left
Rear
The Encoders must be installed
in the left rear position of the
top and bottom carriages
