Grace Q'nique 15 User Manual

12
Encoder Cables

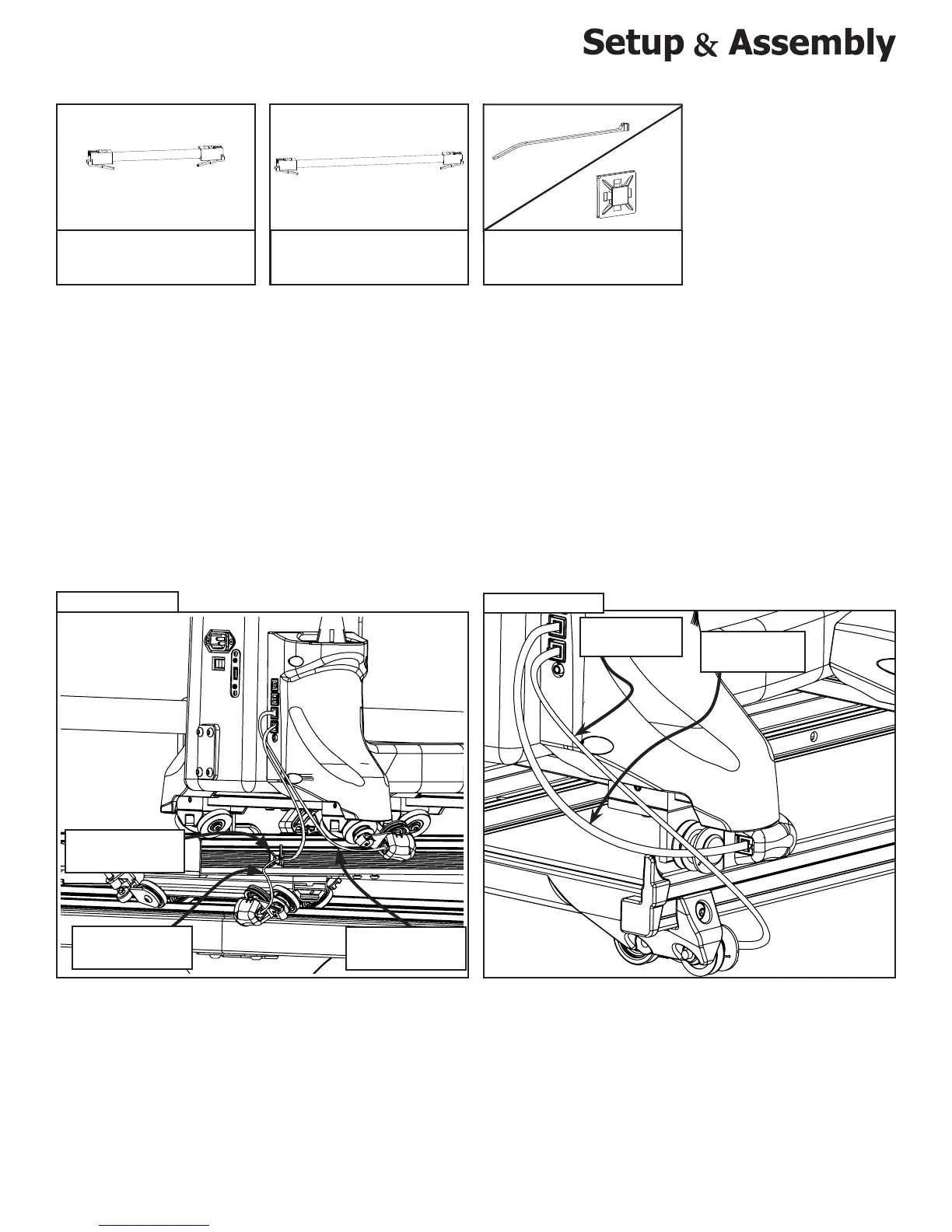

1. Place the bottom plate onto the quilting frame.
2. Place the Quilting Machine onto the bottom plate. Make sure that the Encoder rides on the car-
riage track.
3. Plug in the Encoder Cables from each of the Encoders into the Quilting Machine. The Longer
Cable is used for the Encoder attached to the carriage, while the Shorter Cable is used for the
Encoder attached to the Quilting Machine.
4. Secure the Long Encoder Cable to the side of the Carriage using a Zip Tie and Mount.
Parts & Tools Needed:
Long Encoder
Cable
Short Encoder
Cable
Zip Tie (2)
Zip Tie Mount (2)
Long Encoder
Cable
Short Encoder
Cable
Zip Tie and
Mount
Single Wheel
Dual Wheel
Short Encoder
Cable
Long Encoder
Cable
