Component Identification
6 3A2854G

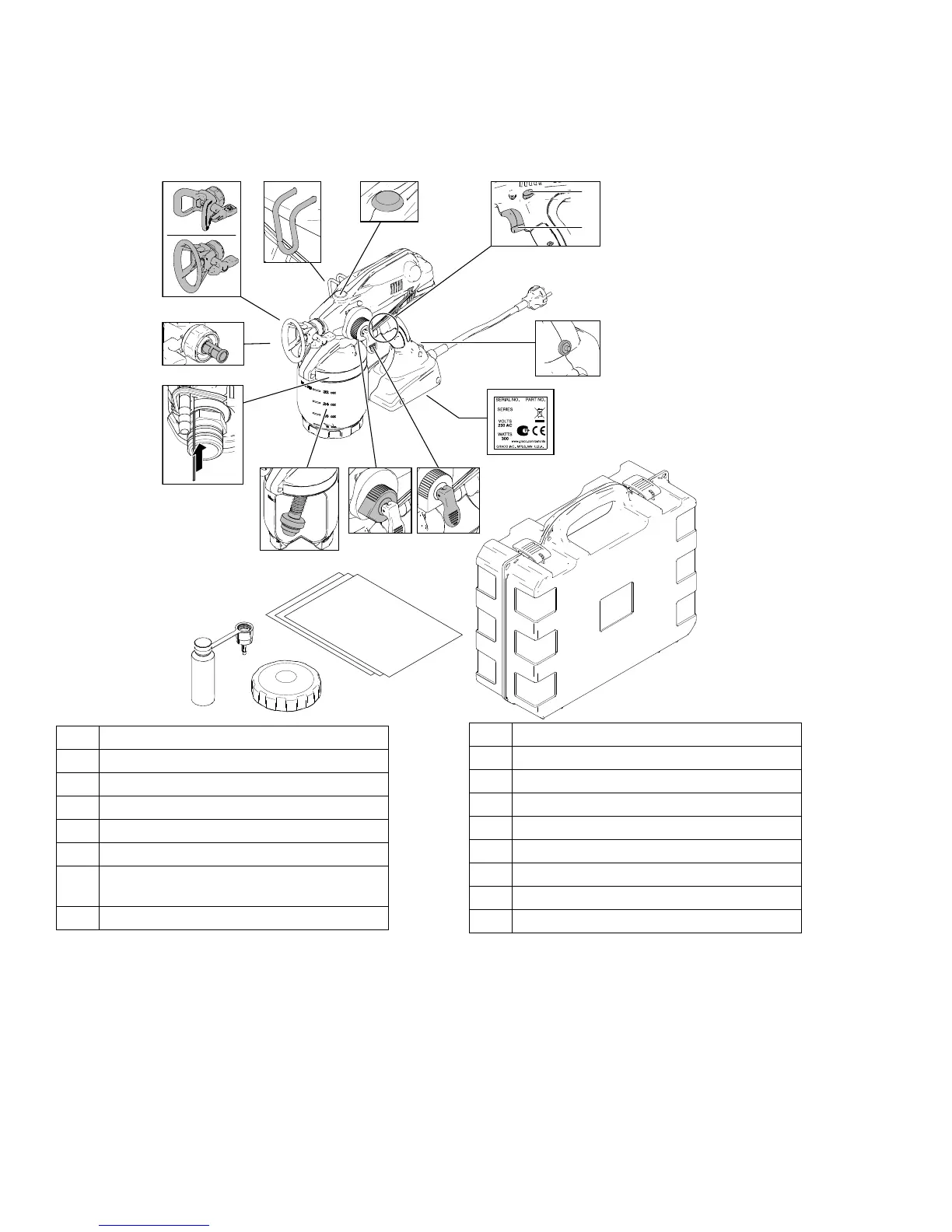

Component Identification
*NOTE: Spray tip filter is reverse-threaded. Turn left (or counter-clockwise) to tighten, turn right (or clockwise) to
loosen.
H
C
*B
F
A
K
D
M
N
J
E
R
P
ti19610a
G
L
S
T
A Spray Tip/Guard Assembly
*B Spray Tip Filter (Reverse Threaded)
C Air Vent Valve
D Flexible Suction Tube
E Pump Armor Storage/Startup Tool
F Material Cup Cover and Seal
G
Pressure Adjustment Knob
(Not available on all units)
H Material Cup Liners (5 included)
J Prime/Spray Valve
K Sprayer Case
L Circuit Reset Button
M Power Cord
N Sprayer Trigger
P Sprayer Trigger Lock
R Outlet Valve Fitting Access
S Sprayer Hook
T Part Number = Model Number
