Cooler Replacement
311283J 27
Installation

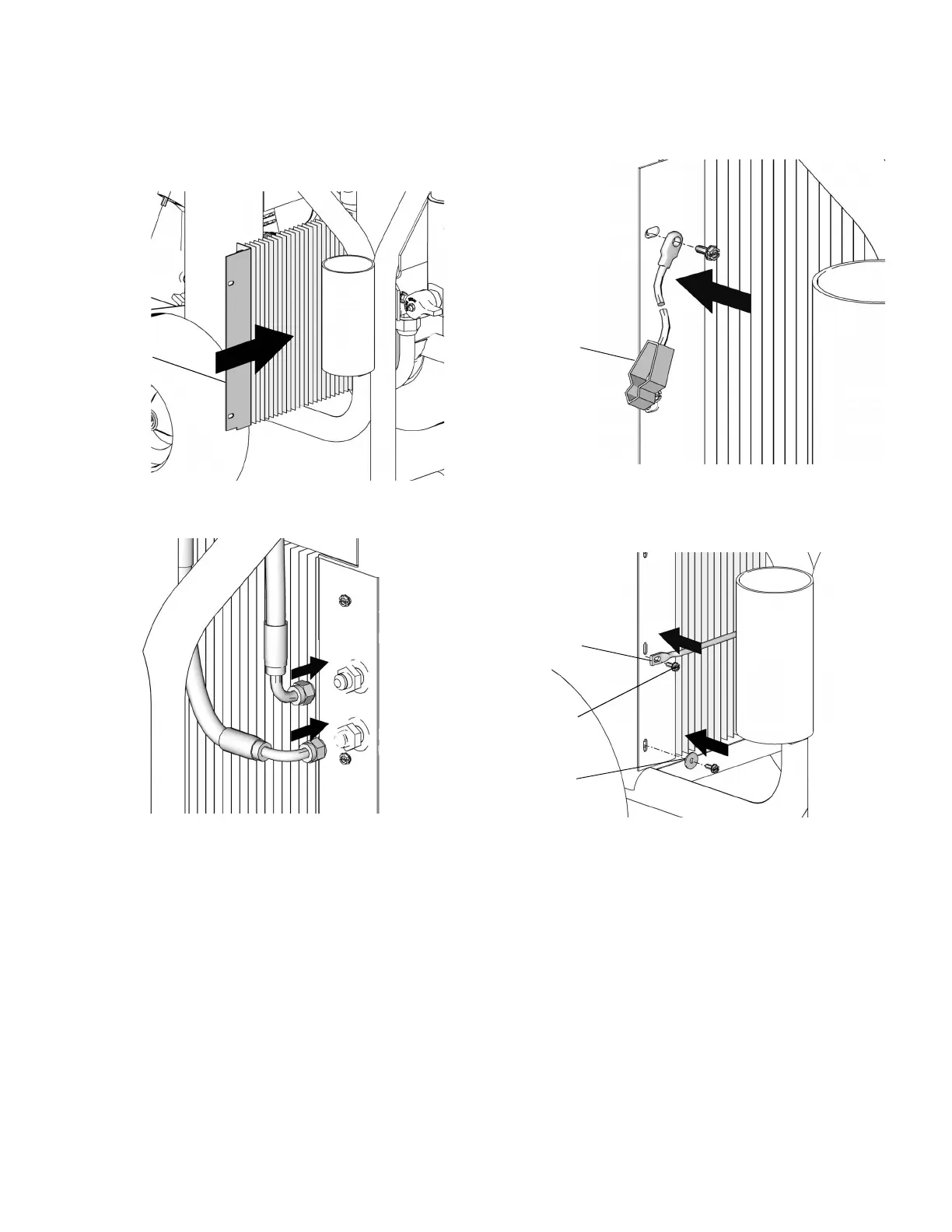

1. Install new coil (72). Replace support bar (77),
washers (78) and screws (79). Tighten screws.
2. Reconnect return line to oil tank and hydraulic line
to cooler. Torque to 225 in-lb (25.4 N•m).
3. Replace ground wire (95) and tighten screw. Torque
to 25-30 in-lbs (2.8 - 3.4 N•m).
4. Replace bar and screws. Torque to 25-30 in-lb
(2.8-3.4 N•m).
72
ti7768
ti7776
95
ti7774
78
79
77
ti7770
