Cooler Replacement
26 311283J
Cooler Replacement

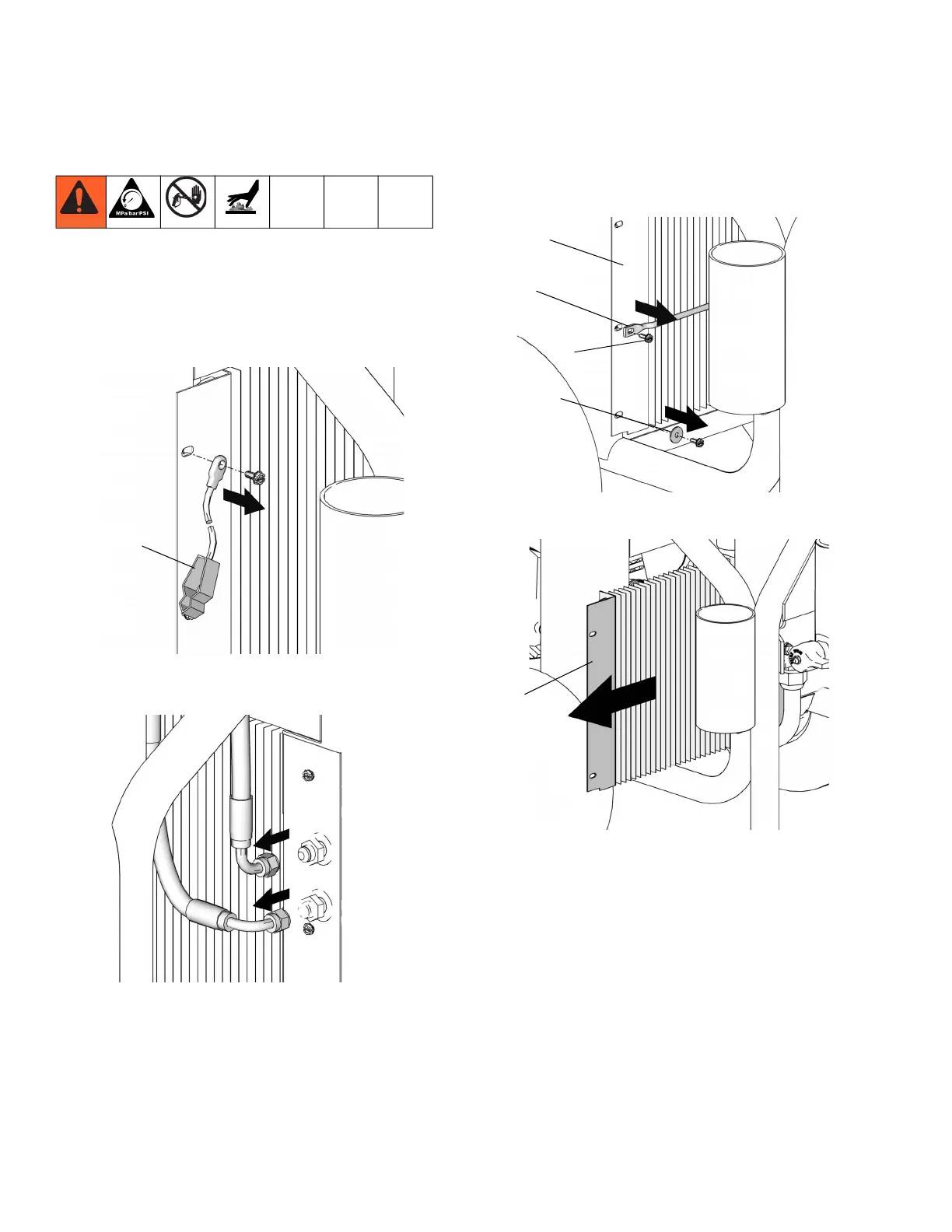

Removal
1. Relieve pressure, page 5.
2. Loosen ground screw and remove ground clamp
(95) from sprayer.
3. Loosen and remove return line to oil tank and
hydraulic line to cooler.
4. Remove screws (79), washers (78) and support bar
(77) from cooling coil (72).
5. Remove coil (72) from sprayer frame.
95
ti7799
ti7802
72
77
79
78
ti7794
72
ti7792
